Info | |
---|---|
order code |
70064826
|
product link | |
EAN |
4026397554182
|
Product Name |

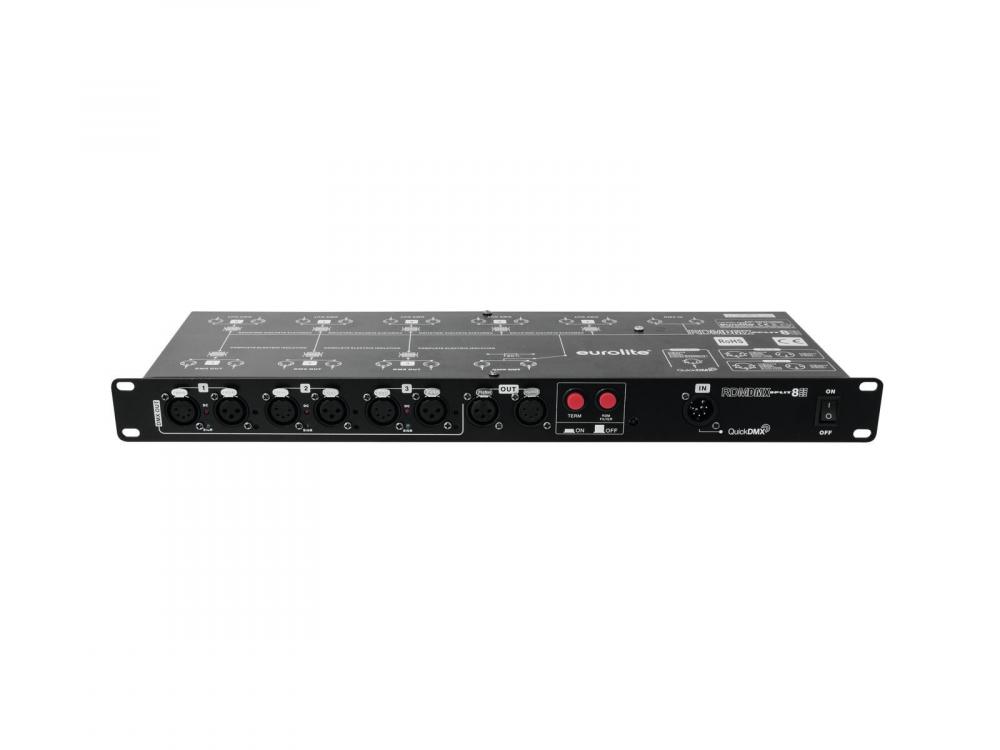

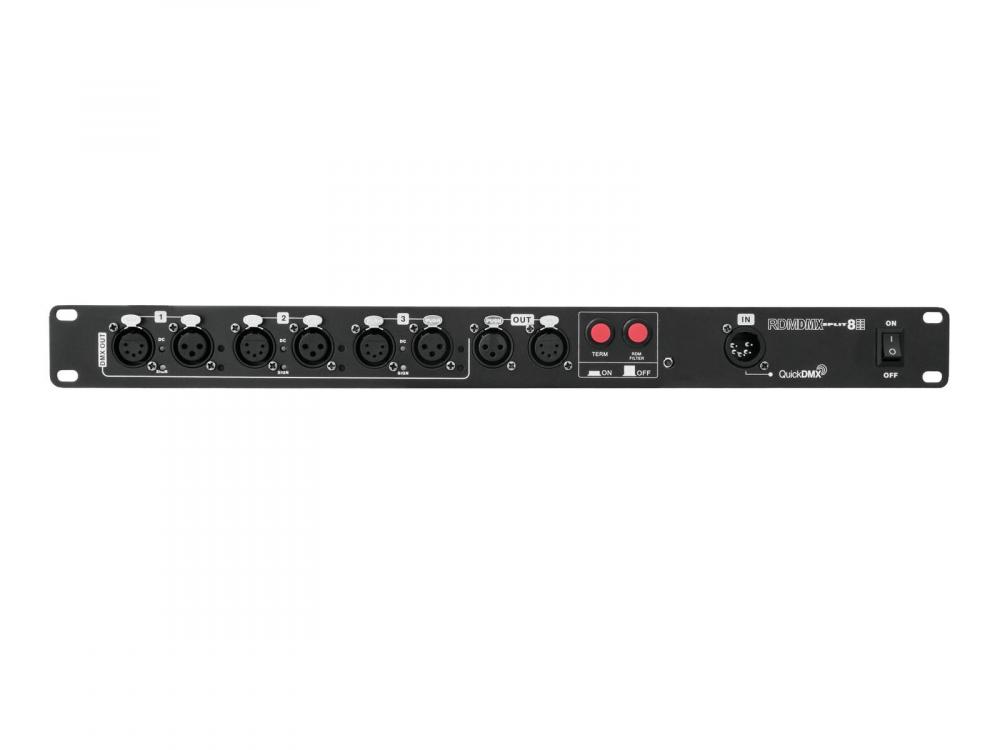

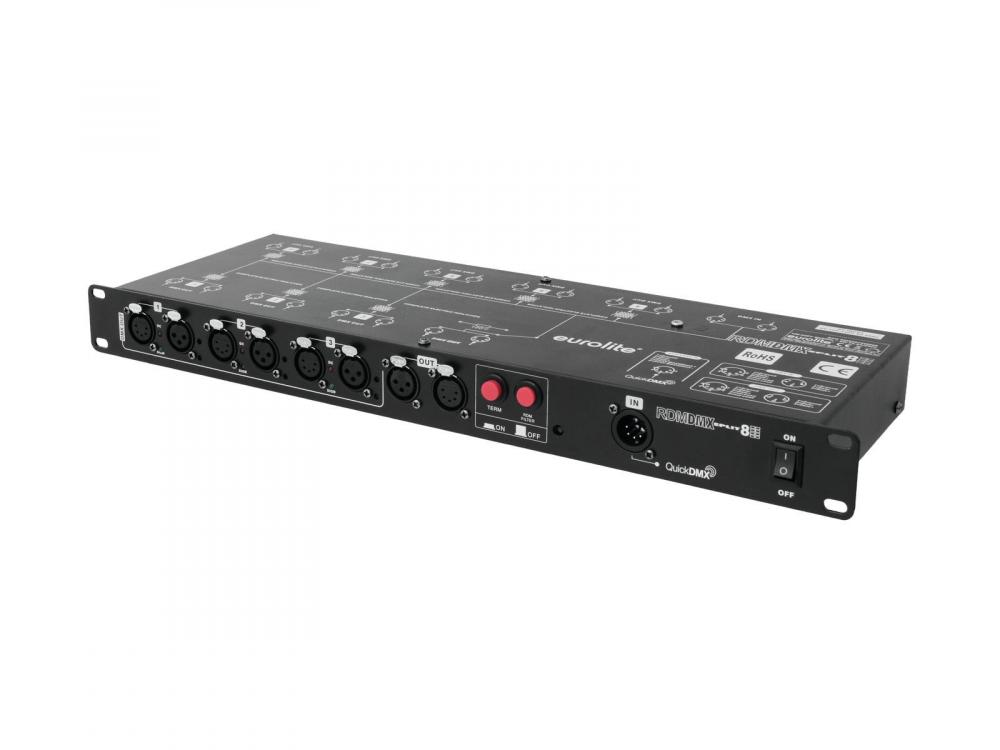

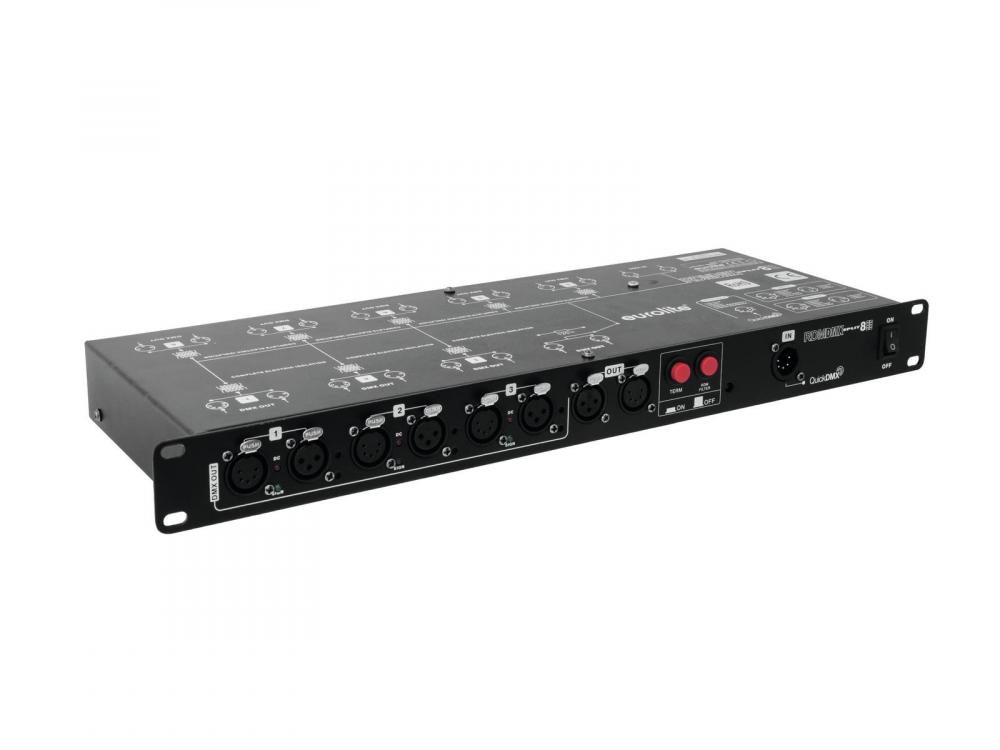

EUROLITE DMX Split 8X RDM Splitter
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX connection: 3-pin and 5-pin XLR QuickDMX connection: 5-pin XLR Dimensions (L x W x H): 483 x 145 x 45 mm Weight: 2,20 kg Power consumption: 5 W Height: 4,45 cm Depth: 14,5 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

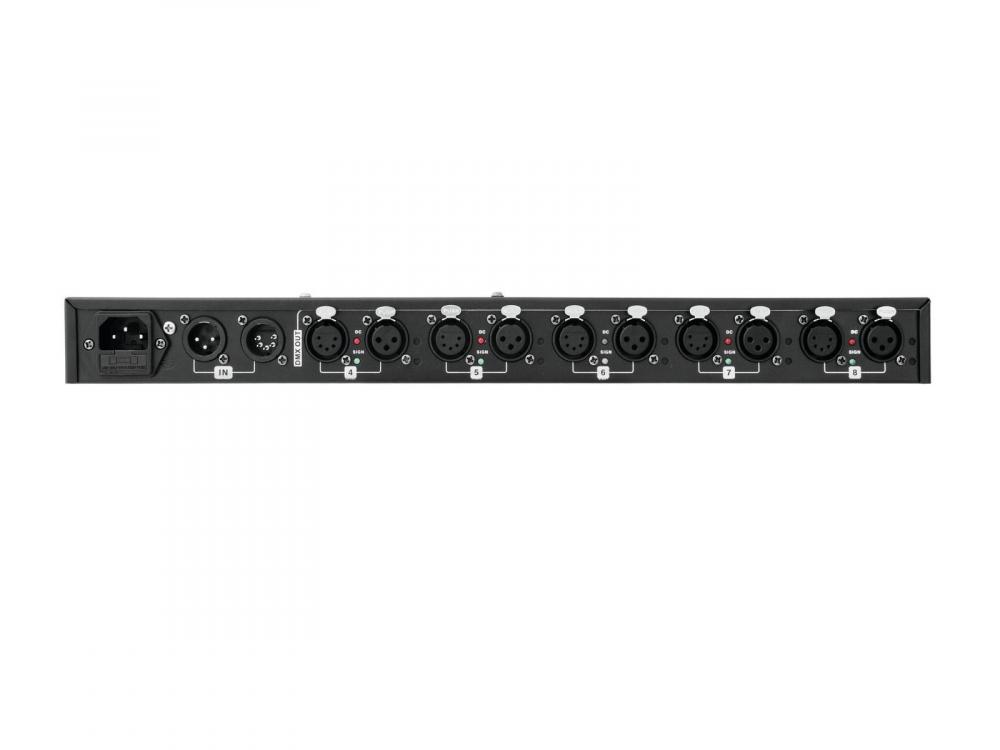

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets -DMX splitter for splitting one DMX input signal to 8 DMX outputs -Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output -Additional QuickDMX input for wireless reception of DMX signals -Supports RDM for bidirectional communication over the DMX line -Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM -Input and outputs XLR 3-pin and 5-pin each -Input and outputs galvanically isolated -Each DMX output with independent driver and status indicators -Input and outputs with a set of respective power supply and internal fuse -Switchable termination resistor -Rack mounting -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Connectors | |
DMX connector types |
both 3/5pin
|
Electrical | |
power consumption watt, max |
5.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
2.20 kg
|
width |
483.00 mm
|
height |
44.50 mm
|
length |
483.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00094262.pdf |
