Info | |
---|---|
order code |
70064868
|
product link | |
EAN |
4026397572476
|
Product Name |

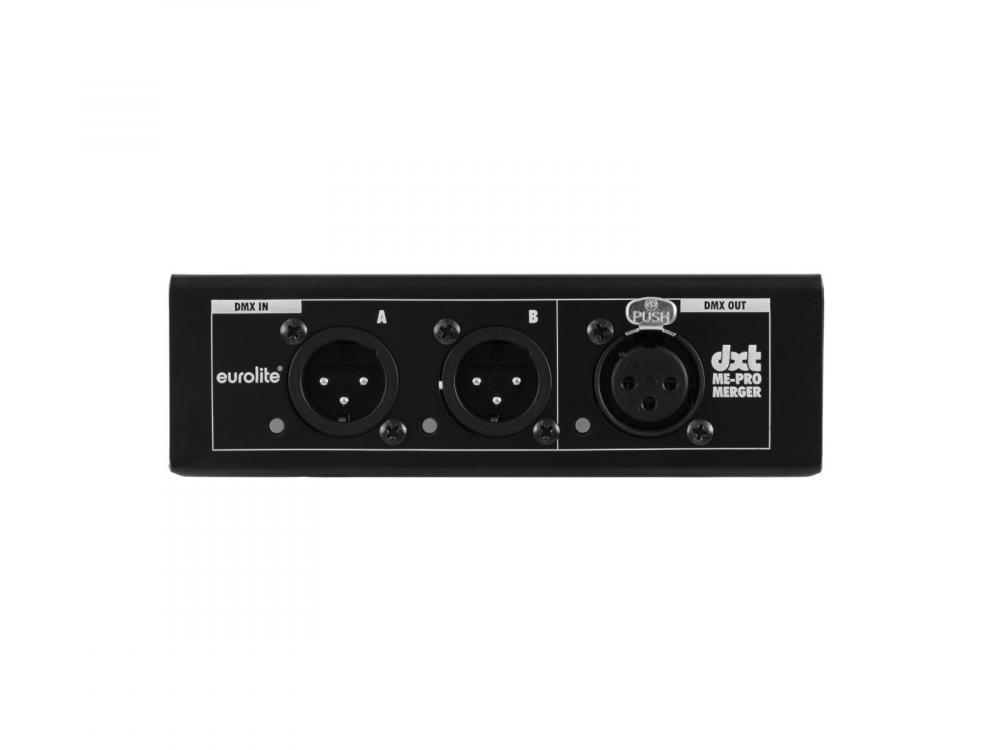

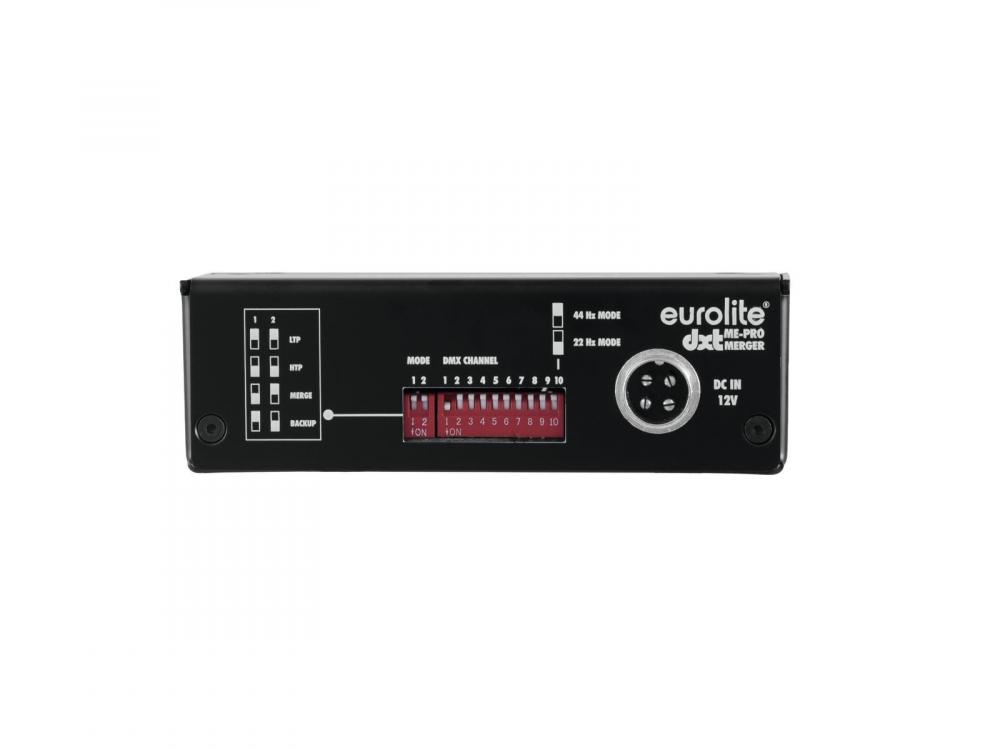

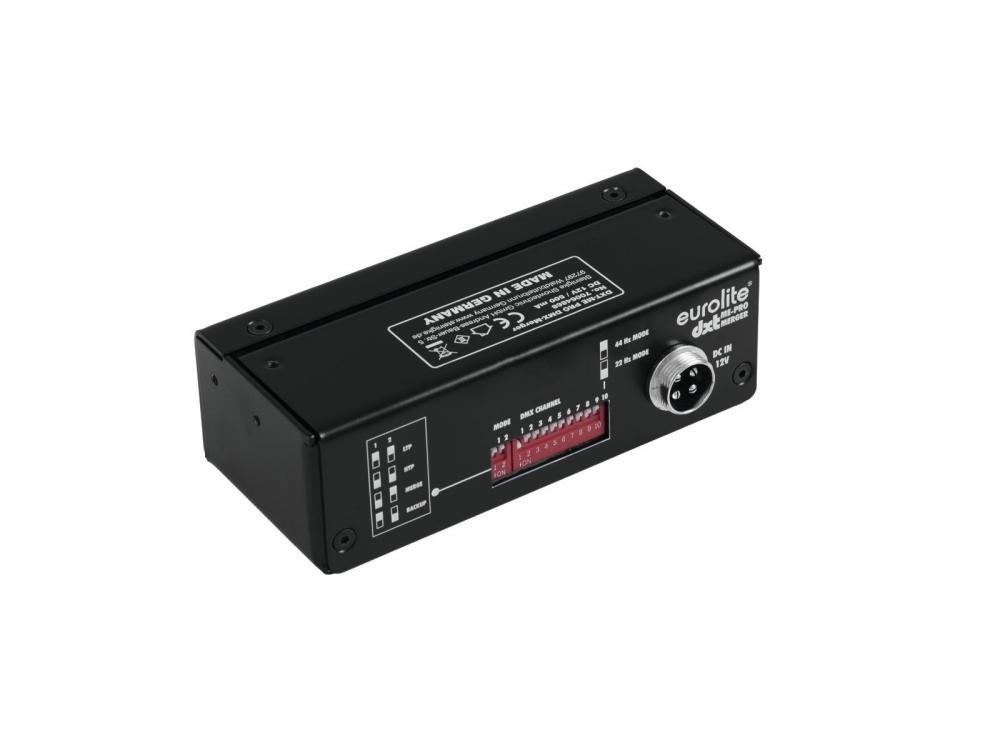

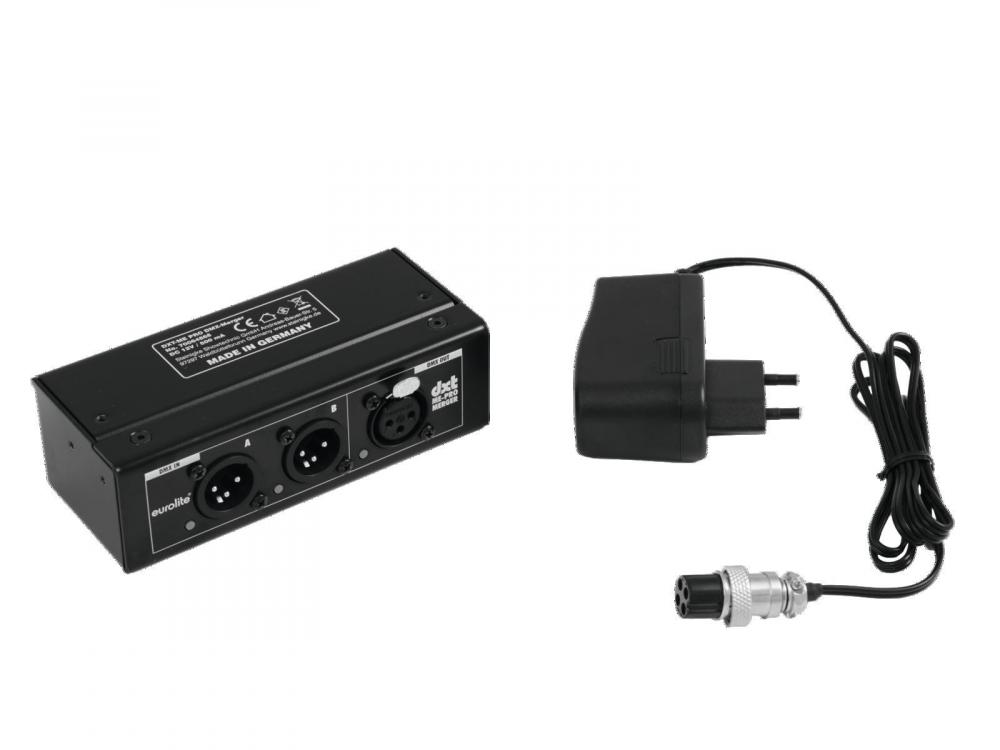

EUROLITE DXT-ME PRO DMX merger
|
technical overview |

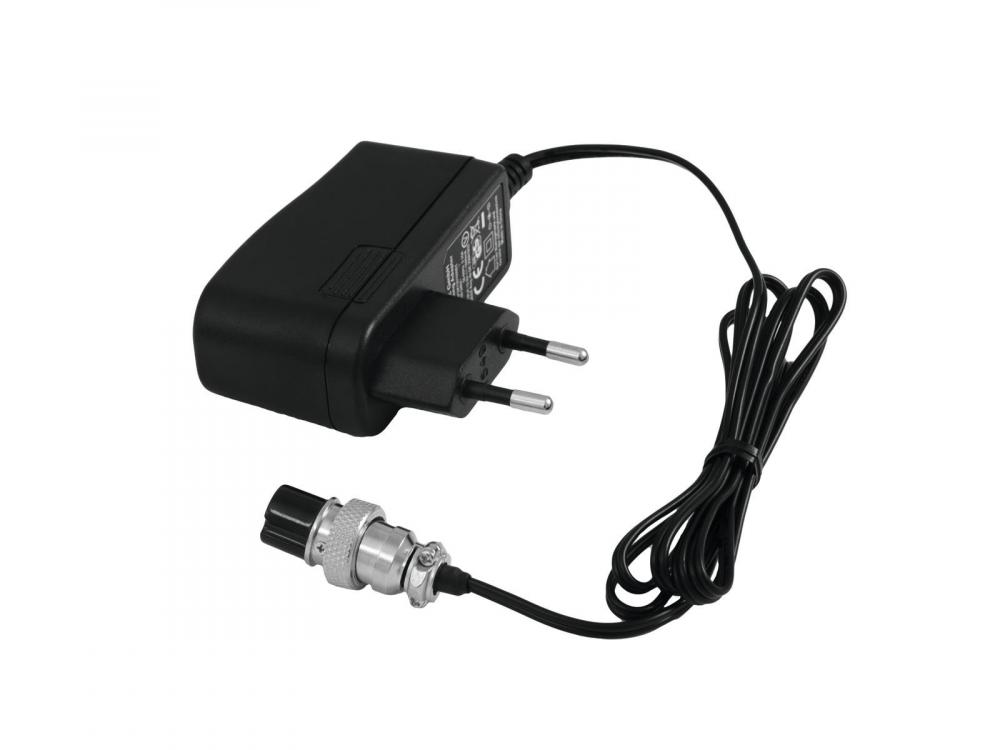

Power supply: 12 V DC, 1 A via included PSU DMX512 output: 3-pin XLR connector (Neutrik) DMX512 input: 2 x 3-pin XLR plug (Neutrik) Dimensions (L x W x H): 130 x 70 x 41 mm Weight: 0,4 kg Power consumption: 1 W Height: 4,1 cm Depth: 7 cm Width: 13 cm |
main features |
Professional DMX merger to combine 2 DMX signals into 1 -Pro DMX merger with 2 DMX inputs and 1 DMX output -Enables two separate consoles to control one DMX system -Compact version with rugged metal body for use on stage -DMX modes: LTP, HTP, merge or backup -Input B can be set to a start address (offset) -LED indicator for valid DMX signals -Selectable output frequency 22 Hz/44 Hz -Steady DMX output -3-pin XLR connectors (Neutrik) -Powered via included PSU -Rack installation via optional rack mounting kit (item 70064872) |
Electrical | |
power consumption amps, max |
1.00 A
|
power consumption watt, max |
1.00 W
|
DC Volts, min |
12 V
|
DC Volts, max |
12 V
|
Mechanical | |
weight |
0.40 kg
|
width |
130.00 mm
|
height |
41.00 mm
|
length |
130.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00102883.pdf |
