Info | |
---|---|
order code |
80503110
|
product link | |
EAN |
4026397354584
|
Product Name |

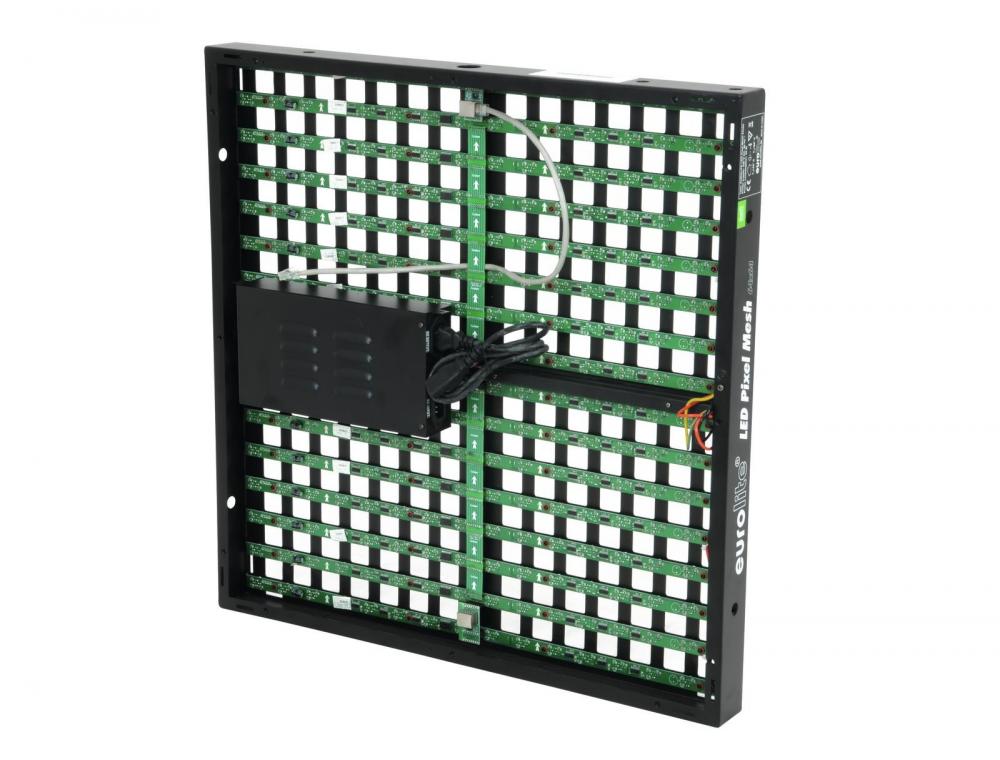

EUROLITE LED Pixel Mesh 64x64
|
technical overview |
Power supply: 230 V AC, 50 Hz Power connector: IEC input and output Signal connector: RJ45 Pixel pitch: 40 mm Pixel configuration: 2 red, 1 blue, 1 green Module resolution: 16 x 16 Density (point/m²): 625 Brightness (cd/m²): 1300 Scanning mode: Static View angle: 120° Driving voltage: 4.5-5.5 V Grey scale: R256 levels, G256 levels, B256 levels Frame rate: >/ 60 fps Dimensions: 640 x 640 x 65 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 10 kg Cooling fan: No, cooling by convection IP classification: IP20 Power consumption: 75,00 W Height: 64 cm Depth: 6,5 cm Width: 64 cm Power supply: 230 V AC, 50 Hz |
main features |

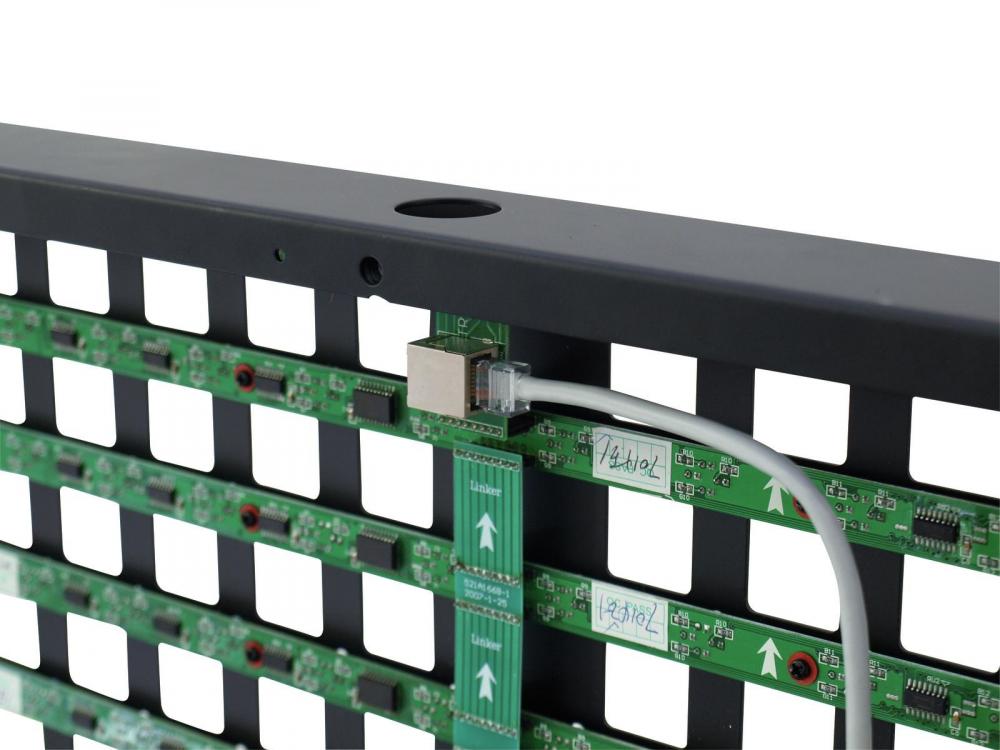

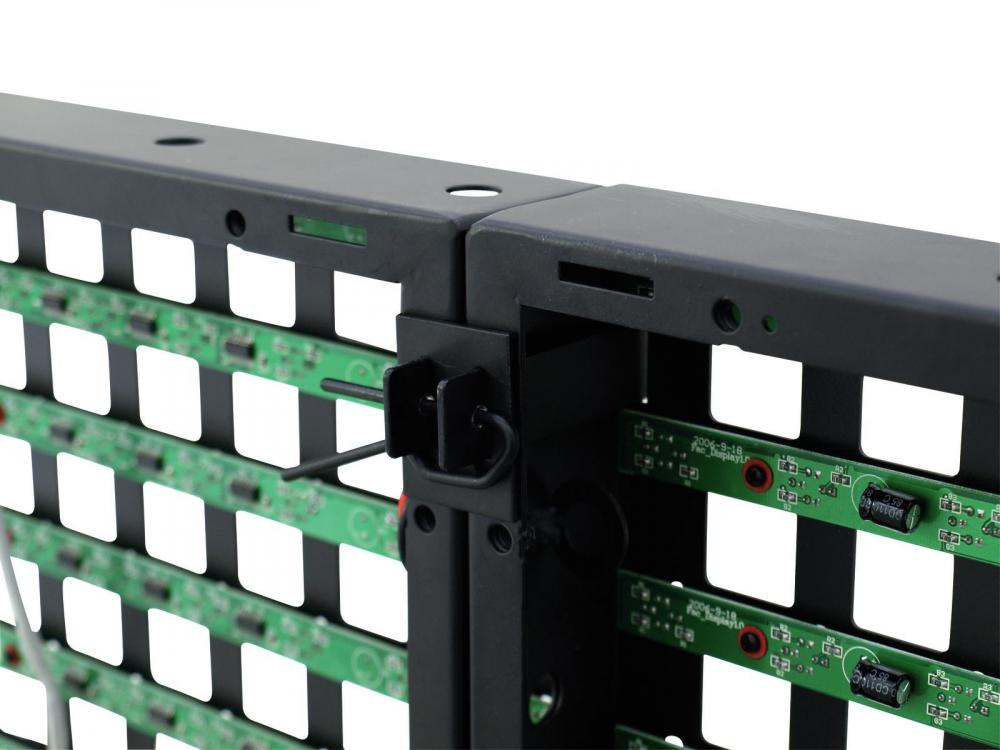

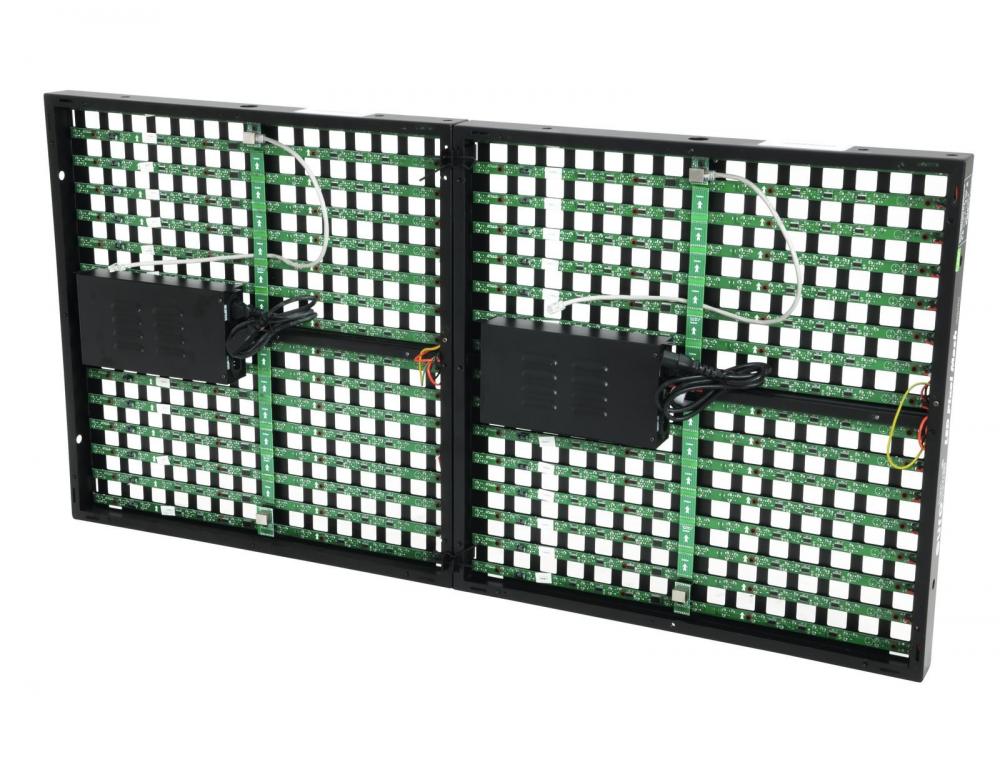

Modular LED video panel for indoor use -Bright and colorful projection of videos, animations and graphics -Ideal for stage/fair construction and fixed installation -Modular display concept allows the build-up of large areas -40 mm pixel pitch (seamless image at about 40 m) -16 x 16 pixels -Transparent design -Fast and easy setup -Ethernet-based signal distribution, IEC inputs and outputs -Controllable via optional network components and PC software -For operation per 128 panels (256 x 128 pixels), the optional network interface (80503120) and the network control system consisting of sending card and software LED studio (80503130) is required -Compatible to media software such as MADRIX -Matching flightcase available -Delivery includes 1 x IEC cable, 1 x 50 cm RJ45 cable (80503165), 4 x U-connector (80503150), 4 x gasket (80503152), 4 x bolt (80503154), 1 x eye-bolt -Case color: Black |
Electrical | |
power consumption watt, max |
75.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
cooling |
passive
|
Mechanical | |
weight |
10.00 kg
|
width |
640.00 mm
|
height |
640.00 mm
|
length |
640.00 mm
|
Video | |
Native system standards framerate min. |
60 fps
|
