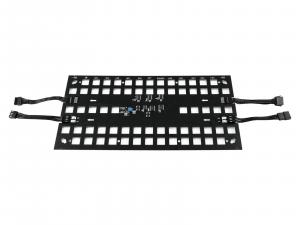

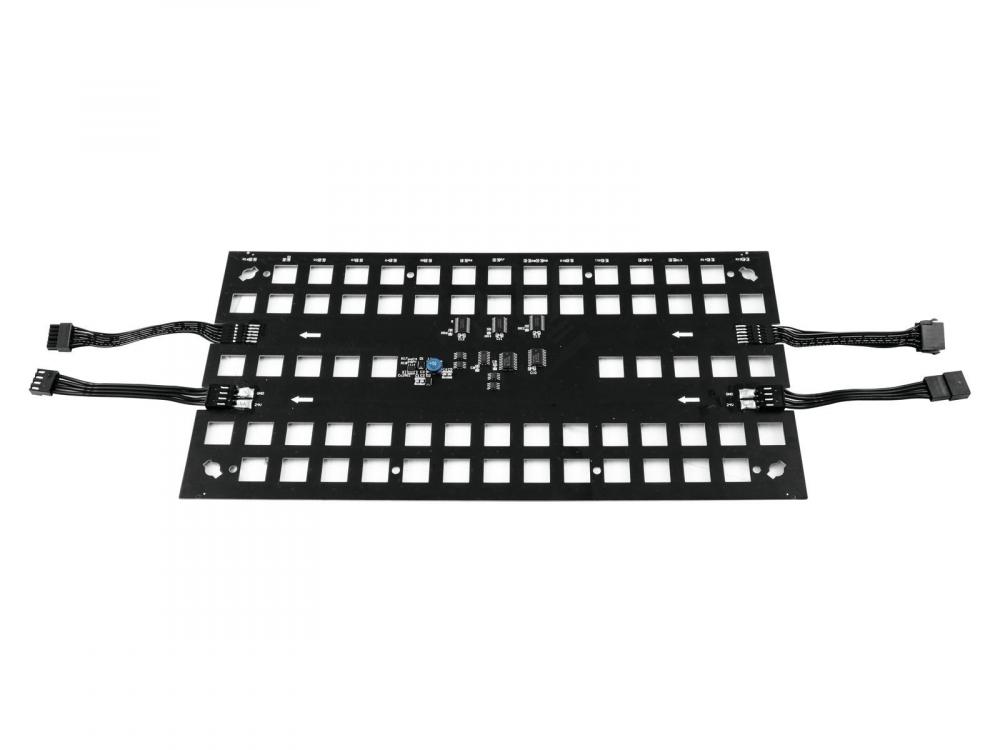

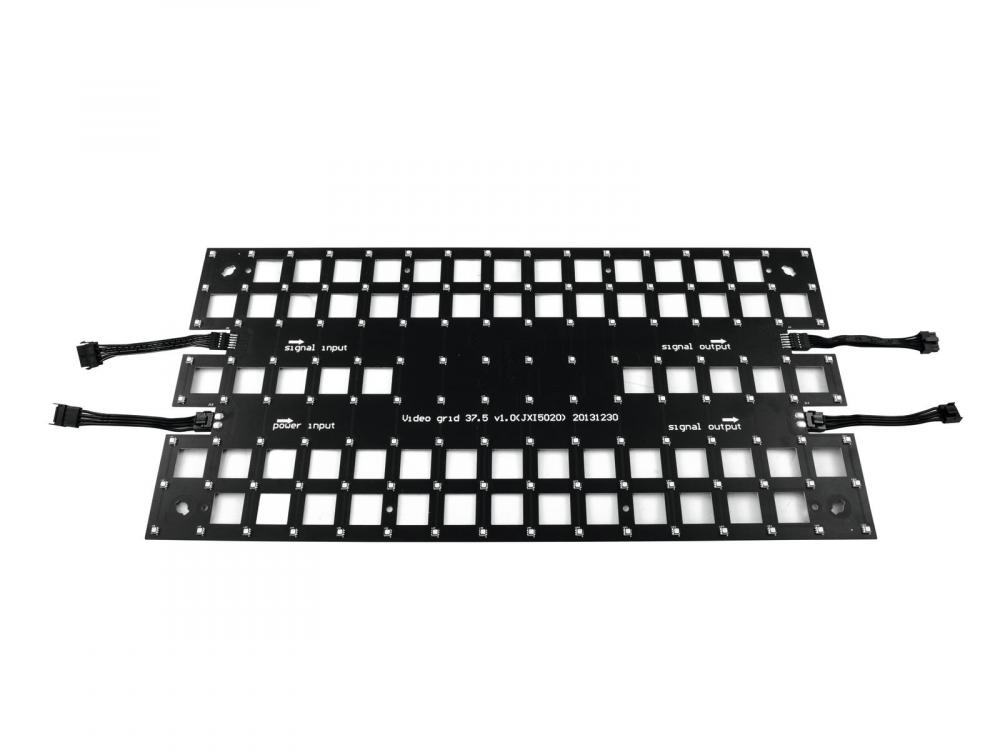

EUROLITE GD-37.5 LED panel 200x600mm

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE GD-37.5 LED panel 200x600mm

Info
order code
80503576
product link
EAN
4026397561517
Product Name
EUROLITE GD-37.5 LED panel 200x600mm
technical overview
Power supply: 24 V DC via AIO processor
Resolution: 8 x 16 pixels
Pixel pitch: 25 mm
Pixel density: 1600/m²
Pixel configuration: RGB SMD 5050 LEDs
Brightness: 1600 cd/m² (nits)
Dimensions: 200 x 400 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 0,25 kg
Power consumption: 12 W
Height: 200 cm
Width: 600 cm
LED: 128 x SMD 5050 3in1 TCL RGB (homogenous color mix)
main features
LED display for video and pixel mapping applications
-Modular LED display for video and pixel mapping applications
-Bright and colorful projection of videos, animations and graphics
-37.5 mm pixel pitch
-128 pixels (8 x 16)
-RGB SMD 5050 LEDs
-Transparent design
-Modular display concept allows the build-up of large areas
-Ideal for stage/fair construction and fixed installation
-Control via optional AIO processor and PC software
-LED: 128 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Electrical
power consumption watt, max
12.00 W
DC Volts, min
24 V
DC Volts, max
24 V
Mechanical
weight
0.25 kg
width
6000.00 mm
height
2000.00 mm
Optical
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
Video
Brightness
1600  cd/m²
