EUROLITE CRT-200PRO MK2 Controller

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE CRT-200PRO MK2 Controller

Info
order code
80503432
product link
EAN
4026397523836
Product Name
EUROLITE CRT-200PRO MK2 Controller
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Signal connection: 2 x RJ-45
Curtain outputs: 4
Serial connection: yes
DMX channels: 12
DMX connection: 3-pin XLR
Dimensions (L x W x H): 280 x 158 x 46 mm
System requirements: separate 1 Gbps network card
Windows XP, Vista, 7, 8 and 10
Weight: 1,3 kg
Power consumption: 3 W
Height: 15,8 cm
Depth: 4,6 cm
Width: 28 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
DMX channels: 12
Power supply: 110-240 V AC, 50/60 Hz
main features
Controller for CRT-200PRO MK2
-Controller for the CRT-200PRO MK2 LED effect curtain
-Easily create your own content with the included PC software LPlayer for stunning animations such as video loops, screen captures, logos, running lights and starry sky effects
-RJ-45 ports for live mode with a network-compatible computer
-Stand-alone operation via SD memory cards (2 cards included)
-16 built-in auto show programs
-RGB color mix, master dimmer, strobe effect
-DMX input and parallel DMX output
-Serial connection possible
-Blue LCD screen for menu settings
-4 terminals for connecting LED effect curtains
-Rugged black metal housing
-PowerCon input
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX

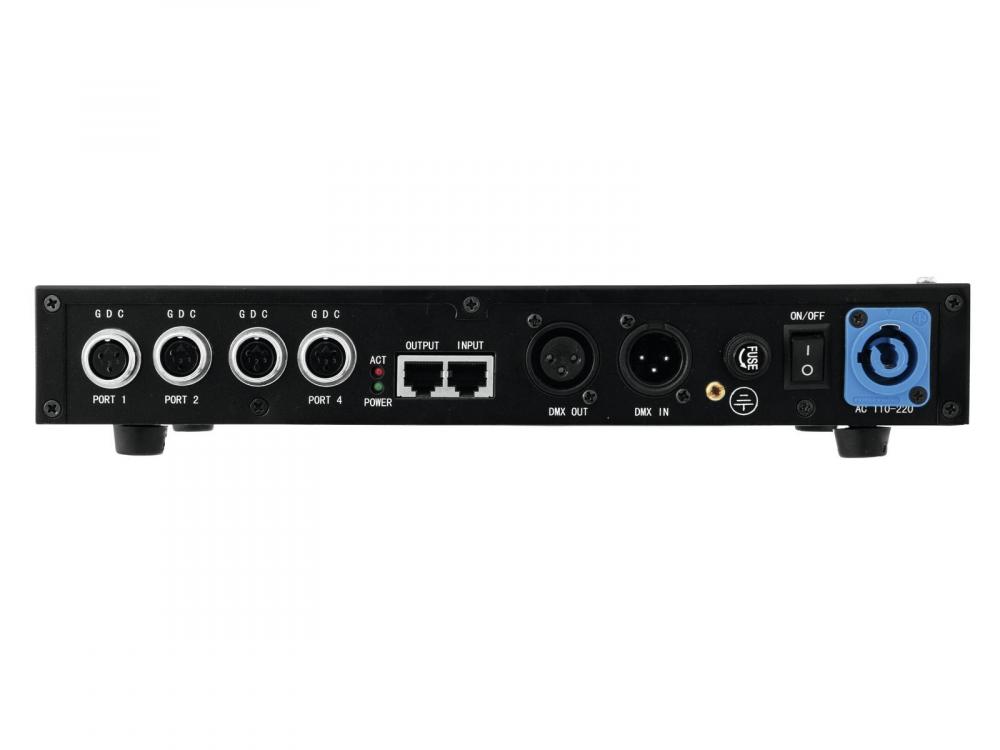

Connectors
DMX connector types
3pin
Control
control channels, min
12 ch
control channels, max
12 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
power input connector
Powercon
Mechanical
weight
1.30 kg
width
280.00 mm
height
158.00 mm
length
46.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00094858.pdf
