EUROLITE LVH-2 Video distribution amp
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LVH-2 Video distribution amp
| Info | |
|---|---|
| order code |
81013202
|
| product link | |
| EAN |
4026397324785
|
| Product Name |
EUROLITE LVH-2 Video distribution amp
|
| technical overview |
Power supply: 12-24 V DC, 60 mA 1 x video input: 1 Vpp/ 1 kohms (bridged), 75 ohms (terminated), BNC 5 x video outputs: 1 Vpp/ 75 ohms, BNC (1 feed-through output, 4 amplified outputs) Gain range: 0 dB to +6 dB (0.9 to 2.25 Vpp) S/N ratio: >70 dB Output isolation: >40 dB Differential gain: 0.1% Differential phase: 0.1 degree Dimensions (L x W x H): 146 x 87 x 42 mm Weight: 0,37 kg Frequency range: 10 - 10000000 Hz Height: 4,2 cm Depth: 8,7 cm Width: 14,6 cm |
| main features |

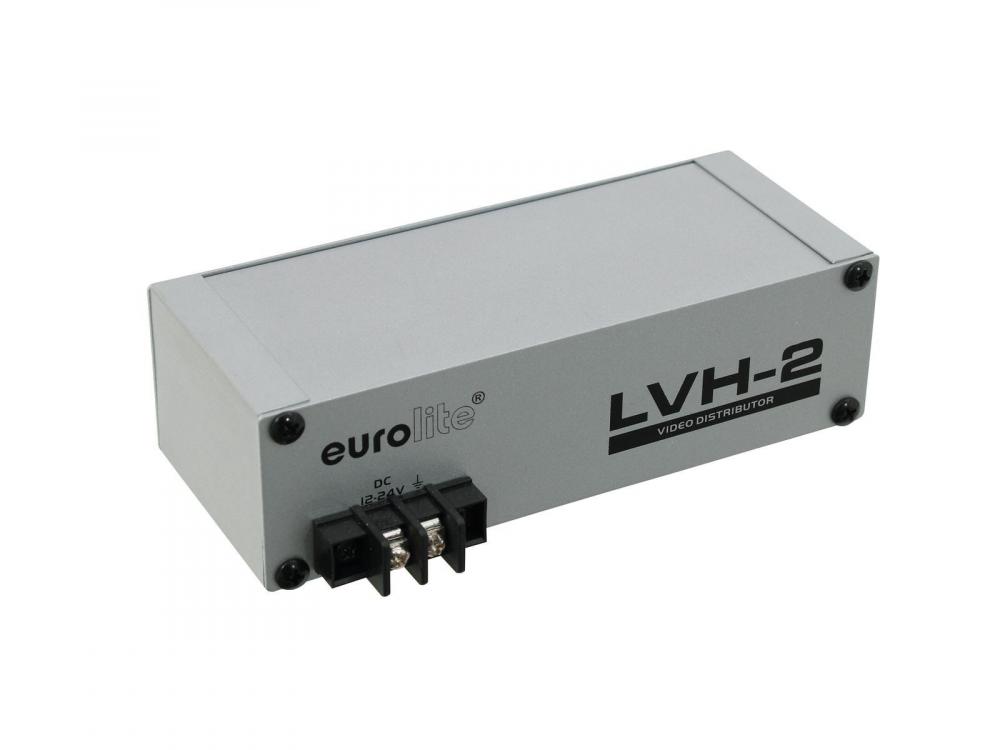

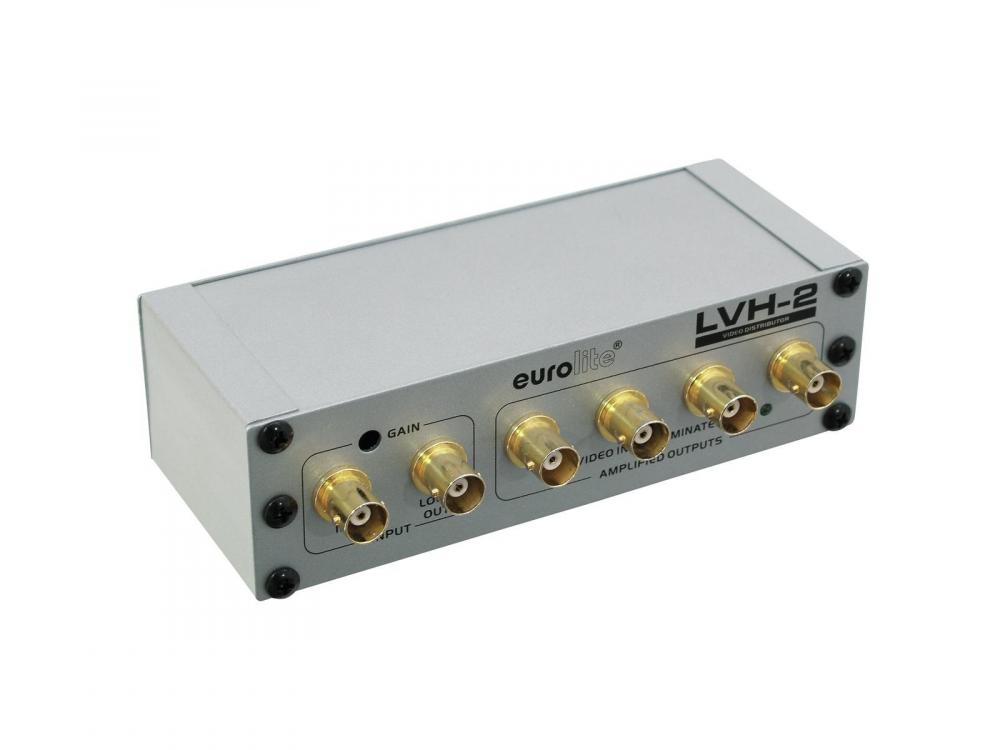

Video distribution amplifier 1:4 -Distributes 1 input to 4 outputs -1 parallel output for feed-through of the input signal -75 ohms input and outputs via BNC plugs -Adjustable gain amplification -10 MHz bandwidth -1 V video signal indicator -12-24 V DC power supply via block terminals (PSU not included in the delivery) |
| Audio | |
| Frequency response, from |
10 Hz
|
| Frequency response, to |
10000000 Hz
|
| Signal to Noise Ratio |
70.00 dB
|
| Electrical | |
| AC Volts, min |
12 V
|
| AC Volts, max |
24 V
|
| DC Volts, min |
12 V
|
| DC Volts, max |
24 V
|
| Mechanical | |
| weight |
0.37 kg
|
| width |
146.00 mm
|
| height |
42.00 mm
|
| length |
87.00 mm
|
