Info | |
---|---|
order code |
81013208
|
product link | |
EAN |
4026397324846
|
Product Name |

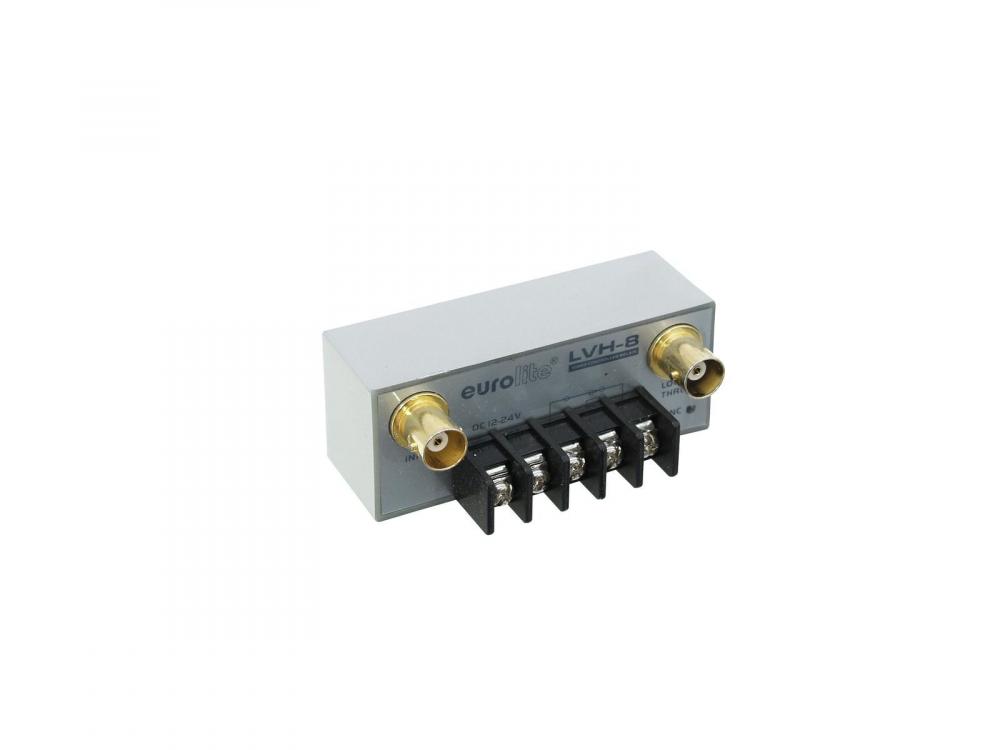

EUROLITE LVH-8 Video controlled relay
|
technical overview |
Power supply: 12-24 V DC, 74 mA 1 x video input: 0.5-1 Vpp/75 ohms BNC, ground referenced 1 x video output: Feed-through/ BNC, ground referenced Control output: N/O or N/C contacts Relay contacts: Single-pole, double-throw Max. switching power: 60 W, 125 VA Max. switching voltage: 220 V AC, 250 V DC Max. switching current: 2 A Max. continuous switching current: 3 A Dimensions (L x W x H): 76 x 41 x 31 mm Weight: 0,007 kg Height: 3,1 cm Depth: 4,1 cm Width: 7,6 cm |
main features |
Video controlled relay -Detection of video -NTSC and PAL compatible -Bridging or terminated operation -LED indicator -Connections via BNC plug -12-24 V DC power supply via block terminals (PSU not included) -Ultra compact |
Electrical | |
AC Volts, min |
12 V
|
AC Volts, max |
24 V
|
DC Volts, min |
12 V
|
DC Volts, max |
24 V
|
Mechanical | |
weight |
0.01 kg
|
width |
76.00 mm
|
height |
31.00 mm
|
length |
76.00 mm
|
