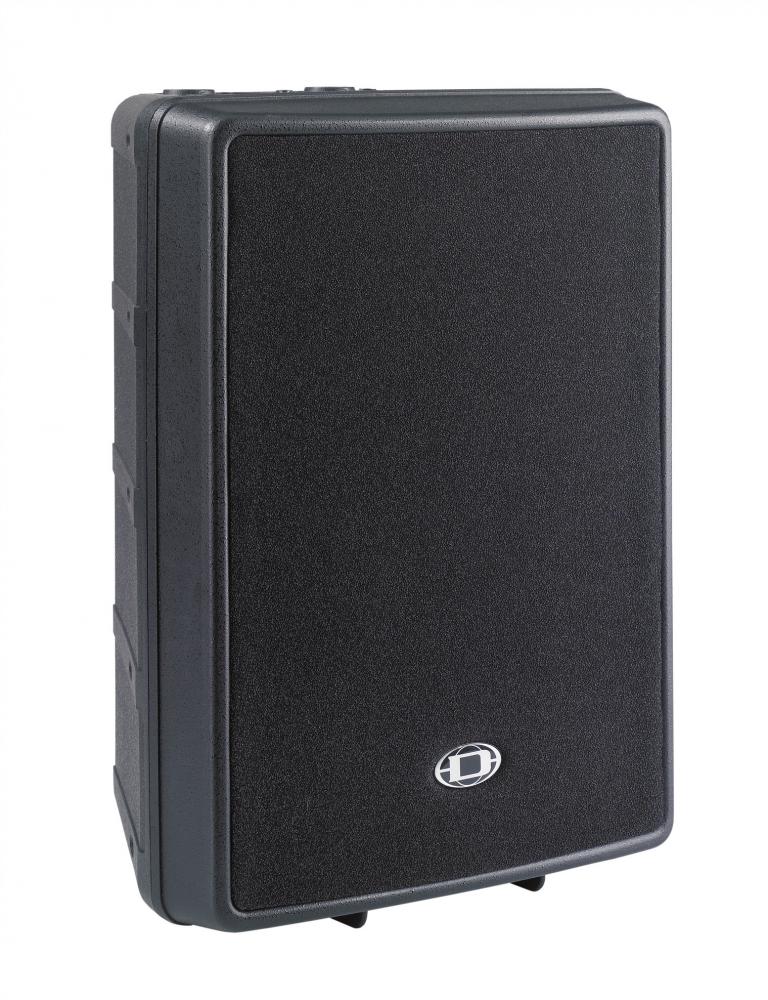

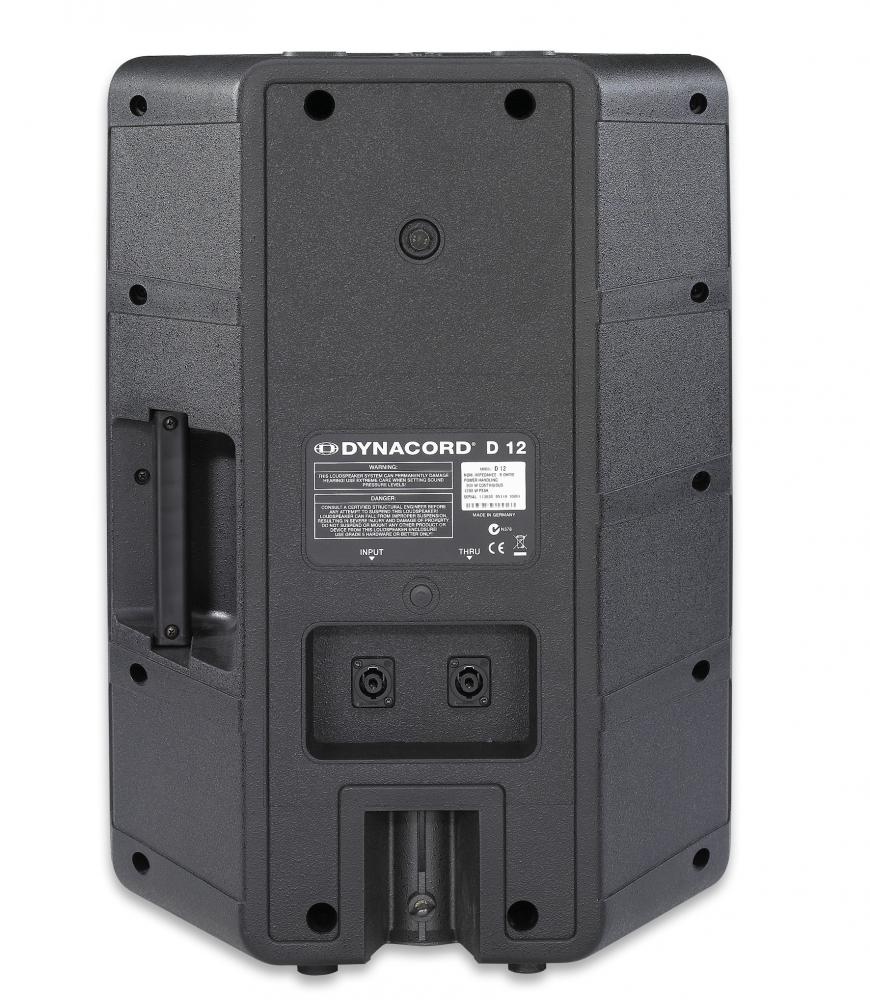

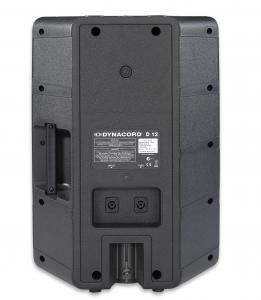

D 12
Dynacord
Technical specifications, datasheets, descriptions and tender texts for D 12
| Info | |
|---|---|
| product type |
Portable Passive Full-Range & Monitors
|
| product description |
Extrem leichtes, mechanisch robustes 12" 2‑Weg Kunststoffkabinett für professionelle portable und festinstallierte Beschallungsanwendungen für kleine und mittelgroße Events
|
| Audio | |
| Frequency response, from |
70 Hz
|
| Frequency response, to |
18000 Hz
|
| SPL, max |
129.00 dB
|
| Nominal power - RMS |
300 W
|
| impedance |
8 ohm
|
| Nominal dispersion angle, horizontal |
80.00 °
|
| Nominal dispersion angle, vertical |
40.00 °
|
| Connectors | |
| Speakon NL4xx |
2 pcs
|
| Mechanical | |
| weight |
16.00 kg
|
| width |
429.50 mm
|
| height |
586.00 mm
|
| length |
320.50 mm
|
| enclosure material |
Heavy Duty Polypropylene
|
| color |
black
|
| Cone transducer (membrane) Diameter, max |
12.00 "
|
| compression driver size, max |
1.00 "
|
| front cover |
powder coated steel
|
| front material |
Acoustic foam
|
| shipping weight |
17.00 kg
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Spec-Sheet |
|---|
| D12_D12W_EDS.pdf |
| CAD |
| D12.dxf.zip |
| Ausschreibungstext |
| D12.doc |
