Info | |
---|---|
tender specification text |

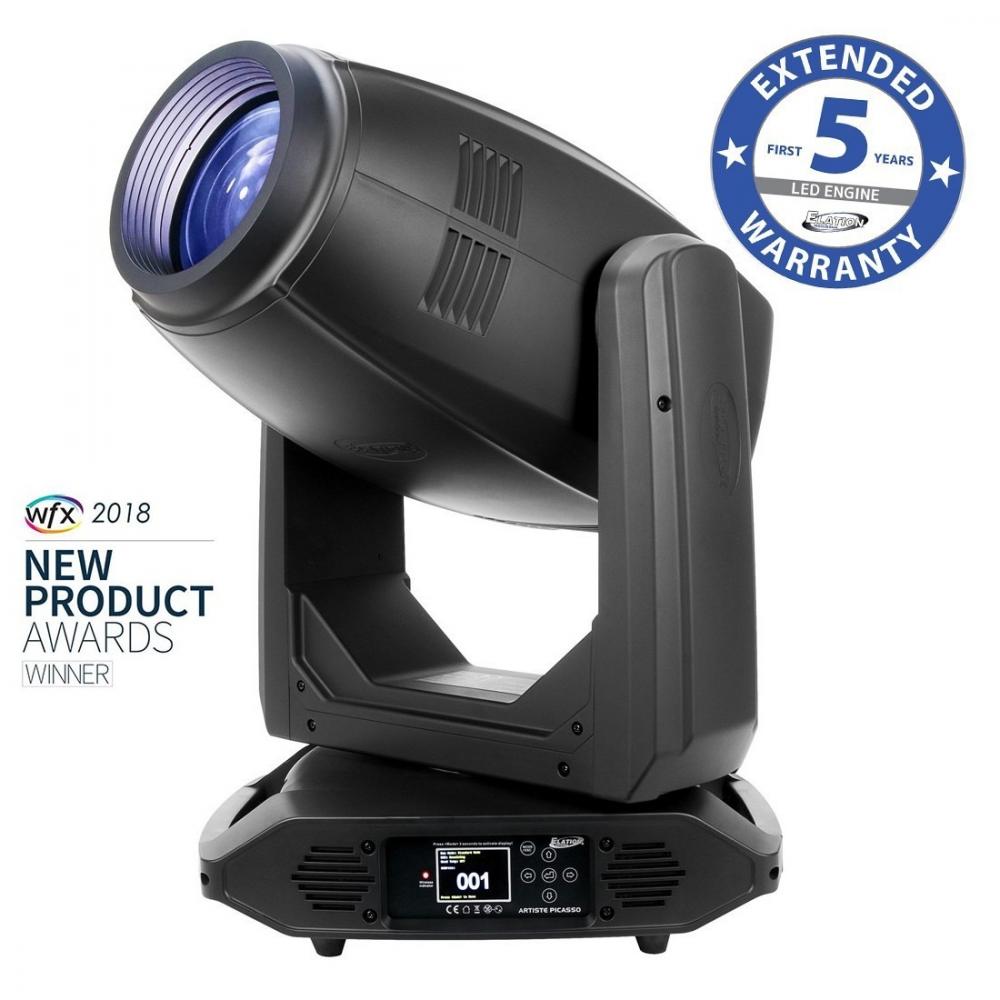

The award-winning Artiste Picasso™ is an inspirational theatrical-grade luminaire that marries creative expression with the latest in high-tech innovation. One of the brightest and most feature-rich profile LED fixtures on the market today, a new 620W Cool White LED engine combines with an advanced optical system to produce a powerful, crisp output of over 23,000 total lumens. Exceptionally quiet for use in noise-sensitive applications, Elation has packed a full list of features including zoom, full black-out framing, CMY, CTO, gobo wheels, animation, prisms and more, in a discreetly compact design, making the Artiste Picasso ideal for stage environments of all types.
GAEB
TEXT
|
short summary |
The Artiste Picasso is one of the brightest and most feature-rich LED profile moving head fixtures on the market. This powerful, theatrical-grade luminaire houses a zoom and a host of color and effects possibilities.
|
product type |
LED Moving Light Profile
|
product code |
1237000179
|
order code |
1237000179
|
product description |
FEATURES 620W 6,800K Cool White LED Engine 23,000+ Total Lumen Output 7° to 55° Motorized Zoom Full CMY Color Mixing System and Linear CTO Color Correction 6 Dichroic Colors including a High 87 CRI Filter 7 Rotating/Indexing Glass and 7 Static-Stamped Metal Interchangeable Gobos 4 Rotating Full Blackout Framing Blades Full 360° Bi-Directional Animation Wheel 4-Facet and Linear Rotating Prisms and 2 Frost Filters Internal Color, Framing, Prism, and Frost Macros Motorized Iris with Variable Pulse Effects Motorized Focus and Auto-Focus Feature 16-bit Pan, Tilt, and Dimming Control Variable Dimming Curve Modes High Speed Electronic Shutter and Strobe Adjustable LED Refresh Rate Frequency and Gamma Flicker Free Operation For Broadcast TV and FILM Silent Fan Mode DMX, RDM, Art-NET, and sACN Protocol Support Elation's E-FLY™ Internal Wireless DMX Transceiver Low Heat, Quiet Operation, Hibernation Mode (Power Save) SOURCE 620W 6,800K Cool White LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 23,000+ Total Lumen Output CRI 73 (87+ with HCRI filter) Zoom Range 7° - 55° Beam Angle 6.7° - 47.9° Field Angle 8.2° - 56° EFFECTS Motorized Zoom 4 Rotating Full Blackout Framing Blades +/-45° Framing Indexing Full 360° Bi-Directional Animation Wheel 4-Facet and Linear Rotating Prisms 2 Frost Filters Internal Color, Framing, Prism, and Frost Macros Motorized Iris with Variable Pulse Effects Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe Adjustable LED Refresh Rate Frequency and Gamma COLOR Full CMY Color Mixing System Linear CTO Color Correction 6 Dichroic Colors including High 87 CRI Filter GOBOS 2 Gobo Wheels 7 Rotating / Indexing Interchangeable Glass Gobos 7 Interchangeable Static-Stamped Metal Gobos CONTROL / CONNECTIONS 2 DMX Channel Modes (36 / 62 channels) 16-bit Pan, Tilt, and Dimming Control Motorized Focus and 5-15m Auto-Focus Presets DMX, RDM, Art-NET, and sACN Protocol Support Elation's E-FLY™ Internal Wireless DMX Transceiver 6 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display 8 / 16 Bit Resolution Adjustable Movement Hibernation Mode (Power Save) Locking 5pin XLR DMX, RJ45 Ethernet and Power With Wired Digital Communication Network SIZE / WEIGHT Length: 18.0" (457mm) Width: 21.5" (544.5mm) Vertical Height: 29.8" (757.5mm) Weight: 84.0 lbs. (38.1kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 1000W Max Power Consumption 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 3410 |
short, neutral tender spec text |
The luminaire shall be a yoke moving head with a 620W white LED engine with an average LED life of 50,000 hours. The luminaire shall include CMY color mixing, linear CTO color correction and 6 dichroic colors, including a high 87 CRI filter. The luminaire shall be capable of emitting 23,000 total lumens and include variable dimming curve modes. A motorized 7° to 55° zoom shall be included, as well as a focus. The luminaire shall include a motorized iris and high-speed strobe. The luminaire shall house 7 rotating, interchangeable glass and metal gobos as well as 7 static-stamped gobos. The luminaire shall include a motorized 4-blade framing shutter module with +/-45° individual blade rotation. A 4-facet rotating prism and linear rotating prism shall be included. Dual linear wash frost filters shall also be included. LED refresh rate and gamma brightness shall be adjustable and the luminaire shall operate flicker free. 5pin DMX in/out, RJ45 ethernet in/out and Power in/out connections shall be included. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols and include a hibernation mode. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 1000W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall include an internal wireless DMX transceiver. A USB firmware service port shall be included. It shall measure 457mm x 334mm x 758mm (LxWxH) and weigh 38.1 kg.
GAEB
TEXT
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
36 ch
|
control channels, max |
62 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption amps, max |
4.16 A
|
power consumption watt, max |
1000.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
external PSU |
no
|
Mechanical | |
weight |
38.10 kg
|
width |
334.00 mm
|
height |
758.00 mm
|
length |
457.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
23000 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
55.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
620.00 W
|
optics/projection type |
Profiler
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
no
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2700 K
|
color temperature, max |
6800 K
|
min CRI |
73 CRI
|
secondary light source |
none
|
drop-in frosts |
2 pcs
|
max CRI |
87 CRI
|
IES TM-30-15 Fidelity Index |
69 Rf
|
IES TM-30-15 Gamut Index |
93 Rg
|
out lumen in silent mode. Max |
23000 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
7 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
90 °
|
prism |
mutiple (2)
|
other beam effects |
yes
|
separate CTO wheel |
dual flag
|
prism morphing |
no
|
animation wheels |
1 pcs
|
animation wheel functionality |
continous rotation
|
Luminous efficacy |
37.10 lm/W
|
COLD WHITE LED color temp |
6800 K
|
CMY colormixing |
dual flag
|
COLD WHITE LED power |
620.00 W
|
