Info | |
---|---|
tender specification text |

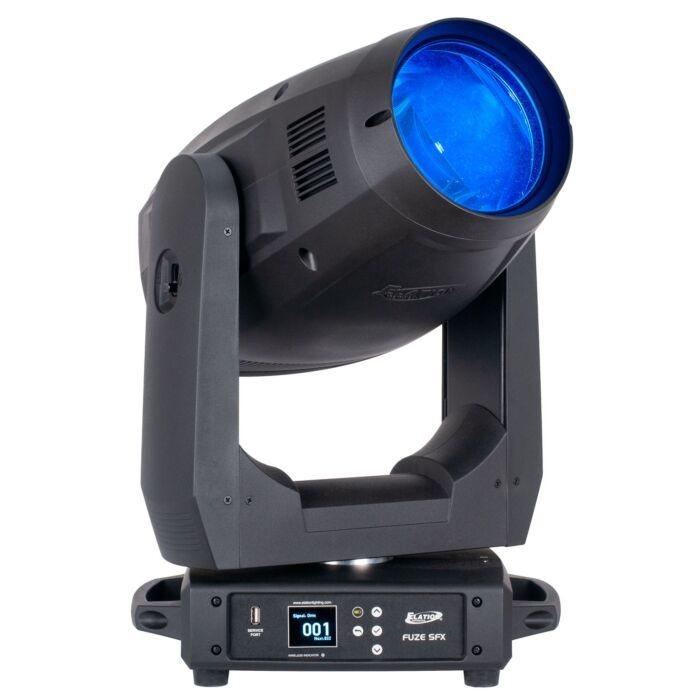

The FUZE SFX™ is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine. Housing 18 carefully designed gobos and a 4.5° to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections. The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set. A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage. GAEB TEXT |
short summary |
The Fuze SFX is designed for applications requiring a compact and powerful multi-purpose luminaire, a new concept LED Spot FX moving head capable of projecting tight beams to wide washes.
|
product type |
Moving Light LED Spot/FX
|
product description |
FEATURES 300W LED 6,600K White LED Engine 12,000 Total Lumen Fixture Output Spot and Effects Fixture Zoom Range from 4.5° to 38° Variable CMY and 7-Position Color Wheel 8 Rotating and 10 Fixed Gobos Dual Independent Prisms for Layering Motorized Iris Variable Wash Frost Filter SOURCE 300W 6,600K Bright White LED Engine 20,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 12,135 Total Lumen Output CRI 68 Zoom Range 4.5° - 38° Beam Angle 4.6° - 38.2° Field Angle 5.6° - 42.2° EFFECTS Motorized Zoom Remote Focus Variable Frost Filter Dual Independent Prisms (6 Facet linear & 6 Facet round) Motorized Iris Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe COLOR CMY Variable Color Mix 7 Position Color Wheel High CRI Filter, CRI 84 CTO Filter, 3200K, CRI 77 GOBOS 2 Gobo Wheels Wheel #1 with 8 Rotating / Interchangeable Glass Gobos Wheel #2 with 10 Static Gobos CONTROL / CONNECTIONS 31 DMX Channels 16-bit Pan, Tilt, and Dimming Control DMX Adjustable LED Frequency DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support 4 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display Locking 5pin XLR Connector In/Out Locking RJ45 Ethernet Connector In/Out IP65 Locking Power Connector In/Out USB Connection (Firmware Updates) With Wired Digital Communication Network SIZE / WEIGHT Length: 14.3” (362mm) Width: 9.2" (233mm) Vertical Height: 23.4" (595mm) Weight: 46.3 lbs. (19.3kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 432W Max Power Consumption 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 1473.12 |
product code |
1237000223
|
order code |
1237000223
|
short, neutral tender spec text |
The luminaire shall be a yoke moving head with 300W (6,600K) white LED engine. Lumen output shall be over 12,000 and the luminaire shall operate flicker-free with an average LED life of 20,000 hours. A seamless CMY color-mixing system shall be included plus a 7-position color wheel and variable wash frost filter. The luminaire shall include 8 rotating, interchangeable glass gobos and 10 fixed gobos. A motorized 4.5 to 38 degree zoom shall be included. It shall house a high-speed electronic shutter and strobe with variable 16-bit dimming curve modes included. Dual independent rotating and overlaying prisms plus a fast iris shall be included. The luminaire shall operate via DMX, RDM, EFLY wireless, Art-Net, and sACN protocols and include 5-pin XLR In/Out, RJ45 Ethernet In/Out, IP65 Locking Power and USB connections. It shall include 16-bit Pan, Tilt, and dimming control and DMX LED frequency shall be adjustable. The luminaire shall have a 4-button touch control panel and 180° reversible full-color LCD menu display. Max power consumption shall be 432W and a multi-voltage universal auto switching power supply shall be included. It shall measure 370mm x 230mm x 594.5mm (LxWxH) and weigh 19.3 kg.
GAEB
TEXT
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
31 ch
|
control channels, max |
31 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power consumption amps, max |
1.80 A
|
power consumption watt, max |
432.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
external PSU |
no
|
Mechanical | |
weight |
19.30 kg
|
width |
233.00 mm
|
height |
595.00 mm
|
length |
362.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
12135 lm
|
beam angle/zoom, min |
4.50 °
|
beam angle/zoom, max |
38.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
300.00 W
|
optics/projection type |
Spotlight
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2400 K
|
color temperature, max |
6600 K
|
secondary light source |
none
|
drop-in frosts |
1 pcs
|
max CRI |
84 CRI
|
out lumen in silent mode. Max |
12135 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
10 pcs
|
number of rotating gobos |
8 pcs
|
beam shapers/framing/barndoors |
no
|
prism |
mutiple (2)
|
other beam effects |
yes
|
separate CTO wheel |
no
|
prism morphing |
yes
|
COLD WHITE LED color temp |
6600 K
|
COLD WHITE LED power |
300.00 W
|
