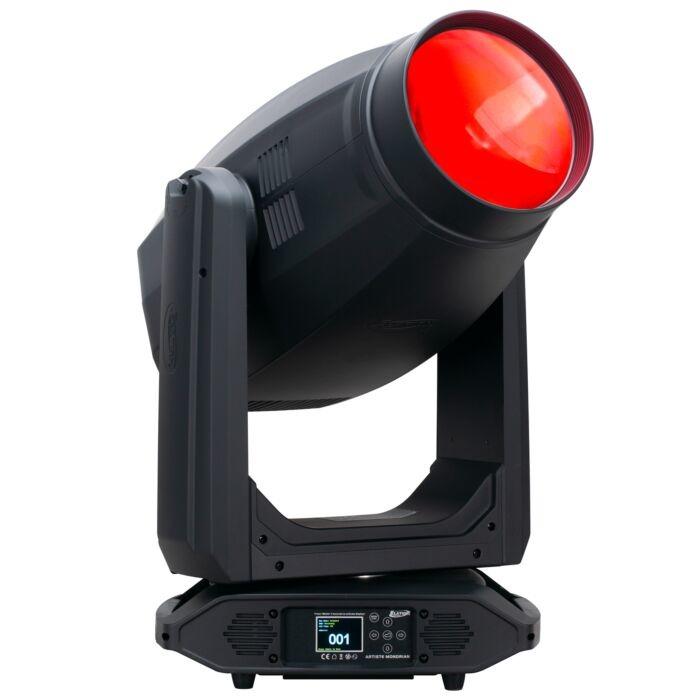

The Artiste Mondrian™ is an extremely bright, full-featured LED profile FX fixture offering high center intensity, narrow-beam angles and a wide color-mixing gamut through its variable SpectraColor engine.

Providing up to 51,000 lumens from its efficient 950W 6,500K LED engine, the Mondrian is the ideal fixture for any application requiring superior output, bright and powerful narrow beams, and quiet operation, as well as stunning effects and colors. Mondrian integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich, saturated primaries. In combination with the variable CTO, the Mondrian allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The Artiste Mondrian’s wide color gamut is achieved by seven color-mixing flags with 16-bit precision for artistic possibilities that are truly inspiring. The fixed color wheel offers UV and high CRI options to round out the amazing color range of the fixture.

The full-blackout framing array includes Elation's newly designed, unlimited indexing and continuous rotation control. Shapes can rotate like gobos while morphing and transforming, allowing for new creative transitions and interesting projection and aerial effects not previously possible. Mondrian also offers a comprehensive FX package with 14 rotating interchangeable glass gobos, full animation wheel, dual prisms, dual frost and a high-speed iris. With a narrow beam zoom from 3° to 45° and a very large 226mm (8 3/4") front lens, the Mondrian has the power to cut through at even great distances in arena touring environments or any large-scale show setting.

The Artiste Mondrian ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.
GAEB
TEXT

FEATURES
High Efficiency 950W 6,500K White Hotspot LED Engine
Hotspot engine for powerful beams and high center intensity
Up to 51,000 Total Lumen Fixture Output
6-Position Color Wheel, High CRI, UV Filter
SpectraColor CMYRGB Array and Variable Linear CTO
Complete FX System: 2x Rotating Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
Narrow Beams to Wide Washes from 3° to 45°
Full Blackout Framing System with 360° Continuous Index and Rotation of Shapes
Large 226mm (8 3/4") Clear Plano Convex (PC) Lens

SPECIFICATIONS

SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (84+ with HCRI Filter)

Zoom Range 3° - 45°
Beam Angle 2.8° - 34.9°
Field Angle 4° - 46.1°

EFFECTS
3.3° - 45° Motorized Zoom (226mm / 8 3/4" front lens)
360° Continuous Framing Index and Rotation
Full 360° Bi-Directional Animation Wheel
4 Rotating Full Blackout Framing Blades
Internal Color, Framing, Prism, and Frost Macros
2 Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
High Speed Electronic Shutter and Strobe
Variable 16-bit Dimming Curve Modes
DMX Controllable LED Refresh Rate

COLOR
SpectraColor CMY + RGB Color Mixing Array
6 Dichroic Colors including High CRI Filter and UV
Linear CTO Color Correction

GOBOS
2 Gobo Wheels
12 Rotating / Indexing Interchangeable Glass Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (42 / 68)
Motorized Focus and Auto-Focus Presets
16-bit Pan, Tilt and Dimming Control
DMX, RDM, Art-NET, sACN Protocol Support
Full Color 180° Reversible LCD Menu Display
(6) Button Touch Control Panel
Hibernation Mode (Power Save)
USB Connection (Firmware Updates)
Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network

SIZE / WEIGHT
Width: 26.5 in. (673mm)
Length: 18.55 in. (472mm)
Height: 34.2 in. (870mm)
Weight: 104.7 lbs. (47.5kg)

ELECTRICAL/THERMAL
1,500W Max Power Consumption
AC 120-240V 50/60Hz
BTU/hr (+/- 10%) 5115

The luminaire shall be a yoke moving head with a 950W 6,500K white LED engine with an average LED life of 30,000 hours. The luminaire shall be capable of emitting 51,000 total lumens and include variable 16-bit dimming curve modes. It shall house a SpectraColor CMY + RGB color mixing array, variable linear CTO and 6-position color wheel that includes a UV and high CRI filter. A motorized 3° - 45° zoom shall be included and the luminaire’s aperture shall be 226mm. The luminaire shall house 12 rotating, indexing, interchangeable glass gobos on two wheels and a full 360° bi-directional animation wheel. The luminaire shall include a full blackout 4-blade framing module with 360° continuous index and rotation of shapes. Two rotating prisms shall be included. The luminaire shall include a motorized iris with variable pulse effects and high-speed electronic shutter and strobe. Two variable wash frost filters (light and wash) shall also be included. Internal color, framing, prism, and frost macros shall be available and pan, tilt and dimming control shall be 16 bit. DMX controllable LED refresh rate shall be adjustable and the luminaire shall operate flicker free. The luminaire shall operate via DMX, RDM, Art-NET and sACN protocols and include a power saving hibernation mode. 5pin XLR DMX, RJ45 ethernet and power connections shall be included. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display and be outfitted with a wired digital communication network and USB firmware service port. Max power consumption shall be 1500W and a multi-voltage universal auto switching power supply shall be included. It shall measure 472mm x 673mm x 870mm (LxWxH) and weigh 47.5 kg.
