Info | |
---|---|
tender specification text |

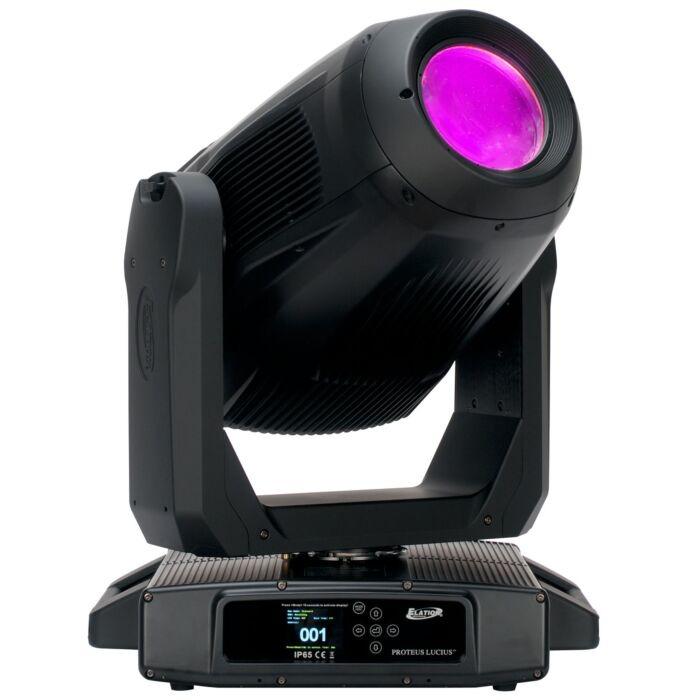

The PROTEUS LUCIUS™ is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities in any environment. Providing up to 33,500 lumens output from its custom-designed hotspot 580W 6,500K LED engine, the PROTEUS LUCIUS is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors. PROTEUS LUCIUS provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control. With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS LUCIUS has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications. The PROTEUS LUCIUS ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport. GAEB TEXT |
short summary |
The Proteus Lucius is a powerful yet compact IP65-rated LED profile fixture offering outstanding projection and beam qualities. Feature packed and outfitted with framing shutters, it is an ideal fixture for any application requiring superior output and bright beams, as well as stunningly precise gobos and colors.
|
product type |
Moving Light LED Profile
|
product code |
1237000226
|
order code |
1237000226
|
product description |
FEATURES IP65 Outdoor Rated High Efficiency 580W 6,500K White LED Engine Up to 33,500 Total Lumen Fixture Output Hotspot engine for powerful projection at long distances CMY Color Mixing and Variable CTO 5-Position Color Wheel with High CRI Filter Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost Indexable Full Blackout Framing System Wide Zoom Range from 5.5° to 50 SPECIFICATIONS SOURCE 580W 6,500K Bright White Hotspot LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA 33,500 Total Lumen Fixture Output CRI 71+ (85+ with HCRI Filter) 2.5:1 Hotspot Ratio Zoom Range 5.5° - 50° Beam Angle 6° - 36.7° Field Angle 7.6° - 51.3° EFFECTS Motorized Zoom 4 Rotating Full Blackout Framing Blades +/-45° Framing Indexing Full 360° Bi-Directional Animation Wheel 4-Facet and Linear Rotating Prisms 2 Variable Frost Filters (Light and Wash) Internal Color, Framing, Prism, and Frost Macros Motorized Iris with Variable Pulse Effects Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe DMX Controllable LED Refresh Rate COLOR CMY Color Mixing Linear CTO Color Correction 5 Dichroic Colors including High CRI Filter GOBOS 3 Gobo Wheels 6 Rotating Gobo (Wheel #1) 7 Rotating Gobos (Wheel #2) 7 Static Gobos (Wheel #3) CONTROL / CONNECTIONS 2 DMX Channel Modes (43/68 Ch.) 16-bit Pan, Tilt and Dimming Control Motorized Focus and Auto-Focus Presets DMX, RDM, Art-NET, sACN Protocol Support (6) Button Touch Control Panel Full Color 180° Reversible LCD Menu Display Hibernation Mode (Power Save) IP65 Locking 5pin XLR Connector In/Out IP65 Locking RJ45 Ethernet Connector In/Out IP65 Locking Power Connector In With Wired Digital Communication Network SIZE / WEIGHT Length: 16.4 in (417mm) Width: 14.6 in (370mm) Height: 26.6 in (677mm) Weight: 89.9 lbs. (40.8kg) ELECTRICAL AC 120-240V 50/60Hz Max Power Consumption 950W 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 3239.5 |
short, neutral tender spec text |
The luminaire shall be an IP65-rated yoke moving head with a 580W 6,500K white LED engine with a 2.5:1 hotspot ratio and an average LED life of 30,000 hours. The luminaire shall be capable of emitting 33,500 total lumens and include variable 16-bit dimming curve modes. It shall house a CMY color mixing system with linear CTO plus a 5-slot color wheel that includes a high CRI filter. Beam angle adjustment shall be possible via a 5.5° - 50° motorized zoom. The luminaire shall house 3 gobo wheels: 6 rotating gobos (Wheel #1), 7 rotating gobos (Wheel #2), and 7 static gobos (Wheel #3). A full 360° bi-directional animation wheel shall be included and the luminaire shall have a full blackout 4-blade framing module with +/-45° continuous framing indexing. 4-facet and linear rotating prisms shall be included. The luminaire shall include a motorized iris with variable pulse effects as well as a high-speed electronic shutter and strobe. Two variable wash frost filters (light and wash) shall also be included. Internal color, framing, prism, and frost macros shall be available and pan, tilt and dimming control shall be 16 bit. DMX controllable LED refresh rate shall be adjustable and the luminaire shall operate flicker free. It shall operate via DMX, RDM, Art-NET and sACN protocols and include a power saving hibernation mode. IP65 5pin XLR DMX in/out, IP65 RJ45 ethernet in/out and IP65 power connections shall be included. The luminaire shall include a 6-button touch control panel with fullcolor 180° reversible LCD menu display. Max power consumption shall be 950W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall be outfitted with a wired digital communication network. It shall measure 417mm x 370mm x 677mm (LxWxH) and weigh 40.8 kg GAEB TEXT |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
43 ch
|
control channels, max |
68 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption amps, max |
3.96 A
|
power consumption watt, max |
950.00 W
|
AC Volts, min |
120 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
65
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
external PSU |
no
|
Mechanical | |
weight |
40.80 kg
|
width |
370.00 mm
|
height |
677.00 mm
|
length |
417.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
33500 lm
|
beam angle/zoom, min |
5.00 °
|
beam angle/zoom, max |
50.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
580.00 W
|
optics/projection type |
Profiler
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2700 K
|
color temperature, max |
6500 K
|
min CRI |
71 CRI
|
secondary light source |
none
|
drop-in frosts |
2 pcs
|
max CRI |
85 CRI
|
out lumen in silent mode. Max |
33500 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
3 pcs
|
rotating gobowheels |
2 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
13 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
100 °
|
prism |
mutiple (2)
|
other beam effects |
yes
|
separate CTO wheel |
dual flag
|
prism morphing |
no
|
animation wheels |
1 pcs
|
animation wheel functionality |
continous rotation
|
COLD WHITE LED color temp |
6500 K
|
CMY colormixing |
dual flag
|
COLD WHITE LED power |
580.00 W
|
