Info | |
---|---|
tender specification text |
The Satura Profile™ features a 440W High CRI >85 Cool White LED engine, delivering a total of 20,000 lumen, state-of-the-art motorized 4-blade framing shutter module, 11° to 38° zoom and focus, full CMY color mixing plus linear CTO color correction, 7 dichroic colors and white (open), 6 rotating, interchangeable glass & metal gobos and 7 interchangeable static-stamped metal gobos, 3-facet rotating prism, wash frost filter, motorized iris, variable dimming curves, DMX, RDM (Remote Device Management), Art-NET (DMX over Ethernet) support, 3pin and 5pin DMX in/out, RJ45 etherCON in/out and powerCON in connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 650W max power consumption and a multi-voltage universal auto switching power supply (120-240V).
GAEB
TEXT
|
short summary |

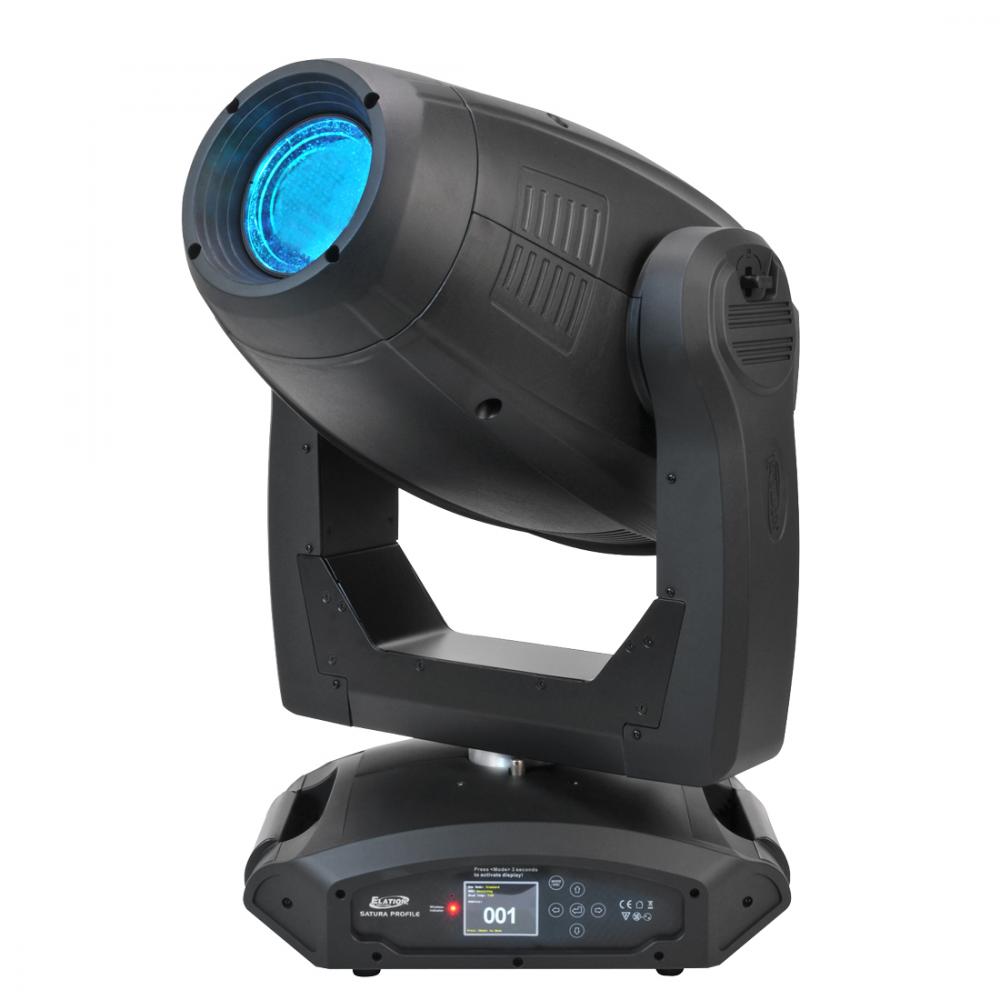

The Satura Profile™ is a CMY color-changing moving head with a 440W cool-white LED engine and host of creative design tools, including zoom and internal framing.
|
product type |
Moving Lights LED Profile
|
product description |
FEATURES 440W Cool White 6,500K High CRI >85 LED Profile Luminaire State-of-the-Art Motorized 4-Blade Framing Shutter Module 11° to 38° Motorized Zoom Full CMY Color Mixing and Linear CTO Color Correction 3-Facet Rotating Prism Low Heat, Quiet Operation, Hibernation Mode Variable Dimming Curves Flicker Free Operation for TV and Film Art-NET (DMX over Ethernet) RDM – Remote Device Management SOURCE 440W Cool White LED Engine 15,000 Total Lumen Output, 6,500K, High CRI >85 50,000 Hour Average LED Life* PHOTOMETRIC DATA 17,835 LUX 1,657 FC @ 16.4’ (5m) (Min. Zoom) 2,182 LUX 203 FC @ 16.4’ (5m) (Max. Zoom) EFFECTS 4-Blade Framing Shutter System Animation Effect (Optional Kit) 3-Facet Rotating Prism Wash Frost Filter Motorized Iris Strobe: 1-18fps Dimming: 0% - 100% Variable Dimming Curves COLOR Full CMY Color Mixing and Linear CTO Color Correction 7 Dichroic Colors + White GOBOS 6 Interchangeable / Rotating / Indexing Glass Gobos Size Glass Gobos: OD 28.8mm / ID 24mm** 7 Interchangeable Static-Stamped Metal Gobos Size Metal Gobos: OD 27mm / ID 22mm** Optional Animation Effect Wheel Replaces Static Gobo Wheel CONTROL / CONNECTIONS (3) DMX Channel Modes (33 / 35 / 54) RDM (Remote Device Management) 6 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display Battery Powered Menu Display 8 / 16 Bit Resolution Adjustable Movement 3pin & 5pin DMX In/Out RJ45 etherCON In/Out (Art-NET) powerCON Power In SIZE / WEIGHT Length: 17.7” (450mm) Width: 12.2” (310mm) Vertical Height: 29.3” (745mm) Weight: 75.0 lbs. (34.0 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 650W Max Power Consumption 14°F to 113°F (-10°C to 45°C) INCLUDED ITEMS powerCON to Schuko Cable |
product code |
1237000118
|
order code |
1237000118
|
short, neutral tender spec text |
The luminaire shall be a yoke moving head with a 440W cool white LED engine with CMY color mixing, linear CTO color correction and 7 dichroic colors. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall be capable of emitting a total of 15,000 total output lumens and include variable dimming curve modes. A motorized 11° to 38° zoom shall be included, as well as a focus, and the luminaire shall include a motorized iris and high speed electronic shutter and strobe. The luminaire shall house 6 rotating glass and 7 static-stamped metal interchangeable gobos and include a 3-facet rotating and prism and frost filter. An internal 4-blade framing shutter system shall be included. 5-pin XLR, PowerCON In connections and RJ45 ethernet in/out connections shall be included. The luminaire shall operate via DMX, RDM and Art-NET protocols. The luminaire shall include a 6-button touch control panel with full-color 180° reversible menu display. Max power consumption shall be 650W and a multi-voltage universal auto switching power supply (100-240v, 50/60hz) shall be included. The luminaire shall include a hibernation mode and battery backup for display power. It shall measure 450mm x 310mm x 745mm (LxWxH) and weigh 34.0 kg.
GAEB
TEXT
|
product link | |
Connectors | |
total number of DMX inputs |
2 pcs
|
total number of DMX outputs |
2 pcs
|
DMX connector types |
both 3/5pin
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
33 ch
|
control channels, max |
54 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Electrical | |
built-in dimmer |
LED PWM
|
power consumption amps, max |
2.71 A
|
power consumption watt, max |
650.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
power input connector |
Powercon
|
cooling |
active
|
external PSU |
no
|
Mechanical | |
weight |
34.00 kg
|
width |
310.00 mm
|
height |
745.00 mm
|
length |
450.00 mm
|
pan range |
630 °
|
tilt range |
260 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
15000 lm
|
beam angle/zoom, min |
11.00 °
|
beam angle/zoom, max |
38.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
440.00 W
|
optics/projection type |
Spotlight
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
1800 K
|
color temperature, max |
6500 K
|
secondary light source |
none
|
drop-in frosts |
1 pcs
|
max CRI |
85 CRI
|
out lumen in silent mode. Max |
15000 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
6 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
90 °
|
prism |
yes
|
other beam effects |
yes
|
separate CTO wheel |
dual flag
|
prism morphing |
no
|
animation wheel functionality |
partially rotatable
|
Luminous efficacy |
34.10 lm/W
|
COLD WHITE LED color temp |
6500 K
|
CMY colormixing |
dual flag
|
COLD WHITE LED power |
440.00 W
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
2D CAD File |
---|
elation_satura_profile_2D_CAD_042616.zip |
3D CAD file |
Elation Satura Profile 3D CAD.zip |
Dimensional Drawings |
elation_satura_profile_dimensional_drawings.pdf |
DMX Traits |
elation_satura_profile_DMX_traits_122316.pdf |
Manual |
elation_satura_profile_user_manual_122316.pdf |
Photometrics |
elation_satura_profile_photometric_data.pdf |
Specification Sheet |
elation_satura_profile_specification_sheet_122316.pdf |
Vectorworks Files |
Elation Satura Profile Vectorworks Symbols.zip |
