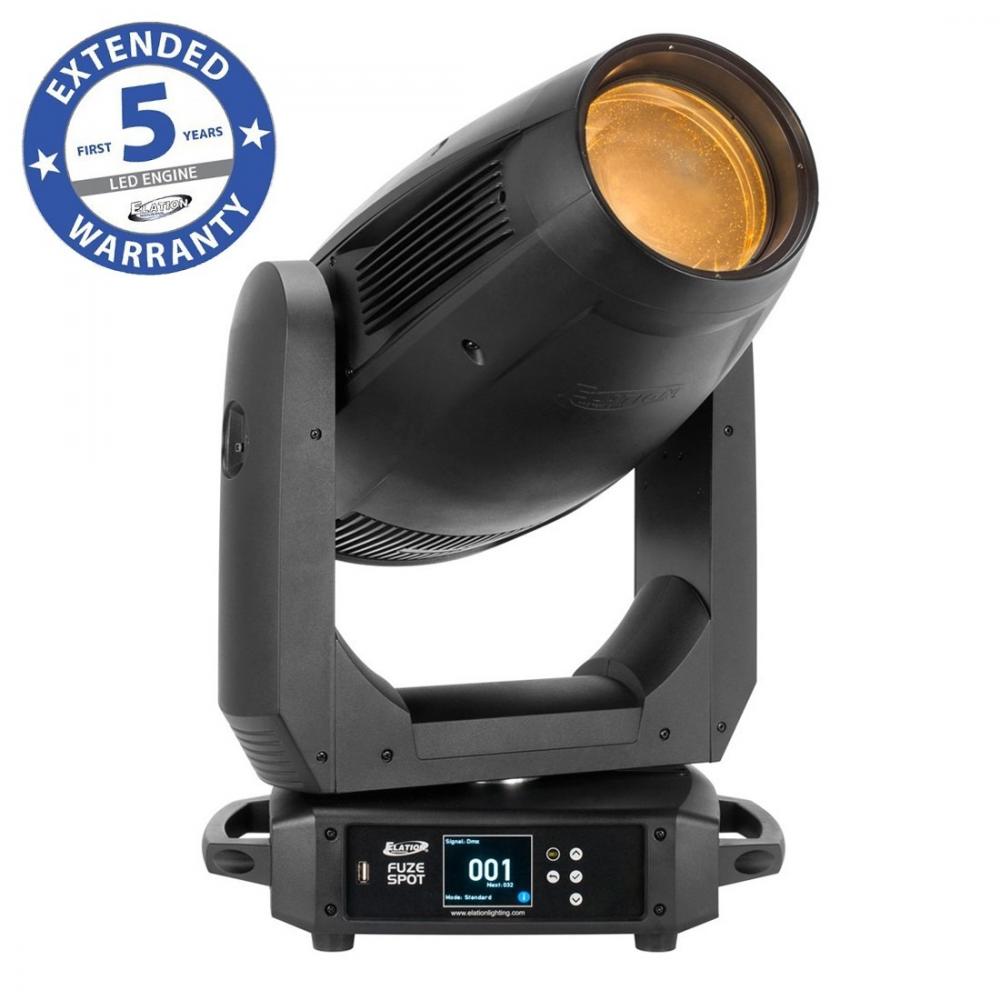

The Fuze Spot is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue Mint and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10.000 lumens. Virtual color temperature, magenta / green adjustment plus color gel emulation provide the designer with immediate access to the impressive LED color array. The Fuze Spot is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.
GAEB
TEXT
|
short summary |
The Fuze Spot is an automated LED spot luminaire with high color quality and full feature set designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required.
|
product type |
Moving Light LED Spot
|
product code |
1237000212
|
order code |
1237000212
|
product description |
FEATURES Extended color RGBMA LED Engine, 92 CRI Two rotating Gobo Wheels plus Animation Wheel Iris, Prism, and Frost Wide Zoom Range from 7° to 42° SOURCE 305W 6,500K RGBMA LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming. PHOTOMETRIC DATA 10,100 Total Lumen Output CRI 92 Zoom Range 7° - 42° Beam Angle7.5° - 39.9° Field Angle 8.6° - 44.2° EFFECTS Motorized Zoom Variable Frost Filter 4 Facet Prism Motorized Iris Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe COLOR RGBMA Color Array CMY Emulation Virtual Color Correction Green/Magenta Shift Virtual Gel Swatch Book GOBOS 2x 6 Rotating / Indexing Interchangeable Glass Gobos Animation Wheel CONTROL / CONNECTIONS 4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37) 16-bit Pan, Tilt, and Dimming Control DMX Adjustable LED Frequency DMX, RDM Protocol Support 4 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display Locking 5pin XLR Connector In/Out IP65 Locking Power Connector In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 16.0” (407mm) Width: 10.1" (256mm) Vertical Height: 27.4" (698mm) Weight: 46.3 lbs. (21kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 466W Max Power Consumption 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 1589.06 |
short, neutral tender spec text |
Fuze Spot™ The Fuze Spot is an automated LED spot luminaire with high color quality and full feature set designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. The luminaire shall be a yoke moving head with 305W (6,500K) RGBMA LED engine and CRI of 92. Lumen output shall be over 10,000 and the luminaire shall operate flicker-free with an average LED life of 30,000 hours. LED frequency shall be DMX adjustable. A virtual gel swatch book, virtual color correction, magenta/green adjustment plus CMY emulation shall be included. A motorized 7 to 42 degree zoom shall be included. It shall house 2 x gobo wheels, each with 6 rotating, indexing, interchangeable glass gobos. An animation wheel shall be included. A 4-facet prism, motorized iris and high speed electronic shutter and strobe shall be included. A variable frost filter shall be included as well as variable 16-bit dimming curve modes. Pan, tilt and dimming control shall be 16-bit. The luminaire shall operate via DMX and RDM protocols and include 5-pin DMX in/out and Power in/out connections. The luminaire shall have a 4-button touch control panel and 180° reversible full-color LCD menu display. Max power consumption shall be 466W and a multi-voltage universal auto switching power supply shall be included. It shall measure 407mm x 256mm x 698mm (LxWxH) and weigh 21 kg. GAEB TEXT |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
29 ch
|
control channels, max |
41 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Electrical | |
power consumption amps, max |
1.83 A
|
power consumption watt, max |
440.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
external PSU |
no
|
Mechanical | |
weight |
21.00 kg
|
width |
256.00 mm
|
height |
698.00 mm
|
length |
407.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
10100 lm
|
beam angle/zoom, min |
7.00 °
|
beam angle/zoom, max |
42.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
305.00 W
|
optics/projection type |
Spotlight
|
multichip LED |
no
|
number of separate pixel zones |
1
|
LED light source 'look' |
multicolor LEDs
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2400 K
|
color temperature, max |
8500 K
|
secondary light source |
none
|
drop-in frosts |
1 pcs
|
max CRI |
92 CRI
|
out lumen in silent mode. Max |
10100 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
no
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
UV light source |
no
|
AMBER light source |
yes
|
YELLOW light source |
no
|
CYAN light source |
yes
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
2 pcs
|
number of rotating gobos |
12 pcs
|
beam shapers/framing/barndoors |
no
|
prism |
yes
|
other beam effects |
yes
|
separate CTO wheel |
no
|
prism morphing |
no
|
animation wheels |
1 pcs
|
animation wheel functionality |
continous rotation
|
Luminous efficacy |
29.50 lm/W
|
CMY colormixing |
other
|
