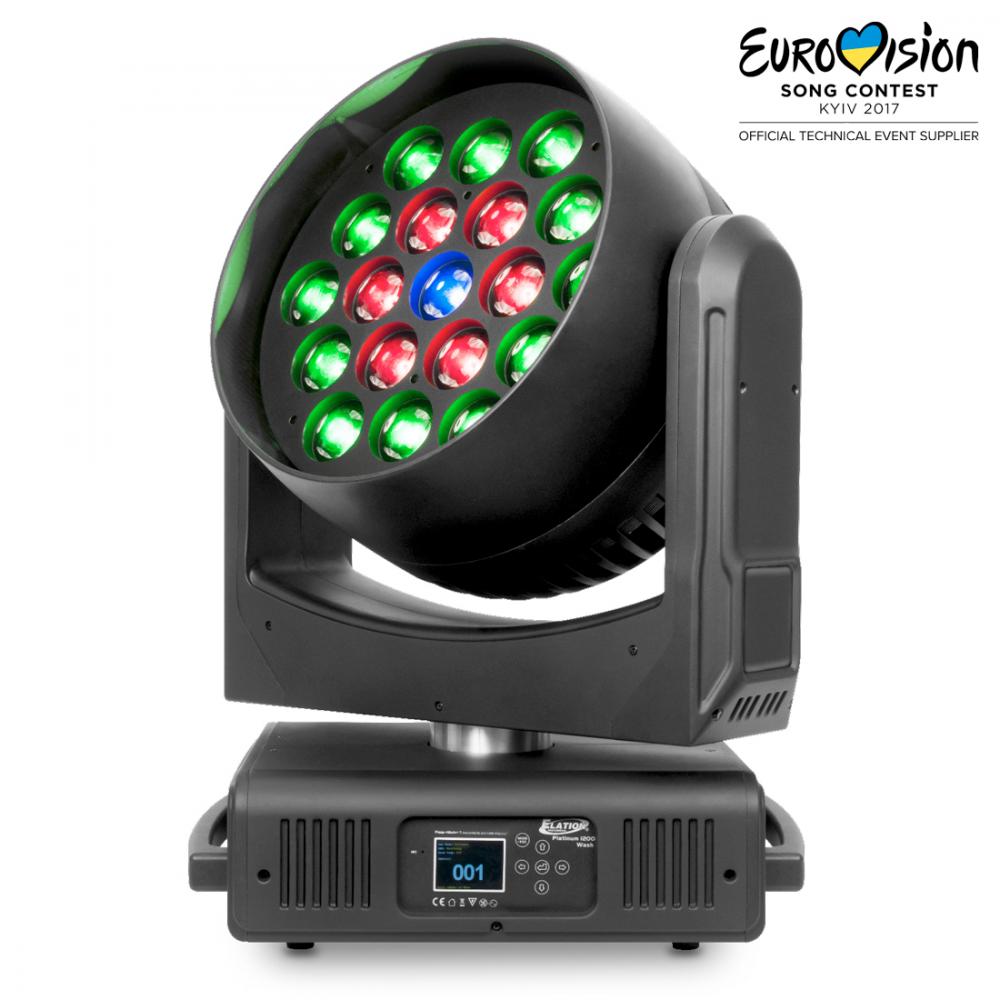

Platinum 1200 Wash
Elation Professional
Technical specifications, datasheets, descriptions and tender texts for Platinum 1200 Wash
| Info | |
|---|---|
| tender specification text |
When LED power is needed the Platinum 1200 Wash™ delivers. This extremely bright LED color wash moving head luminaire with nineteen 60W Osram™ multi-chip RGBW LEDs produces color washes on par with 1500W discharge fixtures. Features include a 8° to 77° motorized zoom, pixel controlled LEDs, advanced cooling and movement control systems and much more. It makes the Platinum 1200 Wash the perfect unit for the bigger concert tours, festivals and stadium shows.
GAEB
TEXT
|
| short summary |
The Platinum 1200 Wash is an extremely bright LED moving head wash luminaire with 19 x 60W RGBW LEDs and zoom capable of a wide range of colorful projections.
|
| product type |
Moving Light LED Wash
|
| product description |
FEATURES High Power Moving Head Wash Luminaire 19x 60W Osram™ RGBW LEDs Pixel or Pixel Ring Controlled LEDs 8° - 77° Wide Zoom Range Pan/Tilt Lock Advanced Cooling Control Systems Adjustable Refresh Frequency and Gamma Variable Dimming Curves Flicker Free Operation for Broadcast TV and Film SOURCE 19x 60W Osram™ Multi-Chip LEDs 50,000 Hour Average Lamp Life* PHOTOMETRIC DATA 41,730 LUX 3,877 FC @ 16.4’ (5m) (Min. Zoom) 3,637 LUX 338 FC @ 16.4’ (5m) (Max. Zoom) EFFECTS Pixel or Pixel Ring Controlled LEDs High Speed Electronic Shutter and Strobe Variable Dimming Curves COLOR RGBW Multi-Chip LEDs Variable Color Temperature (2,700K – 8,000K) CONTROL / CONNECTIONS 3 DMX Channel Modes (17 / 35 / 93) DMX, Art-NET, sACN and Kling-NET Support RDM (Remote Device Management) Adjustable Refresh Frequency (900 - 25,000Hz) Adjustable Gamma (2.0, 2.2, 2.4, 2.8) 8 / 16 Bit Pan, Tilt and Dimming Control 6 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display Battery Powered Menu Display 5pin DMX In/Out RJ45 etherCON In/Out (Art-NET, sACN and Kling-NET) powerCON 32A Power In SIZE / WEIGHT Length: 21.0” (533mm) Width: 16.1” (410mm) Vertical Height: 23.2” (588mm) Weight: 86.0 lbs. (39 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 2000W Max Power Consumption 14°F to 113°F (-10°C to 45°C) INCLUDED ITEMS 2 Omega Brackets powerCON 32A to Schuko Cable |
| product code |
1237000153
|
| order code |
1237000153
|
| short, neutral tender spec text |
The luminaire shall be an LED yoke moving head wash light with 19 60W RGBW LEDs and an 8° - 77° motorized zoom. It shall be capable of emitting 41,730 Lux @ 5m (Min. Zoom). Color temperature shall be variable from 2,700K - 8,000K. The luminaire shall allow for individual pixel and pixel ring control. Dimming shall be 0-100% and variable dimming modes shall be included. The luminaire shall have strobe capability. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. It shall include high efficiency low noise cooling and movement control systems. The luminaire shall operate via DMX, RDM, Art-NET, KlingNet™ and sACN protocols. It shall include a 6-button touch control panel and 180° reversible full color LCD menu display. Max power consumption shall be 2000W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall include 5-pin DMX in/out, RJ45 ethernet in/out and locking Power 32A in connections. It shall measure 533mm x 410mm x 558mm (LxWxH) and weigh 39 kg.
GAEB
TEXT
|
| product link | |
| Connectors | |
| total number of DMX inputs |
1 pcs
|
| total number of DMX outputs |
1 pcs
|
| DMX connector types |
5pin
|
| built-in Switch |
no
|
| Control | |
| max Dimmer resolution |
16 bit
|
| control channels, min |
17 ch
|
| control channels, max |
93 ch
|
| RDM |
yes
|
| wireless dmx |
no
|
| protocol-DMX |
both
|
| protocol-Artnet |
both
|
| Electrical | |
| power consumption amps, max |
8.33 A
|
| power consumption watt, max |
2000.00 W
|
| AC Volts, min |
100 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| operating temp, min |
-10.00 °C
|
| operating temp, max |
45.00 °C
|
| PWM rate |
25000.00
|
| built-in dimmer |
LED PWM
|
| power input connector |
Powercon
|
| cooling |
active
|
| external PSU |
no
|
| Mechanical | |
| weight |
39.00 kg
|
| width |
410.00 mm
|
| height |
588.00 mm
|
| length |
533.00 mm
|
| pan range |
630 °
|
| tilt range |
250 °
|
| color |
black
|
| truss mountable |
yes
|
| recessed installation |
no
|
| Optical | |
| beam angle/zoom, min |
8.00 °
|
| beam angle/zoom, max |
77.00 °
|
| light source |
LED
|
| Number of light sources |
19 pcs
|
| wattage per light source |
60.00 W
|
| optics/projection type |
Washlight
|
| multichip LED |
yes
|
| number of separate pixel zones |
19
|
| LED light source 'look' |
multicolor LEDs
|
| shutter/strobe frequency, max |
25 Hz
|
| variable/linear frost |
no
|
| color temperature, min |
2700 K
|
| color temperature, max |
800 K
|
| secondary light source |
none
|
| beam shape |
round
|
| WARM WHITE LED source |
no
|
| COLD WHITE LED source |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
| UV light source |
no
|
| AMBER light source |
no
|
| YELLOW light source |
no
|
| CYAN light source |
no
|
| fixed/virtual colorwheels |
1 pcs
|
| beam shapers/framing/barndoors |
no
|
| prism |
no
|
| other beam effects |
no
|
| separate CTO wheel |
no
|
| prism morphing |
no
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Dimensional Drawings |
|---|
| elation_platinum_1200_wash_dimensional_drawings_022417.pdf |
| DMX Traits |
| elation_platinum_1200_wash_DMX_traits_020817.pdf |
| Manual |
| elation_platinum_1200_wash_user_manual_021117.pdf |
| Specification Sheet |
| elation_platinum_1200_wash_specification_sheet_022417.pdf |
