Info | |
---|---|
tender specification text |
When companies present their newest products, aesthetics are crucial and lighting plays a key role with auto shows placing an especially high demand on lighting. That was the impetus behind development of the cool-white Fuze Wash 575™ LED wash moving head luminaire with motorized beam control. When branding and presentation is at the highest level, the Fuze Wash 575’s single-lens COB LEDs project the extremely uniform level of light required.
GAEB
TEXT
|
short summary |

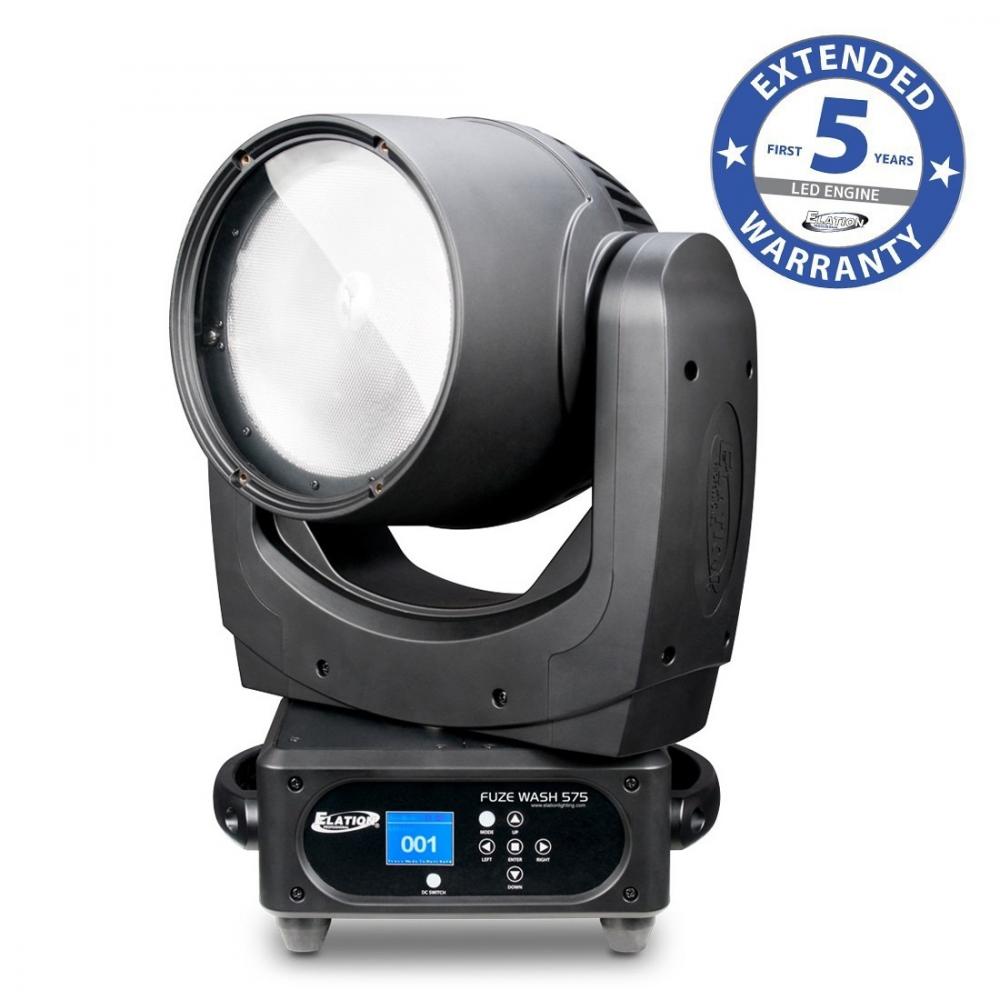

The Fuze Wash 575 is a moving head wash luminaire with single-lens cool-white COB LEDs that projects the homogenized, flat field of light required for exhibition/auto show purposes.
|
product type |
Moving Light LED Wash
|
product description |
FEATURES Cool White / Daylight Single Source Par Moving Head High Output 95CRI 6,800K COB LED 11° to 40° Motorized Zoom Smooth 16-Bit Pan and Tilt Movement Variable Dimming Curve Modes RDM (Remote Device Management) Flicker Free Operation for TV and FILM Multiple Unit Power Linking Optional Snoot Lens SOURCE 350W 95CRI 6,800K Cool White / Daylight COB LED 50,000 Hour Average LED Life* *LED life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming. PHOTOMETRIC DATA 35,425 LUX 3,291 FC @6.6' (2m) (11° Full On) 6,502 LUX 604 FC @6.6' (2m) (40° Full On) Zoom Range 11° - 40° Beam Angle 10.6°- 41.2° Field Angle 39.7°- 52.6° EFFECTS 11° - 40° Motorized Zoom Electronic Strobe Variable Dimming Curve Modes COLOR Cool White / Daylight CONTROL / CONNECTIONS 2 DMX Channel Modes (11 Total Channels) 7 Button Control Panel and LCD Menu Display Smooth 16-Bit Pan and Tilt Movement RDM (Remote Device Management) 5pin DMX and IP65 Locking Power Cable In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 13.3” (337.7mm) Width: 9.0” (228.8mm) Vertical Height: 18.33” (465.7mm) Weight: 27.0 lbs. (12.2kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 425W Max Power Consumption Multiple Unit Power Linking 5°F to 113°F (-15°C to 45°C) BTU/hr (+/- 10%) 1449.25 |
product code |
1237000172
|
order code |
1237000172
|
short, neutral tender spec text |
The luminaire shall be a yoke moving head wash light with 350W cool white 6800K COB LED engine. The luminaire shall include an 11° - 40° motorized zoom and shall be capable of emitting 5,668 Lux @ 5m (Min. Zoom). Color temperature shall be 6800K and CRI shall be greater than 95. Dimming shall be 0-100% and variable dimming modes shall be included. The luminaire shall have strobe capability. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall operate via DMX and RDM and shall include 5-pin DMX in/out and Power in/out connections. It shall include a 7-button touch control panel and 180° reversible full color LCD menu display. Max power consumption shall be 425W and a multi-voltage universal auto switching power supply shall be included. The luminaire It shall measure 338mm x 229mm x 466mm (LxWxH) and weigh 12.2 kg. GAEB TEXT |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
9 ch
|
control channels, max |
11 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Electrical | |
power consumption amps, max |
1.77 A
|
power consumption watt, max |
425.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
external PSU |
no
|
Mechanical | |
weight |
12.20 kg
|
width |
229.00 mm
|
height |
466.00 mm
|
length |
338.00 mm
|
pan range |
630 °
|
tilt range |
250 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
10995 lm
|
beam angle/zoom, min |
11.00 °
|
beam angle/zoom, max |
40.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
350.00 W
|
optics/projection type |
Washlight
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
no
|
color temperature, min |
6800 K
|
color temperature, max |
6800 K
|
secondary light source |
none
|
max CRI |
95 CRI
|
out lumen in silent mode. Max |
10995 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
beam shapers/framing/barndoors |
no
|
prism |
no
|
other beam effects |
no
|
separate CTO wheel |
no
|
prism morphing |
no
|
Luminous efficacy |
31.40 lm/W
|
COLD WHITE LED color temp |
6800 K
|
COLD WHITE LED power |
350.00 W
|
