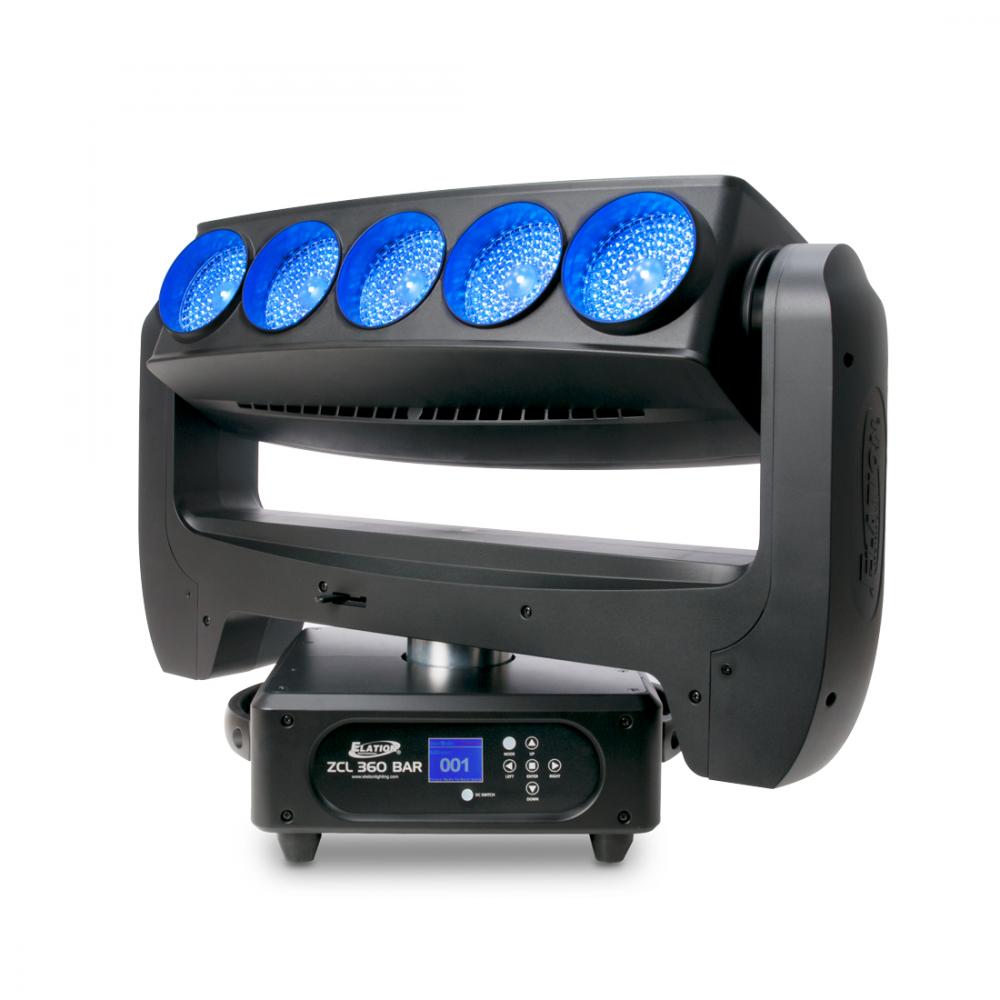

The ZCL 360 BAR™ is a versatile moving zoom bar effect luminaire featuring (5) individual 60W RGBW 4-in-1 LEDs and a zoom range from 4° to 44°. It features fast and precise 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, 3pin and 5pin DMX in/out, RJ45 etherCON in/out, and powerCON in/out connections, flicker free operation for TV and Film, 6 button control full color 180° reversible menu display, 530W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

The ZCL 360 BAR™ is a versatile moving bar effect batten luminaire with zoom and continuous 360° pan and tilt rotation. The high-output ACL-type LED effect light projects a homogenized 4° color-changing beam from each lens.

The luminaire shall be a moving bar effect batten luminaire with five individual 60W RGBW LEDs and shall be capable of 16-bit continuous 360° pan and tilt rotation. The luminaire shall include a 4° - 44° zoom and shall be capable of full individual pixel control. The luminaire shall be capable of emitting 25,230 Lux @ 3m (Min. Zoom). Dimming shall be 0-100% and variable dimming modes shall be included. The luminaire shall have strobe capability. The luminaire shall operate flicker-free with an average LED life of 100,000 hours. The luminaire shall operate via DMX, RDM, Art-NET and KlingNET™ protocols. It shall include a 6-button touch control panel and 180° reversible full color LCD menu display. Max power consumption shall be 530W and a multi-voltage universal auto switching power supply shall be included. The luminaire shall include 3-pin and 5-pin DMX In/Out, RJ45 etherCON in/out and PowerCON in/out connections. It shall measure 638mm x 260mm x 459mm (LxWxH) and weigh 24 kg.
GAEB
TEXT

FEATURES
Versatile Moving Zoom Bar Effect Luminaire
Zooming Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Wide 4° To 44° Zoom Range
(5) Pixel Control RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management

SOURCE
(5) 60W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*

PHOTOMETRIC DATA
25,230 LUX 2,344 FC @ 9.8’ (3m) (Min. Zoom)
819 LUX 76 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS
Individual Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves

COLOR
RGBW

CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 21 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin & 5pin DMX In/Out
RJ45 etherCON In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out

SIZE / WEIGHT
Length: 25.11” (638mm)
Width: 10.24” (260mm)
Vertical Height: 18.0” (459mm)
Weight: 53.0 lbs. (24.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
530W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS
powerCON to Schuko Cable
