Info | |
---|---|
tender specification text |
This line of IP65-rated PAR color changers features a 6-color LED multi-chip that provides an expanded palette of colors, including stunning ambers, true whites and ultraviolet. Useful for indoor or outdoor productions or installations as a wash light, uplight, wall wash, truss warmer and more, the SixPar’s high-power, single-lens, RGBWA+UV LEDs provide a creative color boost to the lighting designer toolbox and is available in two versions –SixPar 200WMG and SixPar 300WMG with 12 and 18 x 12-watt LEDs respectively. These all-weather marine-grade versions of Elation’s SixPar 200 and SixPar 300 color changers are wrapped in an elegant all-white housing, they can be used outdoors, at sea, at outdoor performance areas or even on the pool deck where products with marine-grade specifications are highly appreciated. GAEB TEXT |
short summary |

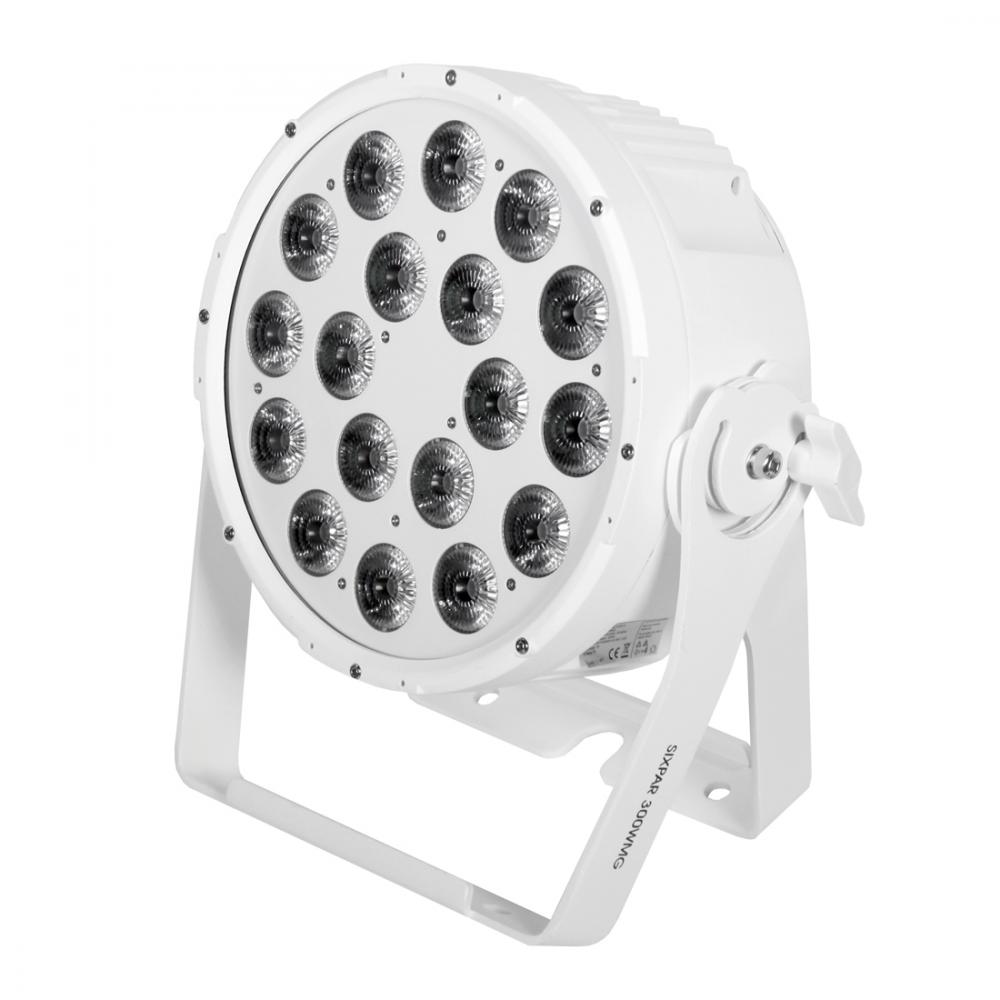

The SixPar 300WMG is an IP65 White Marine Grade LED Par color changer with a 6-color LED multi-chip that provides an expanded palette of colors.
|
product type |
LED Par Outdoor
|
short, neutral tender spec text |
The luminaire shall be an IP-65 Marine Grade PAR color changer with white housing and (18) 12W 6-IN-1 RGBAW+UV LEDs. The luminaire shall operate flicker-free with an average LED life of 100,000 hours. The luminaire shall be capable of emitting 3,950 Lux @ 3m. It shall include color and chase macros and have 15° beam and 25° field angles. The luminaire shall house an electronic strobe and be capable of 0-100% dimming with 5 variable dimming curve modes. The luminaire shall operate via DMX and RDM and include a 4-button touch control panel and LCD menu display. IP DMX In/Out and IP Power In/Out connections shall be included. Exterior construction shall be of white die-cast aluminum and the luminaire shall contain a dual yoke / floor stand. Multiple unit power linking shall be possible and the unit shall have no fans. Max power consumption shall be 220W and a multi-voltage universal auto switching power supply (110-250v) shall be included. It shall measure 365mm x 157mm x 365mm (LxWxH) and weigh 8.1 kg.
GAEB
TEXT
|
product code |
1621000072
|
order code |
1621000072
|
product description |
FEATURES IP65 Dust and Water Protection Marine Grade Coated Anti-Corrosion Housing Multi-color LED Par Luminaire 12W RGBAW+UV LEDs 15° Beam and 25° Field Angle Dual Yoke / Floor Stand No Fans, Silent Operation Variable Dimming Curves Flicker Free Operation for Broadcast TV and Film SOURCE 18x 12W RGBAW+UV Multi-Chip LEDs 3,430 Total Output Lumens 100,000 Hour Average LED Life* PHOTOMETRIC DATA 3,950 LUX 367 FC @ 9.8’ (3m) EFFECTS High Speed Electronic Shutter and Strobe Variable Dimming Curves COLOR RGBAW+UV Multi-Chip LEDs CONTROL / CONNECTIONS 4 DMX Channel Modes (6 - 12) DMX Support RDM (Remote Device Management) 8 / 16 Bit Dimming Control 4 Button Control Panel LCD Menu Display IP65 DMX In/Out IP65 Power In/Out SIZE / WEIGHT Length: 14.4” (365mm) Width: 6.2” (157mm) Vertical Height: 14.4” (365mm) Weight: 18.0 lbs. (8.1 kg) ELECTRICAL / THERMAL AC 110-250V - 50/60Hz 220W Max Power Consumption 14°F to 113°F (-10°C to 45°C) UV Wavelength: 395nm INCLUDED ITEMS Male Schuko to IP Female Power Cable 6.6 ft. (2m) Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m) Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m) |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Control | |
control channels, min |
6 ch
|
control channels, max |
12 ch
|
max Dimmer resolution |
16 bit
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Electrical | |
power consumption amps, max |
0.92 A
|
power consumption watt, max |
220.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
250 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
65
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
dimmable by external dimmer |
no
|
built-in dimmer |
LED PWM
|
Battery powered |
no
|
cooling |
passive
|
external PSU |
no
|
PWM rate |
25000.00
|
Mechanical | |
weight |
8.10 kg
|
width |
157.00 mm
|
height |
365.00 mm
|
length |
365.00 mm
|
color |
white
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
beam angle/zoom, min |
15.00 °
|
beam angle/zoom, max |
15.00 °
|
light source |
LED
|
optics/projection type |
PAR
|
beam shapers/framing/barndoors |
no
|
Number of light sources |
18 pcs
|
wattage per light source |
12.00 W
|
beam shape |
round
|
multichip LED |
yes
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
LED light source 'look' |
multicolor LEDs
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
UV light source |
yes
|
AMBER light source |
yes
|
YELLOW light source |
no
|
CYAN light source |
no
|
shutter/strobe frequency, max |
18 Hz
|
secondary light source |
none
|
