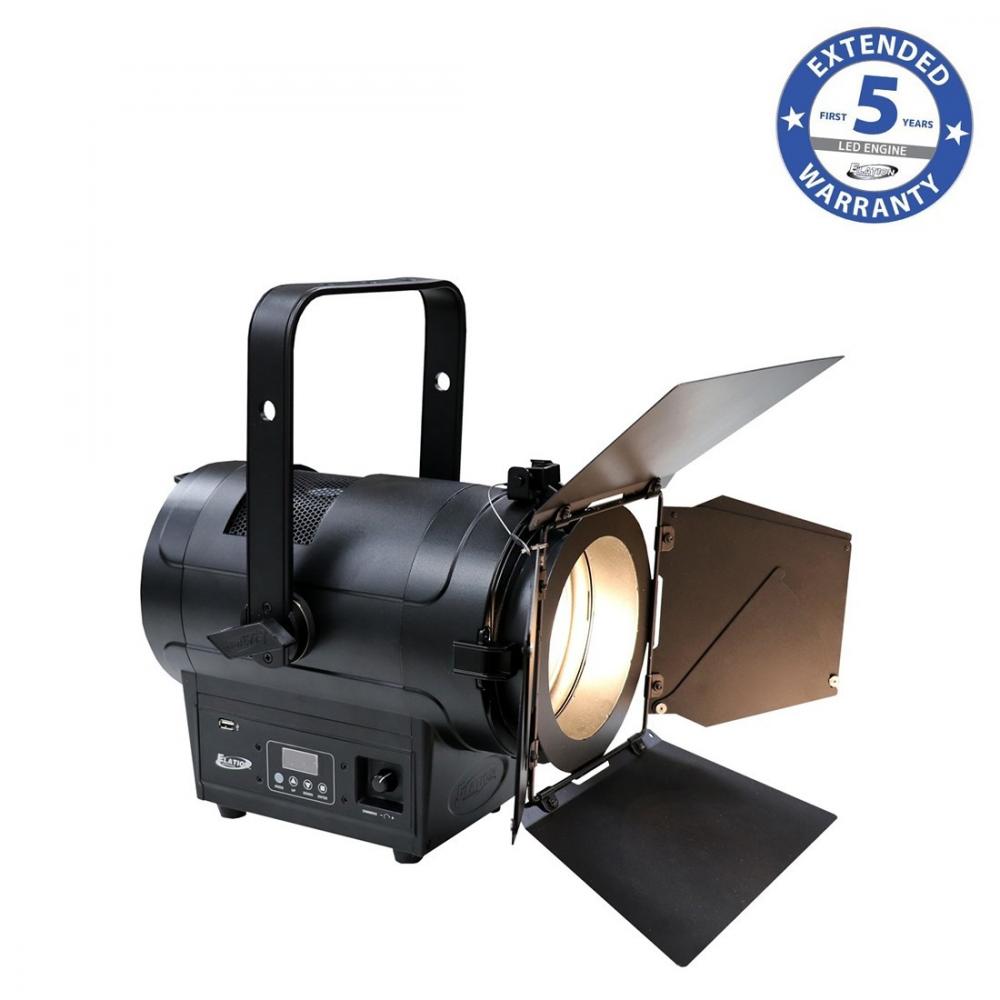

The KL Fresnel Series™ feature 3,000K LED engines, Wide manual zoom range and motorized zoom for the KL Fresnel 8, silent operation mode, manual and DMX controlled dimming, rotating 8-leaf barn doors and gel frame holder included, adjustable refresh frequency and gamma brightness, variable dimming curves, DMX, RDM (Remote Device Management), 5pin DMX in/out and power in/out connections, USB firmware service port, flicker free operation for TV and Film, 4 button and recessed dial(s) control panel and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT

FEATURES
150W 3,000K >95CRI Warm White LED Engine
6,500+ Total Lumen Output
Output On Par with Tungsten Halogen Models
15° to 38° Wide Manual Zoom
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
Gel Frame and Rotating Barn Doors (included)
3 Clamp Position Adjustable Mounting Yoke

SOURCE
150W >95CRI 3,000K Warm White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
6,500+ Total Lumen Output
17,829 LUX 1,656 FC @6.6’ (2m) (Min Zoom / Full ON)
4,412 LUX 410 FC @6.6’ (2m) (Max Zoom / Full ON)
Zoom Range 15° - 38°
Beam Angle 15.5° - 38°
Field Angle 23.4° - 51.8°

EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
Warm White 3,000K

CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 locking power cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 19.62” (498.5mm)
Width: 10.75” (273mm)
Vertical Height: 15.47” (393mm)
Weight: 18.5 lbs. (8.4kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 6Pcs @ 110V / 14Pcs @ 240V

INCLUDED ITEMS
Gel Frame and Rotating Barn Doors

The luminaire shall be a warm-white light LED luminaire with a 150W 3,000K LED engine. The luminaire shall operate flicker-free with an average LED life of 50,000 hours. The luminaire shall be capable of emitting 6,500 total lumens and have a CRI >97. The luminaire shall contain an 15° - 38° manual zoom. Full range dimming shall be manually or DMX controllable. The luminaire shall house rotating 8-leaf barn doors and include a gel frame holder. The luminaire shall include a silent operation mode and operate flicker free. The luminaire shall include a high speed strobe, be capable of 0-100% dimming and include variable dimming curves. The luminaire shall operate via DMX and RDM protocols and include a 4-button and recessed dial(s) control panel with LCD menu display. LED refresh rate and gamma brightness shall be adjustable. 5 pin DMX In/Out and and power in/out connections shall be included. Max power consumption shall be 180W and a multi-voltage universal auto switching power supply shall be included. A USB firmware service port shall be included. The unit shall measure 344mm x 272mm x 398mm (LxWxH) and weigh 8.4 kg.
