Info | |
---|---|
tender specification text |
These dynamic-white luminaires are ideal for soft light use in film, TV and broadcast environments. Both luminaires house cool white and warm white LEDs with linear color temperature control for a wide choice of variable shade projections from warm white tungsten to cool white daylight. Uniform flat-field output combines with conveniences like dimmer and color temperature rotary control dials. White color reproduction is of the highest quality with a CRI over 95 for more accurate color reproduction. They include useful design features like smooth 16-bit dimming, variable dimming curve effects and electronic strobe and each fixture includes 8-leaf adjustable and removable barn doors for accurate projections with no light spill.
GAEB
TEXT
|
short summary |

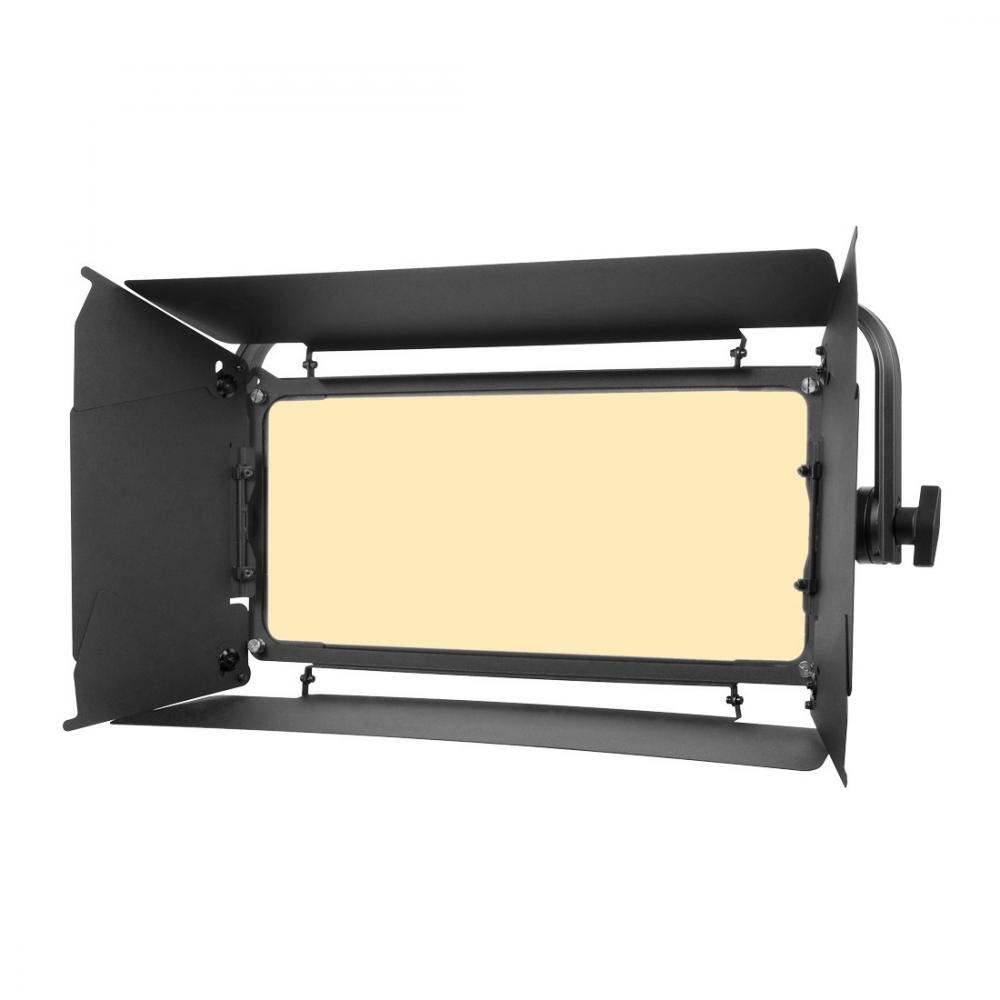

The TVL Softlight DW™ is a color temperature variable soft light LED array panel housing warm white and cool white LEDs. It is an ideal color-temperature-variable soft light for broadcast, TV and film lighting.
|
product type |
Dynamic White LED Panel
|
product code |
1236300077
|
order code |
1236300077
|
product description |
FEATURES Dynamic White LED Softlight Luminaire Manual and DMX Controlled Color Temperature and Dimming Cool White and Warm White LEDs (3,200K – 5,600K) 115° Beam Angle Including 8-Leaf Barn Door 40° DoPchoice Snapgrid Available No Fans, Silent Operation Adjustable Refresh Frequency and Gamma Variable Dimming Curves Flicker Free Operation for Broadcast TV and Film SOURCE 240 Cool White and 240 Warm White 0.5W LEDs 6,700 Total Output Lumens, 3,200K – 5,600K, 95CRI 20,000 Hour Average LED Life* PHOTOMETRIC DATA 575 LUX 53 FC @ 6.6’ (2m) EFFECTS High Speed Electronic Shutter and Strobe Variable Dimming Curves COLOR Cool White and Warm White LEDs Variable Color Temperature (3,200K – 5,600K) CONTROL / CONNECTIONS 6 DMX Channel Modes (2 - 7) DMX and Art-NET Support RDM (Remote Device Management) Adjustable Refresh Frequency (900 – 25,000Hz) Adjustable Gamma (2.0, 2.2, 2.4, 2.8) 8 / 16 Bit Dimming Control 4 Button 2 Dial Control Panel Manual and DMX Controlled Color Temperature and Dimming 180° Reversible LCD Menu Display Optional Battery Pack Connector 5pin DMX In/Out RJ45 etherCON IN (Art-NET) Power Twist TR1 Power In SIZE / WEIGHT Length: 26.5” (673mm) Width: 5.7” (144mm) Vertical Height: 12.1” (307mm) Weight: 18.0 lbs. (8.2 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 99W Max Power Consumption 14°F to 113°F (-10°C to 45°C) INCLUDED ITEMS Removable Barn Doors Power Twist TR1 to Schuko Cable |
product link | |
short, neutral tender spec text |
The luminaire shall be a soft light LED luminaire with (240) Warm White and (240) Cool White 0.5W LEDs. It shall operate flicker-free and have smooth flicker-free dimming (0-100%) with variable dimming curves. The luminaire shall be capable of emitting 6,700 total lumens and emit light at a 115° beam angle. The unit shall have a CRI over 95 and be color temperature adjustable from 3,200K – 5,600K. 8-leaf adjustable/removable barn doors shall be included. The luminaire shall operate silently and have no fans. LED refresh rate and gamma brightness shall be adjustable. The luminaire shall be controllable via DMX, RDM and Art-NET protocols. The luminaire shall include 5- pin DMX In/Out, RJ45 etherCON in and Power Twist TR1 in connections. A 4-button touch control panel with two dials and LCD menu display shall be included. A connector for an optional battery pack shall be included. Max power consumption shall be 99W and a multi-voltage universal auto switching power supply shall be included. It shall measure 673mm x 144mm x 307mm (LxWxH) and weigh 8.2 kg.
GAEB
TEXT
|
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Control | |
control channels, min |
2 ch
|
control channels, max |
7 ch
|
max Dimmer resolution |
16 bit
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
input
|
Electrical | |
power consumption amps, max |
0.42 A
|
power consumption watt, max |
100.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
dimmable by external dimmer |
no
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
DC Volts, min |
48 V
|
DC Volts, max |
48 V
|
Battery powered |
yes
|
cooling |
passive
|
external PSU |
no
|
PWM rate |
25000.00
|
Mechanical | |
weight |
8.20 kg
|
width |
144.00 mm
|
height |
307.00 mm
|
length |
673.00 mm
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
6700 lm
|
beam angle/zoom, min |
115.00 °
|
beam angle/zoom, max |
115.00 °
|
light source |
LED
|
optics/projection type |
Floodlight
|
beam shapers/framing/barndoors |
yes
|
color temperature, min |
3200 K
|
color temperature, max |
5800 K
|
max CRI |
95 CRI
|
out lumen in silent mode. Max |
6700 lm
|
Number of light sources |
480 pcs
|
wattage per light source |
0.50 W
|
beam shape |
round
|
multichip LED |
no
|
WARM WHITE LED source |
yes
|
COLD WHITE LED source |
yes
|
Luminous efficacy |
67.00 lm/W
|
LED light source 'look' |
single color LED dots
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
WARM WHITE LED color temp |
3200 K
|
COLD WHITE LED color temp |
5600 K
|
other beam effects |
no
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
no
|
secondary light source |
none
|
