Info | |
---|---|
product description |

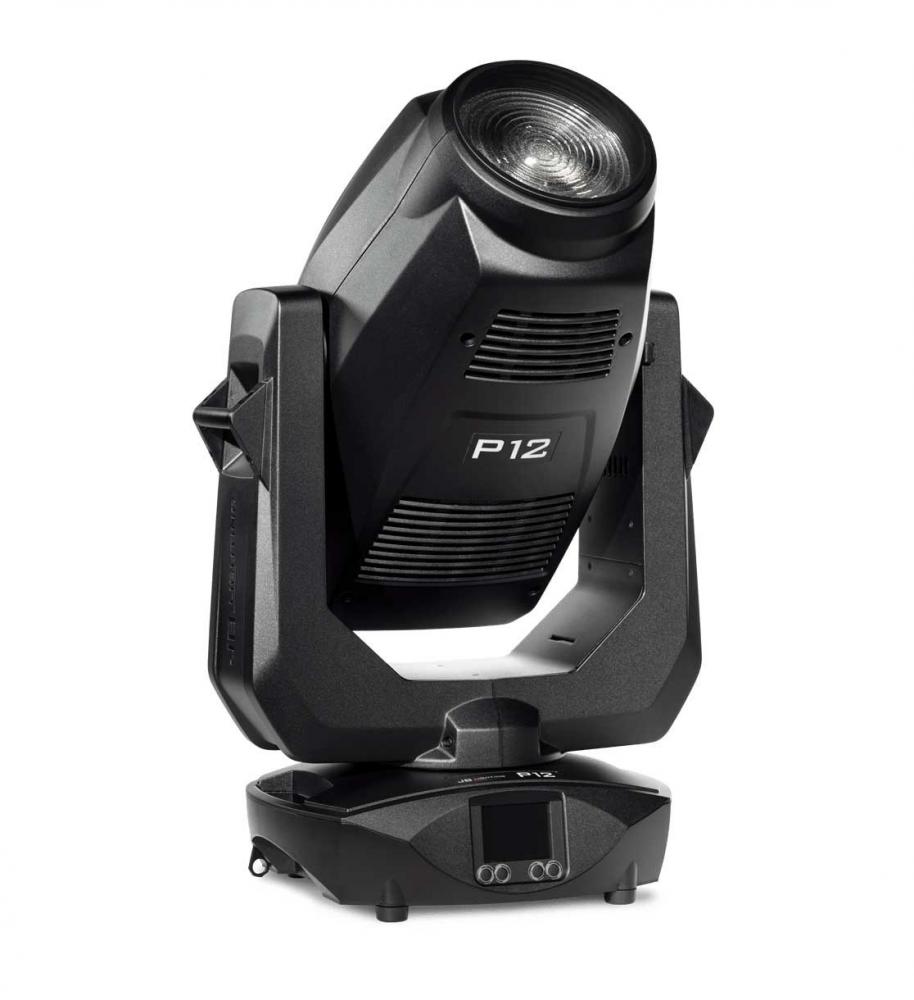

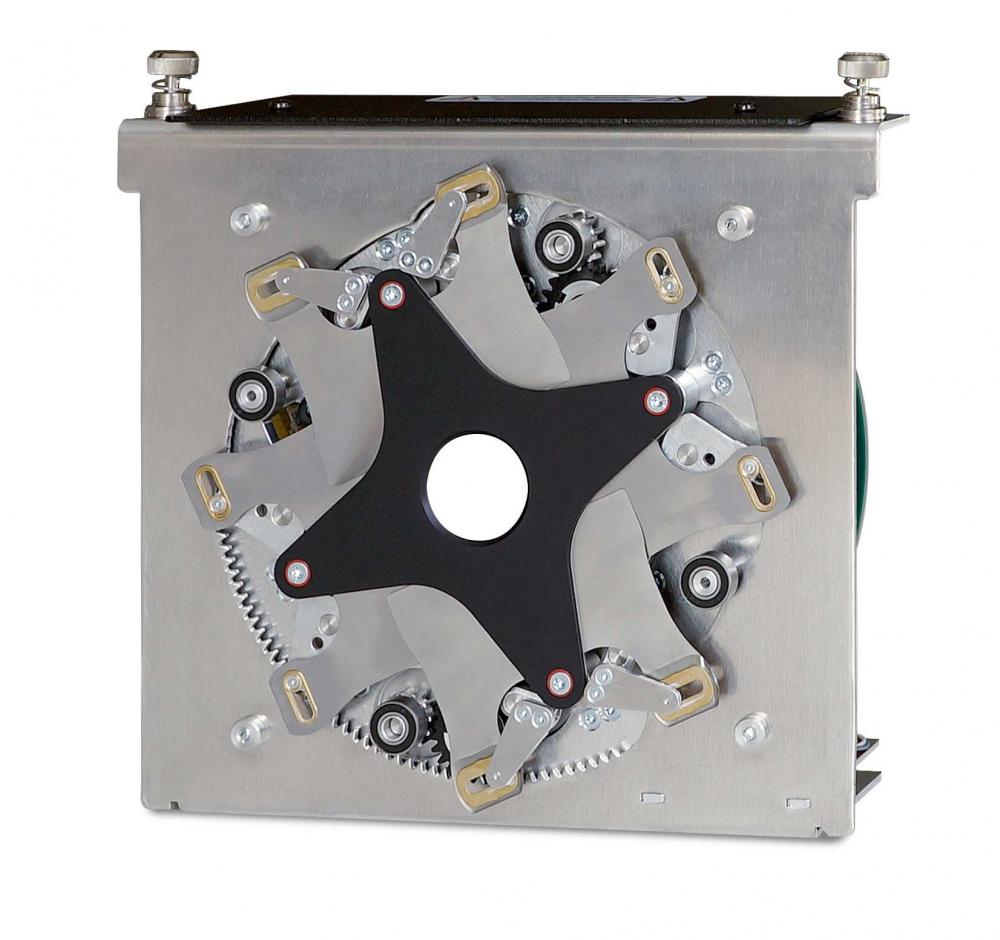

The P12 Wash with Fresnel lens is not only extremely bright with its 640 watt LED power, but also incredibly light, weighing only 23 kg. It is great fun to handle and operate and leaves a lasting impression with its wash optics and low-noise operation. JB-Moving lights combine innovative spirit, quality and sound market knowledge with excellent beam characteristics for first-class lighting design. The P12 Wash is a prime example of this, and not only thanks to its 11°– 66° zoom range and framing module. In addition to the two color wheels and frost filters, the P12 Wash also impresses with its six gobos, which have been specially designed for wash applications. The P12 Wash is right at home in the brightness class of comparable moving lights with 1,200 watts and a power consumption of just 800 watts. The P12 Wash is a versatile powerhouse with features such as: • Zoom range from 11°– 66° (1:6) • Framing module with 4 blades • CMY color mixing unit and linear CTO • 1 color wheel with 8 colors • 1 color wheel with 8 correction filters • 1 gobo wheel with 6 rotating gobos • Electronic shutter with pre-programmed pulse and ramp functions • 2 stepless, variable frost filters (soft edge, flood frost) • Infinitely adjustable high-speed iris • Graphic color-touch display, rotated electronically • Flicker-free operation, camera mode 100 Hz – 3 kHz • 4 carrying handles for easy handling • Ultra-quiet 29 dB(A) |
tender specification text |

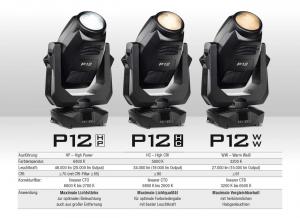

P12 Wash WW (Warm White) 640W General LED-based moving head wash light with a white LED light source with 640 watts. Due to the optical properties, the headlight should be used as a wash light. Light source standard The headlight should be equipped with a white 640W light source. The headlight should produce at least 15000 lumens of output. The color temperature should be 3200 Kelvin. The CRI is said to be greater than 91. Control It is controlled via DMX512. The control should be possible via cable as well as a radio DMX built in as standard. A WLAN / Bluetooth module for controlling the headlamp is also to be integrated. The control of the LED module should be possible in at least two different control curves (linear and exponential). Pan / tilt, the color mixing and the rotations / positioning should be controllable in 16bit. The dimmer must work absolutely continuously from 0-100%. In order to adapt to different camera systems, different repetition frequencies should be selectable for the LED module via DMX / RDM. Optical system Requirements for the optical properties of the headlamp are a defined light beam with minimal scattered light, a minimum beam angle of 12 ° and a maximum beam angle of 65 ° (1/10 peak) Control The headlamp should be controlled with the control protocols DMX512, RDM, Artnet, sACN, have 5-pin lockable XLR connectors and 2 lockable Ethernet connections (IN and OUT) for connecting the data lines. The selection and storage of all device settings that can be set by the user is to be carried out via an operating panel on the headlamp with a graphic color touch LCD display or via the data line in connection with a control unit. The graphic display should be rotatable. The headlight should have a battery backup for setting the headlight properties, e.g. for setting the DMX address. The headlight should have the option of at least 20 program steps that can be saved on the device. Several headlights should be able to be connected together in the form of a series connection, with one device acting as a master, the program settings of which are to be adopted by the connected headlights. The spotlight should have a built-in receiver module for control via radio DMX at the factory. The protocol of the radio module must be compatible with lumen radio transmitters. Effect unit The effect unit should have 2 color wheels, one with 8 full or half colors and one with 8 converison filters, 1 rotating gobo wheel with 6 rotating gobos, sparkle effect via the effect engine. In addition, the effect unit should also have an iris, an aperture slide module (+ -55 ° rotatable) with 4 apertures, each aperture completely closing, 2 stepless, interchangeable frost filters and focus. The zoom range should cover at least 12 ° - 65 ° (1/10 peak). The color mixing should take place via CMY with a variable CTO. Installation The headlamp should have a base and be operated in any position. The headlamp should be installed with two adapter plates that can be screwed together with clamps. The adapter plates should be able to be mounted on the headlamp with Camloc quick-release fasteners. A reinforced anchor point on the basement of the headlight for a safety rope must be available. Mains connection and power supply The headlight should be able to be operated with the mains voltages of 100V - 240V and 50 - 60 Hz. The power consumption should be at a maximum of 800VA. The headlight should have powerCON TRUE1 IN / OUT connections. Cleaning and maintenance The headlamp should be as service-friendly as possible. These include easy-to-clean lenses, effects and air filters, as well as slide-in technology for CMY / CTO, color wheels, gobo wheel, iris and shutter slides. The slide-in modules must be designed so that they can be pulled out without additional disconnection of the cable connections! The optical system should be dust-proof. If necessary, the LED module should be able to be replaced by the experienced user himself and without soldering. Surrounding The headlamp should be operated in a dry, well-ventilated environment, the temperature of which does not exceed 45 ° C. Dimensions and weight Maximum dimensions: W 421 x H 682 x D 264 mm. Weight: 23 kg. GAEB TEXT |
short summary |
The P12 Wash with Fresnel lens is not only extremely bright, but also incredibly light, weighing only 23 kg. It is great fun to handle and operate. Thanks to its excellent beaming properties, aperture slider module and special full effect equipment for wash applications, it leaves a lasting impression. With its zoom range of 11°-66° and 640 watts of LED power, the P12 is right at home in the brightness class of comparable moving heads with 1,200 watts. |
product type |
Moving Light LED Wash
|
product code |
VCP125
|
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
Bluetooth |
yes
|
total network ports FastEthernet |
2 pcs
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
36 ch
|
control channels, max |
54 ch
|
RDM |
yes
|
wireless dmx |
yes
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
protocol-sACN |
both
|
Electrical | |
operating temp, max |
45.00 °C
|
PWM rate |
3000.00
|
built-in dimmer |
LED current-controlled
|
power consumption amps, max |
3.33 A
|
power consumption watt, max |
800.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
cooling |
active
|
power input connector |
Truecon
|
power output connector |
Truecon
|
noise level dba at 1m distance |
29 db
|
Mechanical | |
weight |
23.00 kg
|
width |
421.00 mm
|
height |
682.00 mm
|
length |
264.00 mm
|
pan range |
540 °
|
tilt range |
280 °
|
truss mountable |
with optional accessories
|
Optical | |
output lumen, max |
15000 lm
|
beam angle/zoom, min |
11.00 °
|
beam angle/zoom, max |
66.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
640.00 W
|
optics/projection type |
Washlight
|
shutter/strobe frequency, max |
20 Hz
|
variable/linear frost |
yes
|
color temperature, min |
3200 K
|
color temperature, max |
6500 K
|
min CRI |
91 CRI
|
drop-in frosts |
2 pcs
|
max CRI |
91 CRI
|
lens diameter |
150 mm
|
fixed/virtual colorwheels |
2 pcs
|
gobowheels total |
1 pcs
|
rotating gobowheels |
1 pcs
|
number of rotating gobos |
6 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
55 °
|
separate CTO wheel |
flag
|
CMY colormixing |
flag
|
