SQUARE 20 LENGTH 50 CM

Prolyte Group

1

Technical specifications, datasheets, descriptions and tender texts for SQUARE 20 LENGTH 50 CM

Info
product description

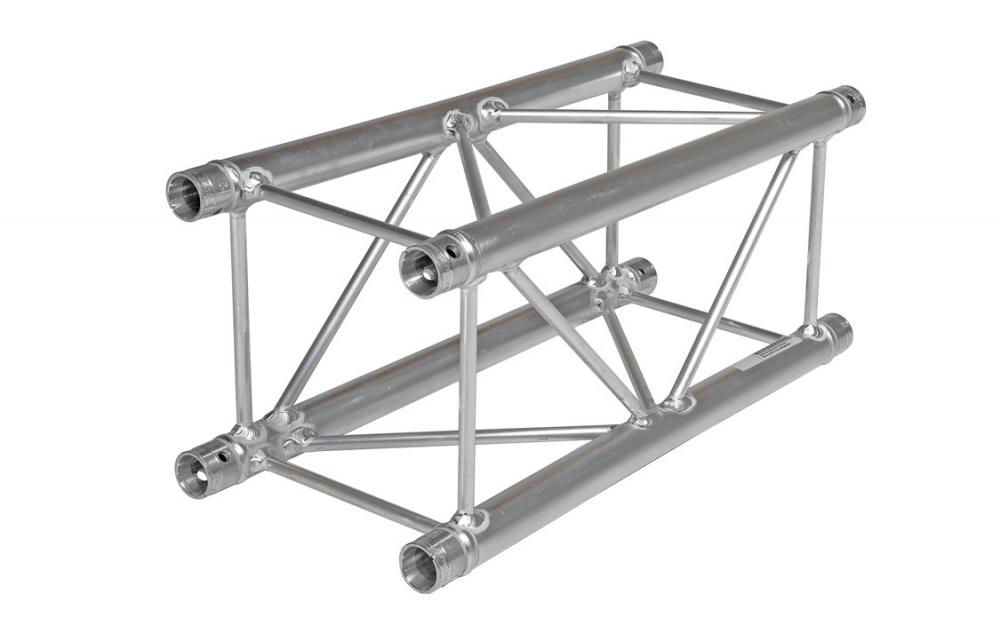

The E20 is a small and aesthetically pleasing truss. Compact construction, optimum strength and high-tech appearance make this truss an appropriate decorative element with numerous applications. Equipped with the CCS4 conical coupling system, the E20 truss is fast and easy to assemble. E20 truss is available in triangular and square profiles and a range of corners and accessories.
product code
E20V-L050
order code
111020072
Product Name
SQUARE 20 LENGTH 50 CM
Mechanical
weight
1.25 kg
Statical
max UDL 5m span
366.00 kg
max UDL 10m span
186.00 kg
max UDL 12m span
148.80 kg
max UDL 15m span
108.00 kg
max UDL 20m span
64.00 kg
max CPL 5m span
172.30 kg
max CPL 10m span
86.50 kg
max CPL 12m span
69.90 kg
max CPL 15m span
51.90 kg
max CPL 20m span
31.50 kg
deflection at max UDL 5m span
21.00 mm
deflection at max UDL 10m span
85.00 mm
deflection at max UDL 12m span
123.00 mm
deflection at max UDL 15m span
192.00 mm
deflection at max UDL 20m span
342.00 mm
deflection at max CPL 5m span
17.00 mm
deflection at max CPL 10m span
68.00 mm
deflection at max CPL 12m span
98.00 mm
deflection at max CPL 15m span
154.00 mm
deflection at max CPL 20m span
273.00 mm
