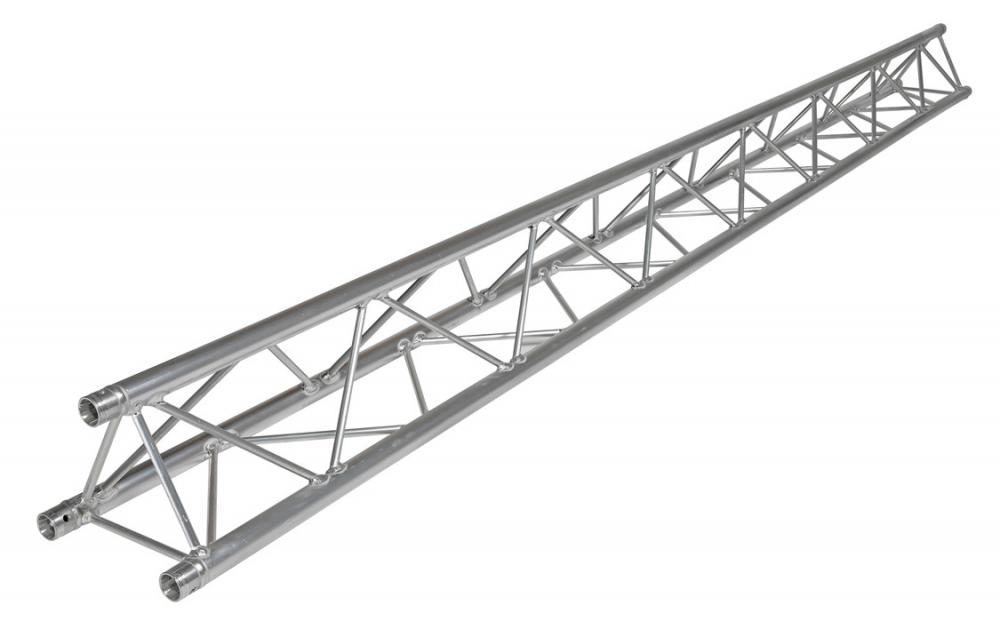

TRIANGLE 20 LENGTH 300 CM
Prolyte Group
Technical specifications, datasheets, descriptions and tender texts for TRIANGLE 20 LENGTH 300 CM
| Info | |
|---|---|
| product description |
The E20 is a small and aesthetically pleasing truss. Compact construction, optimum strength and high-tech appearance make this truss an appropriate decorative element with numerous applications. Equipped with the CCS4 conical coupling system, the E20 truss is fast and easy to assemble. E20 truss is available in triangular and square profiles and a range of corners and accessories.
|
| product code |
E20D-L300
|
| order code |
111020032
|
| Product Name |
TRIANGLE 20 LENGTH 300 CM
|
| Mechanical | |
| weight |
4.53 kg
|
| Statical | |
| max UDL 5m span |
170.50 kg
|
| max UDL 10m span |
74.00 kg
|
| max UDL 12m span |
56.40 kg
|
| max UDL 15m span |
37.50 kg
|
| max CPL 5m span |
78.00 kg
|
| max CPL 10m span |
35.70 kg
|
| max CPL 12m span |
27.50 kg
|
| max CPL 15m span |
18.40 kg
|
| deflection at max UDL 5m span |
28.00 mm
|
| deflection at max UDL 10m span |
110.00 mm
|
| deflection at max UDL 12m span |
159.00 mm
|
| deflection at max UDL 15m span |
248.00 mm
|
| deflection at max CPL 5m span |
22.00 mm
|
| deflection at max CPL 10m span |
88.00 mm
|
| deflection at max CPL 12m span |
127.00 mm
|
| deflection at max CPL 15m span |
199.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| CANTILEVER LOADS TRUSS TYPE E20D EN |
|---|
| CANTILEVER LOADS TRUSS TYPE E20D EN 20156.pdf |
| LOADING TABLE TRUSS TYPE E20D LENGTHS |
| LOADING TABLE TRUSS TYPE E20D LENGTHS EN 20153.pdf |
| TUV CERTIFICATE TRUSS TYPE E20D DE |
| TUV CERTIFICATE TRUSS TYPE E20D DE 20143.pdf |
| USER MANUAL TRUSS SERIES GENERAL LENGTHS EN |
| USER MANUAL TRUSS SERIES GENERAL EN 20152.pdf |
