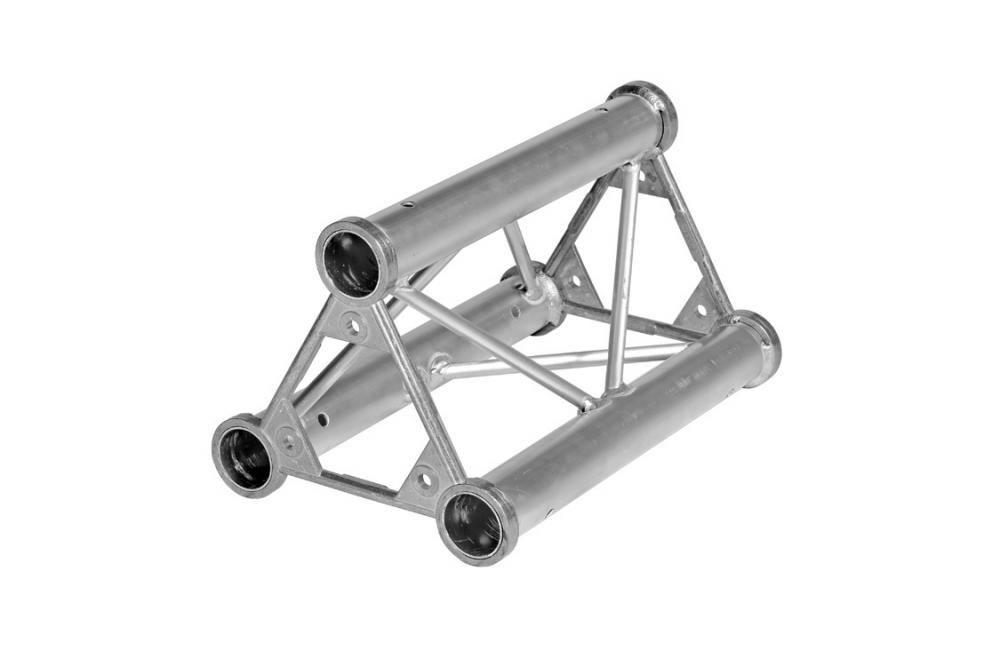

TRIANGLE 23 LENGTH 40 CM
Prolyte Group
Technical specifications, datasheets, descriptions and tender texts for TRIANGLE 23 LENGTH 40 CM
| Info | |
|---|---|
| product description |
AstraLite truss is constructed of main tubes (50,8 x 1,6 mm) and diagonals (12,7 x 1,6 mm). With its medium-sized construction and relative strength this truss is specially aimed at applications that require permanent installation. Using a bolted internal tube connection the AstraLite is the preferred choice for any application that requires an economic solution. AstraLite truss is available in ladder, triangular and square profiles and a range of corners and accessories.
|
| product code |
AO3-L040
|
| order code |
112040011
|
| Product Name |
TRIANGLE 23 LENGTH 40 CM
|
| Mechanical | |
| weight |
1.05 kg
|
| Statical | |
| max UDL 5m span |
262.50 kg
|
| max UDL 10m span |
111.00 kg
|
| max UDL 12m span |
82.80 kg
|
| max CPL 5m span |
131.40 kg
|
| max CPL 10m span |
55.60 kg
|
| max CPL 12m span |
41.30 kg
|
| deflection at max UDL 5m span |
14.00 mm
|
| deflection at max UDL 10m span |
57.00 mm
|
| deflection at max UDL 12m span |
82.00 mm
|
| deflection at max CPL 5m span |
17.00 mm
|
| deflection at max CPL 10m span |
68.00 mm
|
| deflection at max CPL 12m span |
98.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| LOADING TABLE TRUSS TYPE ASTRALITE 3 LENGTHS |
|---|
| LOADING TABLE TRUSS TYPE ASTRALITE 3 LENGTHS EN 20153.pdf |
| TUV CERTIFICATE TRUSS TYPE AO3 |
| TUV CERTIFICATE TRUSS TYPE AO3 20158.pdf |
| USER MANUAL TRUSS SERIES GENERAL LENGTHS EN |
| USER MANUAL TRUSS SERIES GENERAL EN 20152.pdf |
