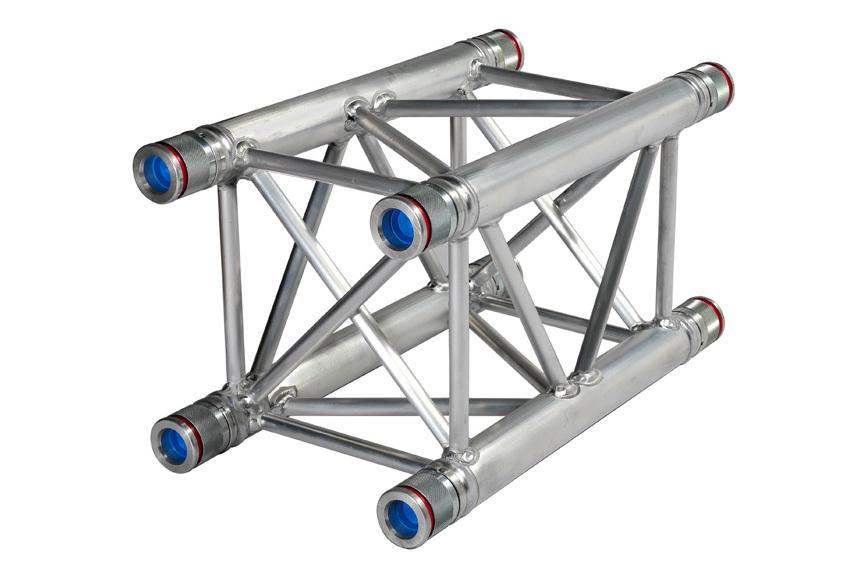

SQUARE H30 LENGTH 050CM VERTO
Prolyte Group
Technical specifications, datasheets, descriptions and tender texts for SQUARE H30 LENGTH 050CM VERTO
| Info | |
|---|---|
| product description |
Verto H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (16 x 2 mm). Equipped with the Verto coupling system, the Verto H30 truss is fast and easy to assemble. The Verto H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in a square profile and a range accessories.
|
| product code |
VER-H30V-L050
|
| order code |
111170004
|
| Product Name |
SQUARE H30 LENGTH 050CM VERTO
|
| Mechanical | |
| weight |
3.90 kg
|
| Statical | |
| max UDL 5m span |
1928.00 kg
|
| max UDL 10m span |
1208.00 kg
|
| max UDL 12m span |
980.40 kg
|
| max UDL 15m span |
745.50 kg
|
| max UDL 20m span |
496.00 kg
|
| max CPL 5m span |
1025.00 kg
|
| max CPL 10m span |
543.90 kg
|
| max CPL 12m span |
449.80 kg
|
| max CPL 15m span |
348.90 kg
|
| max CPL 20m span |
237.30 kg
|
| deflection at max UDL 5m span |
28.00 mm
|
| deflection at max UDL 10m span |
114.00 mm
|
| deflection at max UDL 12m span |
164.00 mm
|
| deflection at max UDL 15m span |
256.00 mm
|
| deflection at max UDL 20m span |
454.00 mm
|
| deflection at max CPL 5m span |
23.00 mm
|
| deflection at max CPL 10m span |
91.00 mm
|
| deflection at max CPL 12m span |
131.00 mm
|
| deflection at max CPL 15m span |
205.00 mm
|
| deflection at max CPL 20m span |
364.00 mm
|
