Info | |
---|---|
product description |

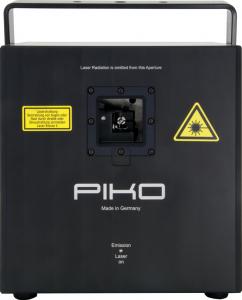

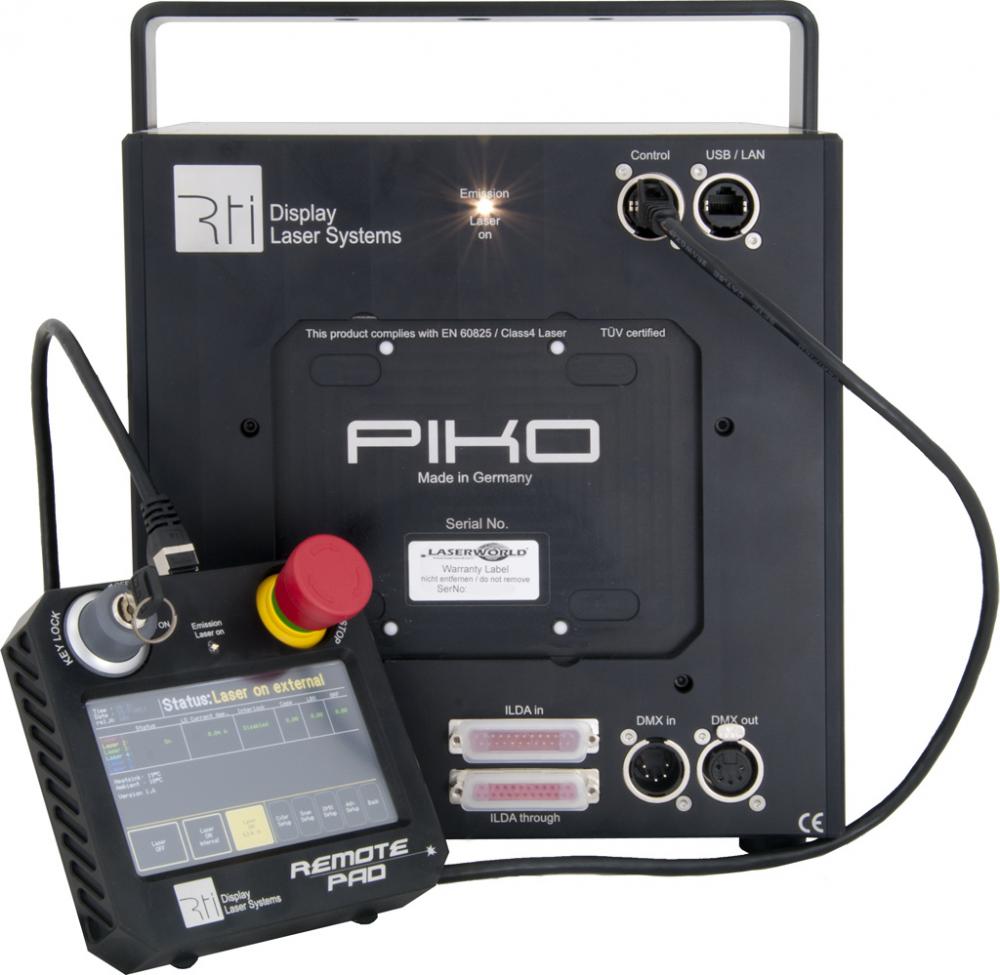

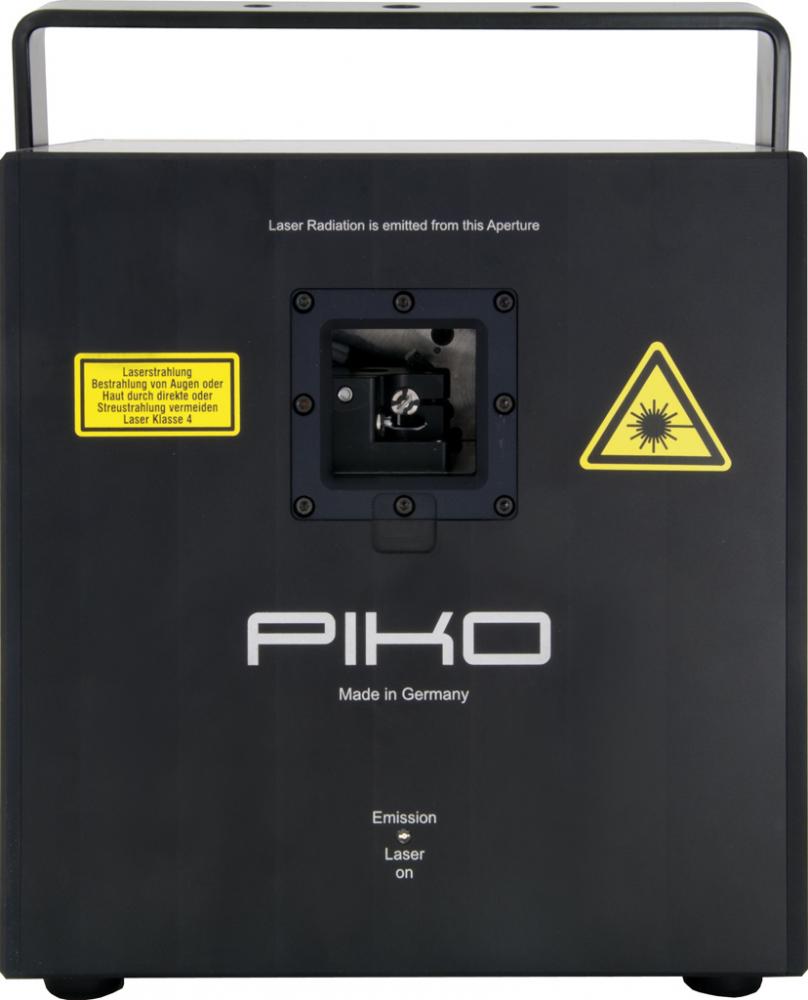

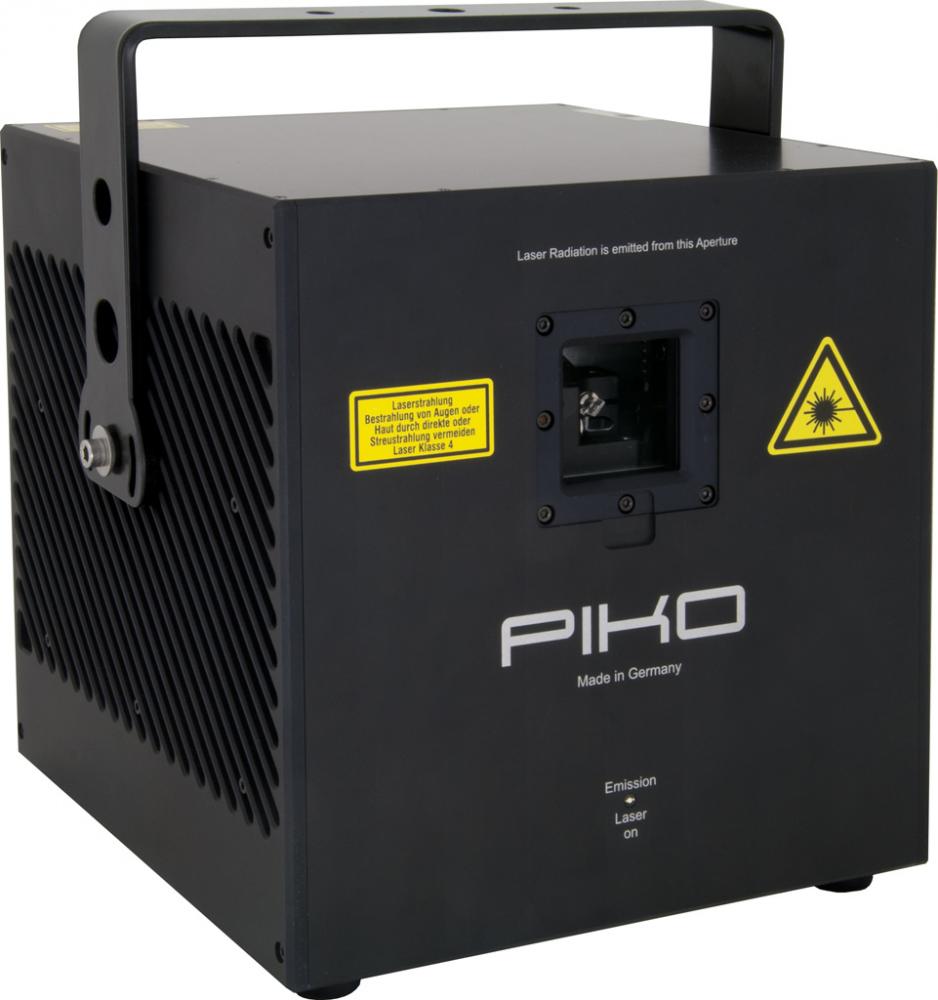

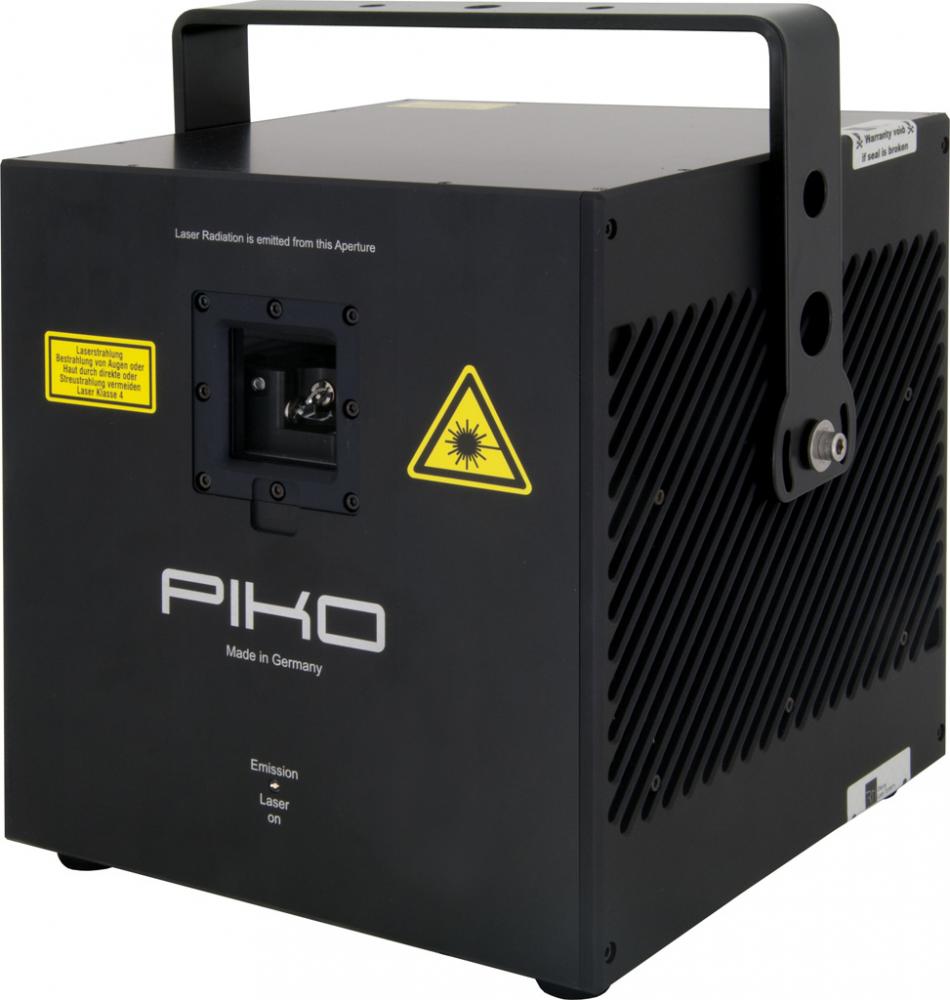

The RTI PIKO RGB 11 is made in Germany and a compact show laser system in a rugged, dust-proof housing that is ideally suited for demanding show laser applications . Among many advantages are: High-precision diode arrays and excellent divergence . 4 mm apertures ensure low interia and enable an extreme scan speed of 60 kpps@8° ILDA guaranteed output power after optics: 11'000 mW novel method for increasing the beam precision of the single-mode diodes a very bright and highly visible red at 638 nm newly developed electronics with calibration capability via a browser interface the emergency stop signal can be looped through several RTI PIKO systems, which means that one emergency stop is sufficient for all devices quality product, made in Germany ideal for indoor and outdoor applications, concerts, festivals, large events, graphics projections and long-distance projections The RTI PIKO RGB 11 impresses among other things with a guaranteed RGB output power of 11'000 mW . 2'750 mW at 638 nm for a very bright red combined with 3'000 mW / 520 nm green and 6'000 mW blue diode laser modules. The high-precision diode arrays allow a low beam diameter and at the same time an excellent divergence of . The beam precision of the single-mode diodes was significantly increased by a new method. The diode laser modules are manufactured by Ray Technologies in Germany. Small 4 mm apertures ensure a low inertia, which in turn enables extreme scan speeds . The CT-6210H scanners including RTI RayScan driver reach a maximum of 60 kpps@8° ILDA and a maximum scan angle of 60° at 35 kpps. By default, the RTI PIKO RGB 11 is controlled via ILDA and is equipped with newly developed electronics with calibration capability via a browser interface . In addition, color and scanner settings and other parameters can be configured directly via the browser application by connecting the laser directly via LAN (W-LAN is also possible with a suitable access point). Thanks to the browser interface, it is no longer necessary to operate the laser projector directly on the device (since this is often mounted at a height of several meters). All configurations can be conveniently done via a computer (PC, MAC, Linux), a tablet, or a mobile phone. A remote control pad ist available on request. Optionally the system can also be operated via LAN, DMX, SD card or in automatic mode. W-DMX and a remote control pad are available on request. On the back of the device, there is an 'ILDA-IN' interface as well as an 'ILDA-Through' to loop through the control signal. The emergency stop signal can also be looped through several RTI PIKO laser systems, which means that only one emergency stop is sufficient for all RTI PIKO devices connected to each other. Due to the dustproof housing , the maintenance effort is very low and the device is also suitable for tough touring applications . The powerful RTI PIKO RGB 11 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events . Demanding graphics projections or projections over long distances are possible without any problems. |
order code |
76401449999889
|
MSRP EUR |
15250.00 EUR
|
Product Name |
RTI PIKO RGB 11
|
Connectors | |
total number of ILDA inputs |
1
|
Electrical | |
AC Frequency, max |
60 Hz
|
power consumption watt, max |
500.00 W
|
AC Volts, min |
85 V
|
AC Volts, max |
250 V
|
AC Frequency, min |
50 Hz
|
Mechanical | |
weight |
13.00 kg
|
width |
250.00 mm
|
height |
265.00 mm
|
length |
250.00 mm
|
Optical | |
Laser class |
4
|
total laser output power |
11000 mW
|
laser scan angle |
60.00 °
|
galvo speed |
35.00 kpps
|
laser divergence |
1.00 mrad
|
RED light source wavelength |
638 nm
|
GREEN light source wavelength |
520 nm
|
BLUE light source wavelength |
450 nm
|
beam diameter |
4.00 mm
|
RED light source power |
2.75 W
|
GREEN light source power |
3.00 W
|
BLUE light source power |
6.00 W
|
