| Info | |
|---|---|
| order code |
51785988
|
| product link | |
| EAN |
4026397573633
|
| Product Name |

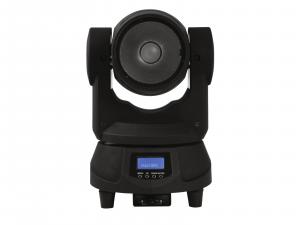

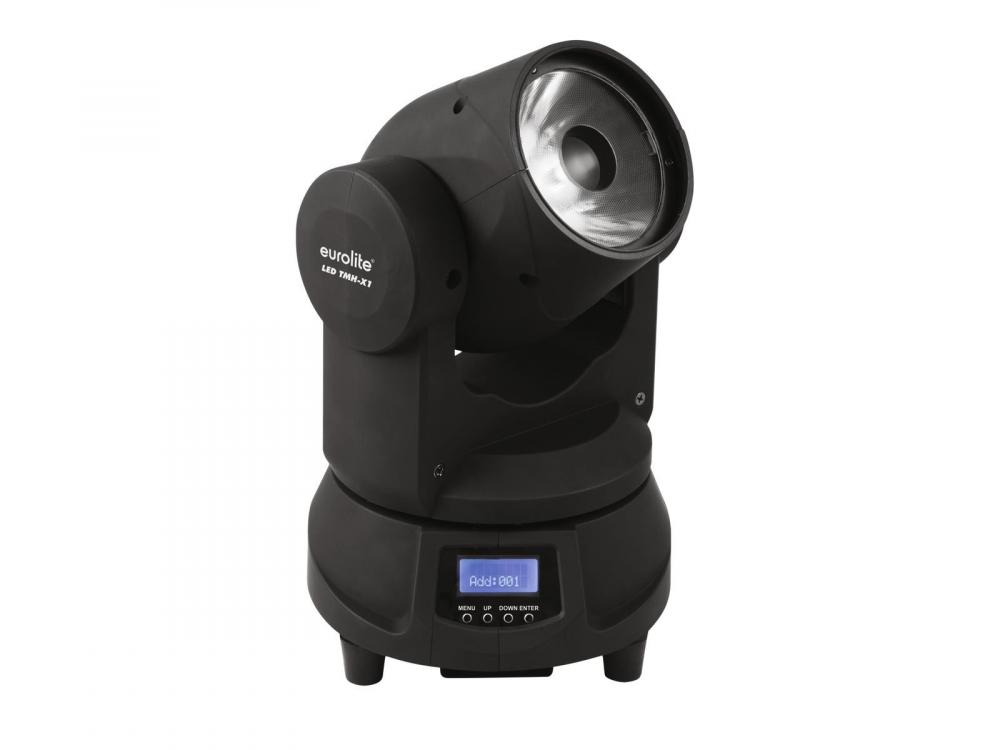

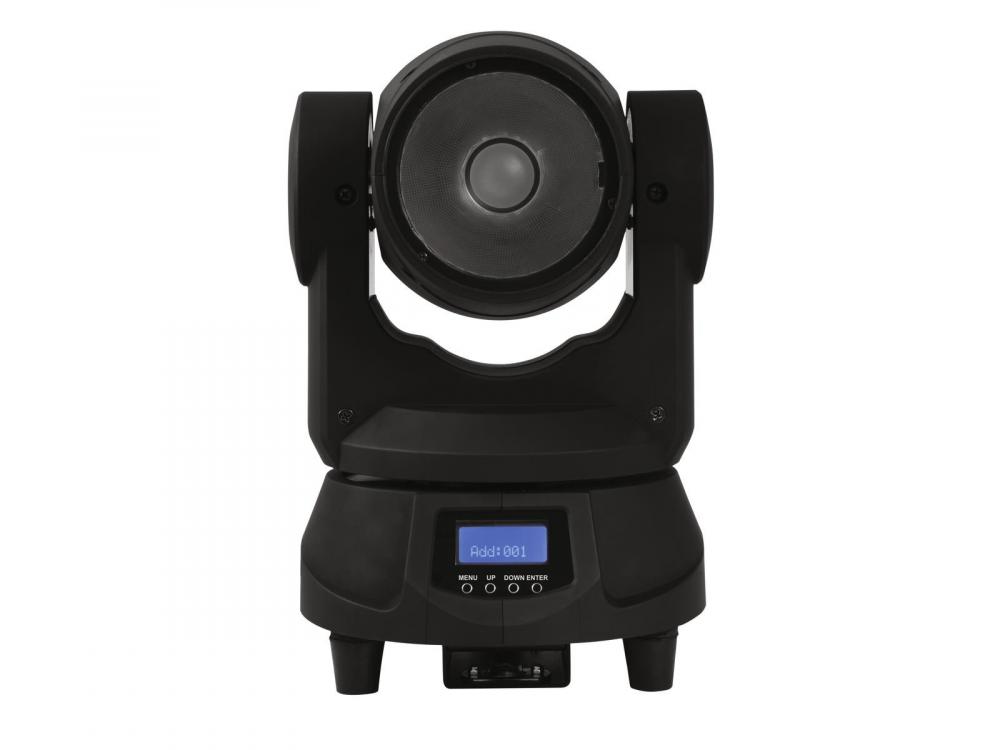

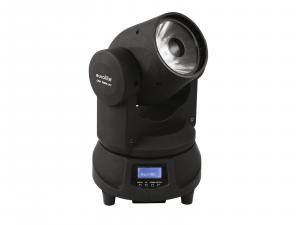

EUROLITE LED TMH-X1 Moving Head Beam
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 14 DMX connection: 3-pin XLR Flash-rate: 10 Hz Sound-control: via built-in microphone LED number: 1 LED type: 60 W RGBW (COB) Beam angle: 3° Maximum PAN-movement: 540° Maximum TILT-movement: 220° Dimensions (L x W x H): 207 x 196 x 313 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Lamp type: LED lamp Weight: 4 kg Cooling fan: Yes IP classification: IP20 Power consumption: 90 W Laser class: Without laser Beam angle: 3° Height: 31,3 cm Depth: 19,6 cm Width: 20,7 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 220° Pan tilt feedback Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) DMX channels: 14 LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW Power supply: 110-240 V AC, 50/60 Hz |
| main features |
60 W beam, compact, narrow angle, beautiful RGBW colors -Equipped with a 60 W COB LED with RGBW colors from Osram -Compact lightweight -Narrow beam angle -Positioning within 540° PAN and 220° TILT -Stepless RGBW color mixture -Masterdimmer -Internal programs -Sound-controlled via built-in microphone -Color presets -Strobe effect with adjustable speed -Automatic position correction -Exact positioning via 16 bit PAN/TILT movement resolution -DMX-controlled operation or stand-alone operation with Master/Slave function -Control board with LC display for adjusting the DMX-starting address, PAN/TILT Reverse, Reset -Switch-mode power supply for operation between 100 and 240 volts -Power connection via P-Con jack and included power cable with safety plug -Feed-through output allows to power up to 8 devices -DMX control via every standard DMX controller -Case color: Black -Effect: Single Beam -Projection: flicker-free -Power out: 1 x P-Con (Power out) gray, mounting version -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Control: DMX; Stand-alone -LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
14 ch
|
| control channels, max |
14 ch
|
| max Movement resolution |
16 bit
|
| Electrical | |
| power consumption watt, max |
60.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|

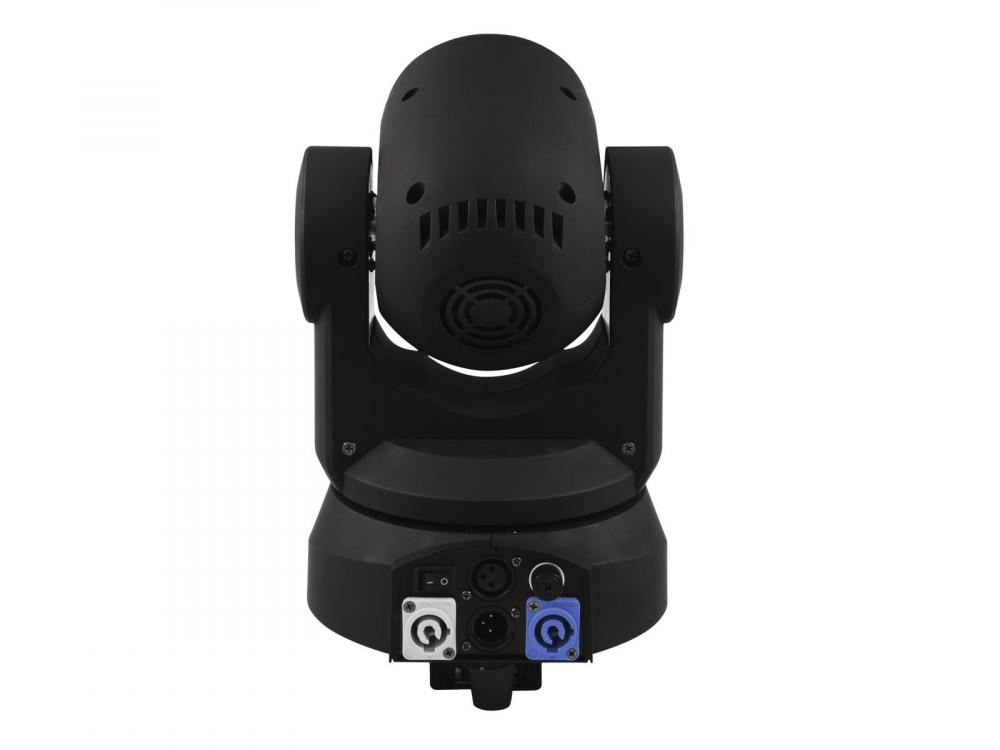

| power input connector |
Powercon
|
| cooling |
active
|
| Mechanical | |
| weight |
4.00 kg
|
| width |
207.00 mm
|
| height |
313.00 mm
|
| length |
196.00 mm
|
| pan range |
540 °
|
| tilt range |
220 °
|
| Optical | |
| beam angle/zoom, min |
3.00 °
|
| beam angle/zoom, max |
3.00 °
|
| light source |
LED
|
| Number of light sources |
1 pcs
|
| wattage per light source |
60.00 W
|
| multichip LED |
yes
|
| shutter/strobe frequency, max |
10 Hz
|
| COLD WHITE LED source |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
