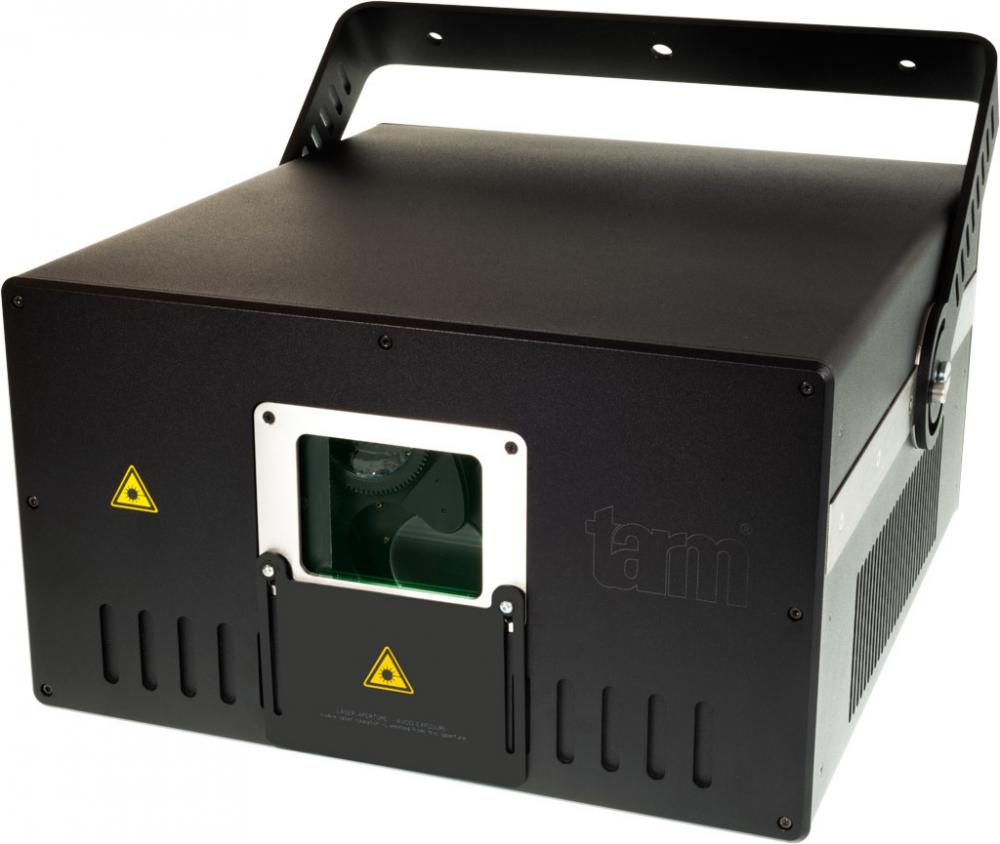

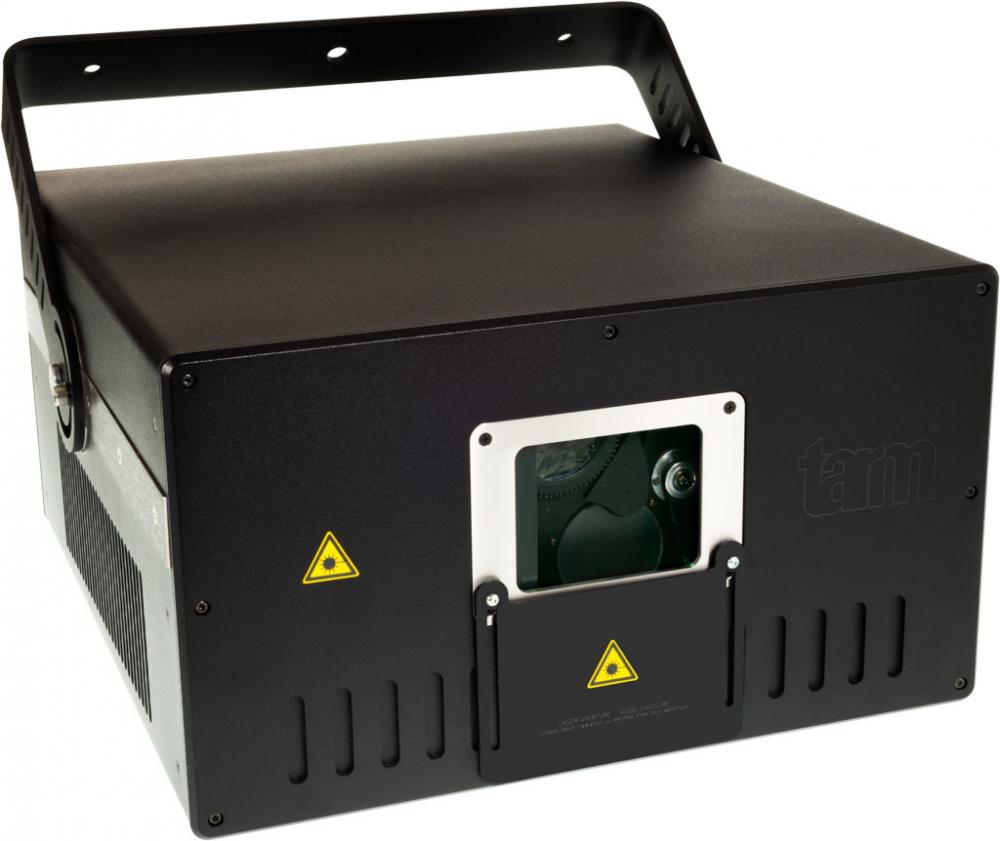

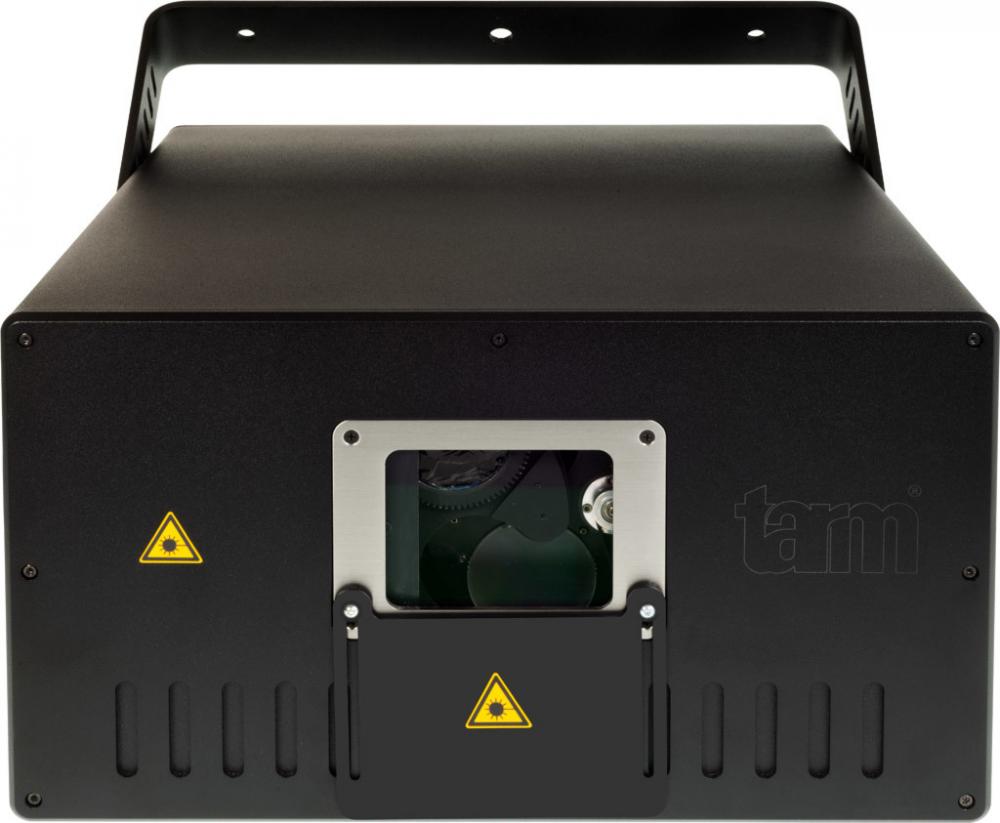

The tarm HD show laser projector fulfills highest requirements in terms of brightness, beam divergence and accuracy and offers a guaranteed output power of 9 W. The benefits include: 9'000 mW guaranteed output power a very fast maximum scan speed of 60 kpps@8° ILDA for most demanding graphics projections Coherent Taipan OPSL High Definition modules for an extremely low divergence of only 0.5 mrad (full angle) with a low beam diameter of only 2.7 mm increase of brightness compared to conventional OPSL modules and Diode modules beautiful colors and great color fading TEM00 beam profile for a perfectly round beam newly developed electronics with calibration capability via a browser interface robust and dustproof housing, which also makes it possible to use it outdoors without problems   The laser projector is equipped with Coherent Taipan OPSL HD (High Definition) laser modules: 2.5 W / 639 nm OPSL HD, 5 W / 530 nm OPSL HD, 2 W / 460 nm OPSL HD. The tarm HD standard comes with very fast CT-6210H scanners . The scan speed of 60 kpps@8° ILDA and a maximum scan angle of 80° (@35 kpps) make the system suitable for any kind of application. Optionally this laser system is also available with CT-6215HP scanners. This tarm show laser system is equipped with Coherent Taipan OPSL and with the newly developed Coherent HD OPSL laser modules with TEM00 beam profile (TEM = Transverse electromagnetic mode) . At TEM00 the brightness of the beam spot is homogenously distriburted in a Gaussian curve, so the spot is perfectly round and has no deviances due to wave interferences.
Besides that, the tarm HD has an extremely low beam divergence : with CT-6210H scanners and standard optics: ca. 0.5 mrad or optional with CT-6215HP scanners and low divergence optics: ca. 0.3 mrad (TEM00).

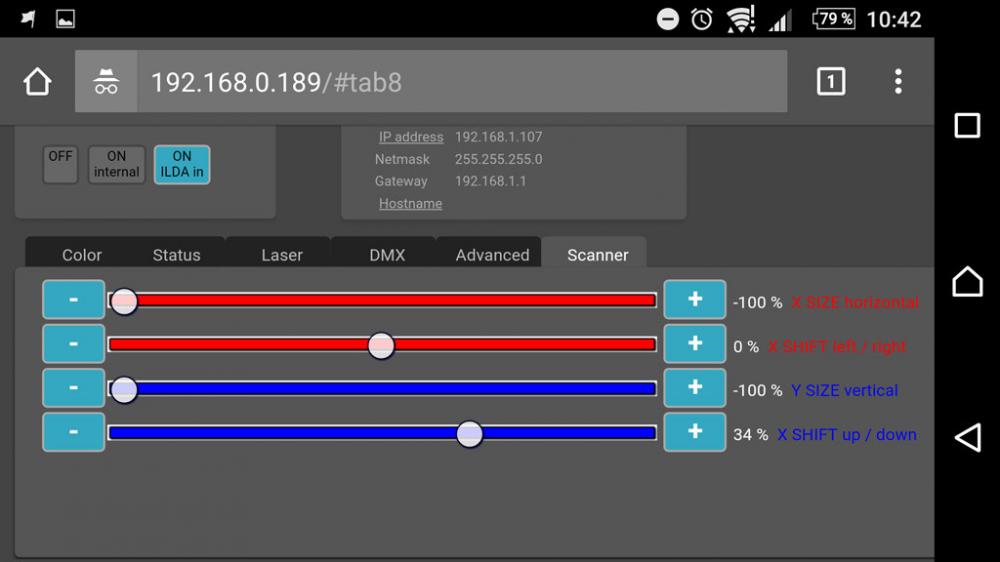

This results in an extremely increase of brightness in comparison to 'conventional' OPSL laser modules and especially in comparison to diode laser sources. The excellent beam specifications make this laser system ideal for graphics and long distance projections , but also for beam effects, which shall be visible from far away. The tarm HD is controlled via ILDA and is equipped with a newly developed electronics with calibration capability via a browser interface . In addition, color and scanner settings and other parameters can be configured directly via the browser application by connecting the laser directly via LAN (W-LAN is also possible with a suitable access point). Thanks to the browser interface, it is no longer necessary to operate the laser projector directly on the device (since this is often mounted at a height of several meters). All configurations can be conveniently done via a computer (PC, MAC, Linux), a tablet or a mobile phone. Due to the dustproof housing , the maintenance effort is very low and the device is also suitable for tough touring applications. The tarm HD is suitable for indoor and outdoor show laser applications at concerts, festivals and other major events . Demanding graphics projections are possible without any problems.
