Info | |
---|---|
order code |
70064516
|
product link | |
EAN |
4026397548303
|
Product Name |

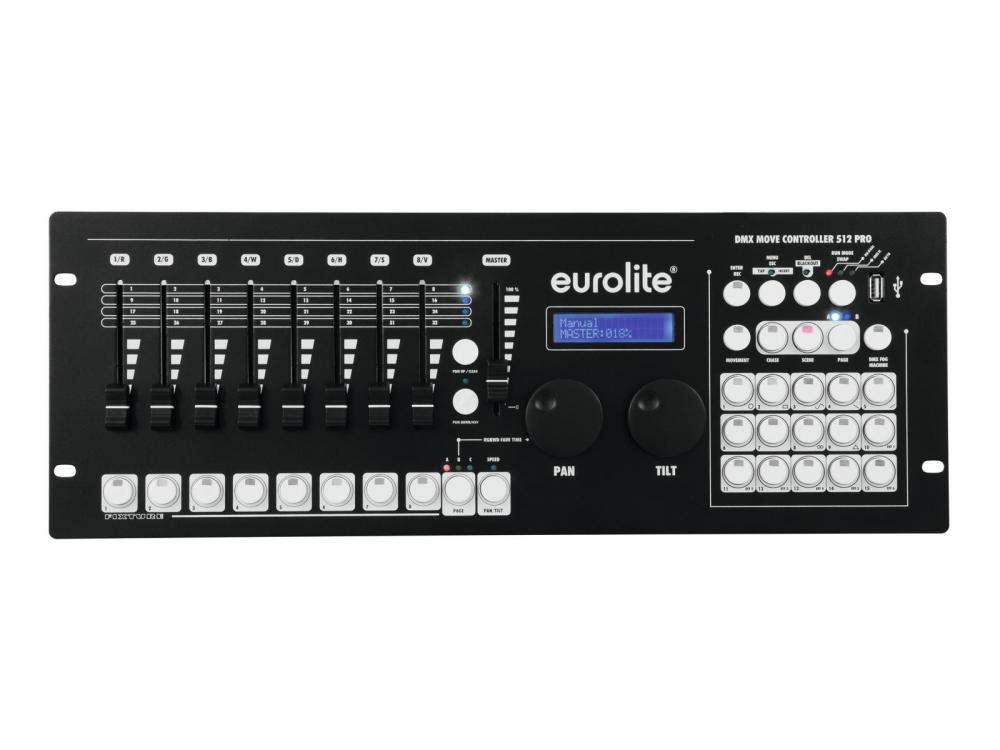

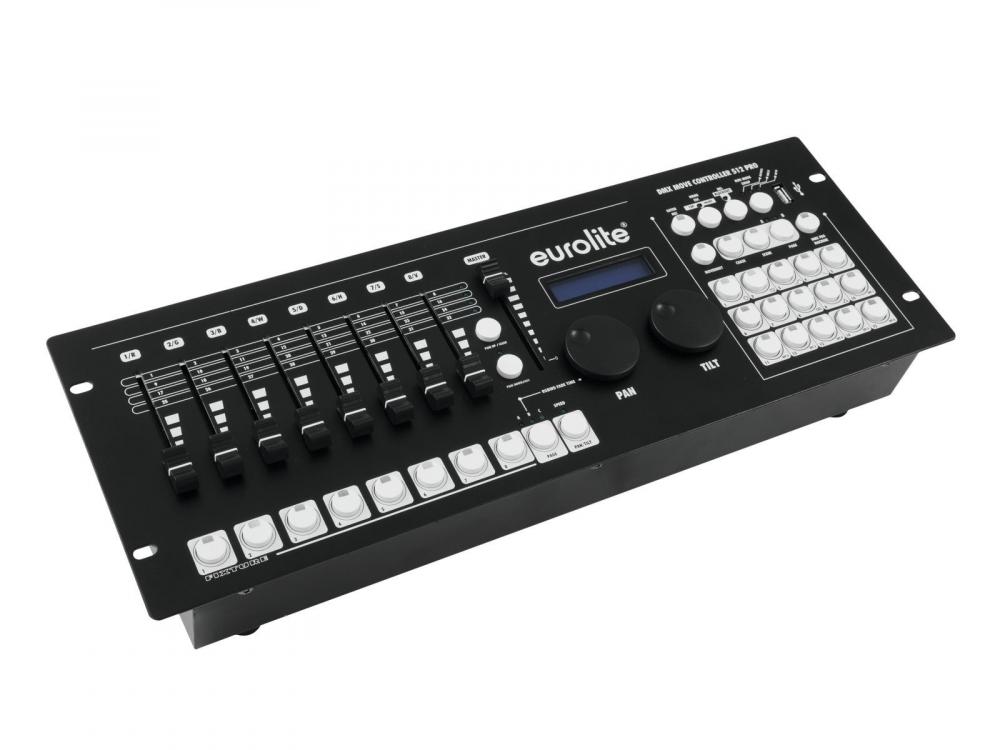

EUROLITE DMX Move Controller 512 PRO
|
technical overview |

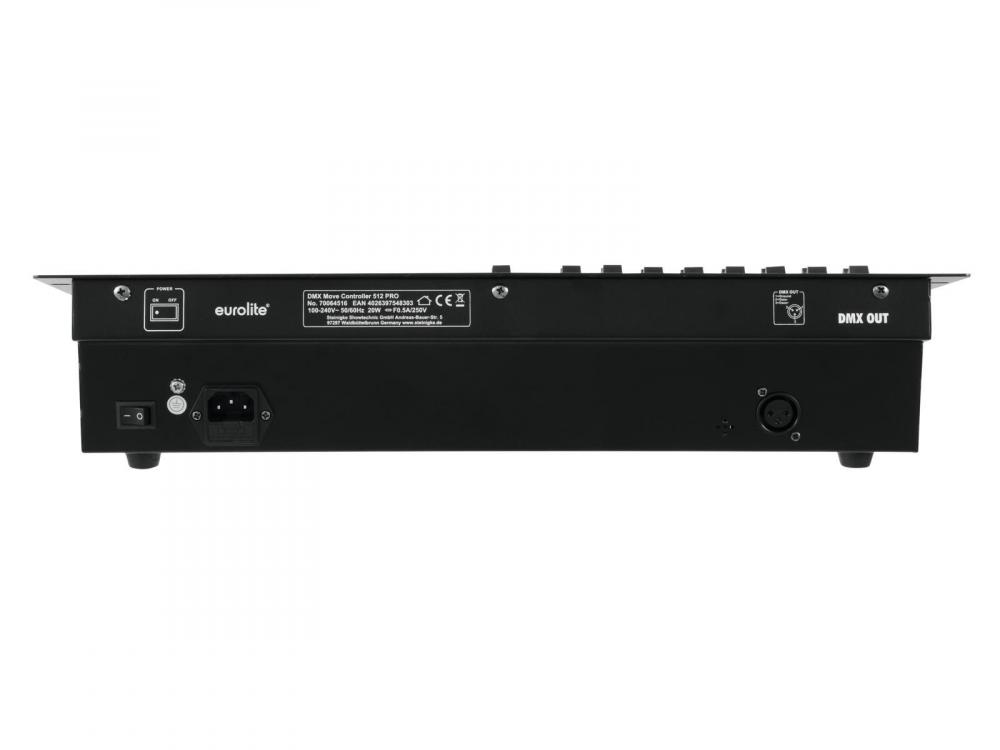

Power supply: 100-240 V AC, 50/60 Hz Number of control channels: 512 Storable scenes: 30 Storable chases: 30 with 485 steps max. DMX512/RDM output: 3-pin XLR connector Available storage media: USB devices (FAT32) Dimensions (L x W x H): 483 x 170 x 107 mm Rack installation with 4 U Weight: 3,82 kg Power consumption: 20 W IP classification: IP20 Color: Black Height: 8,9 cm Depth: 17 cm Width: 48,3 cm DMX channels: 512 Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

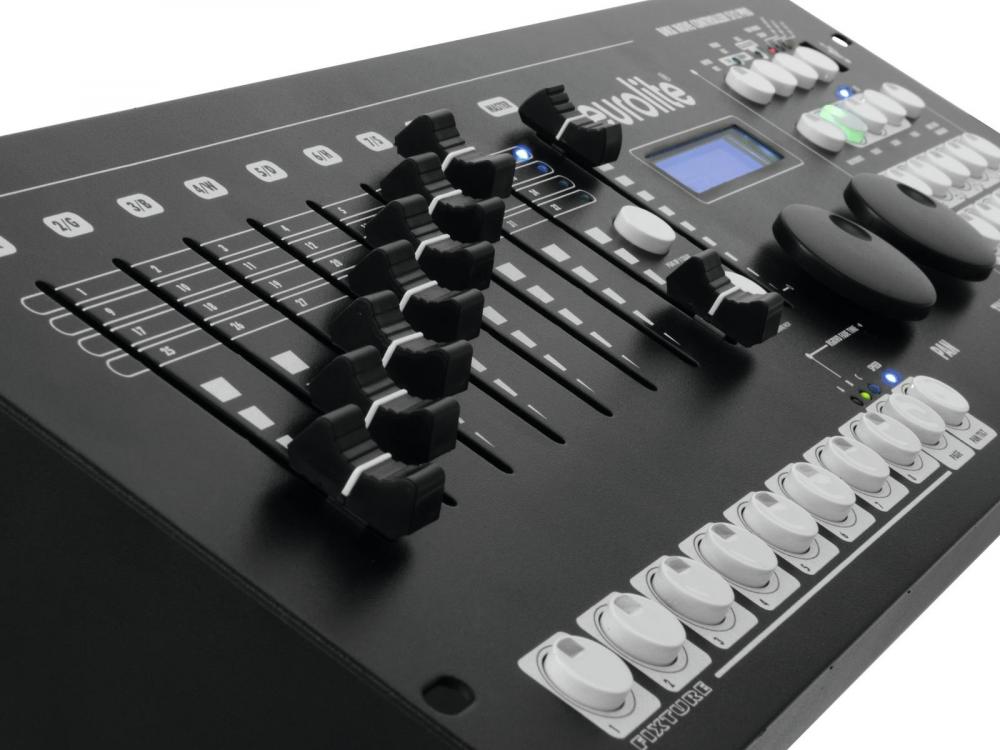

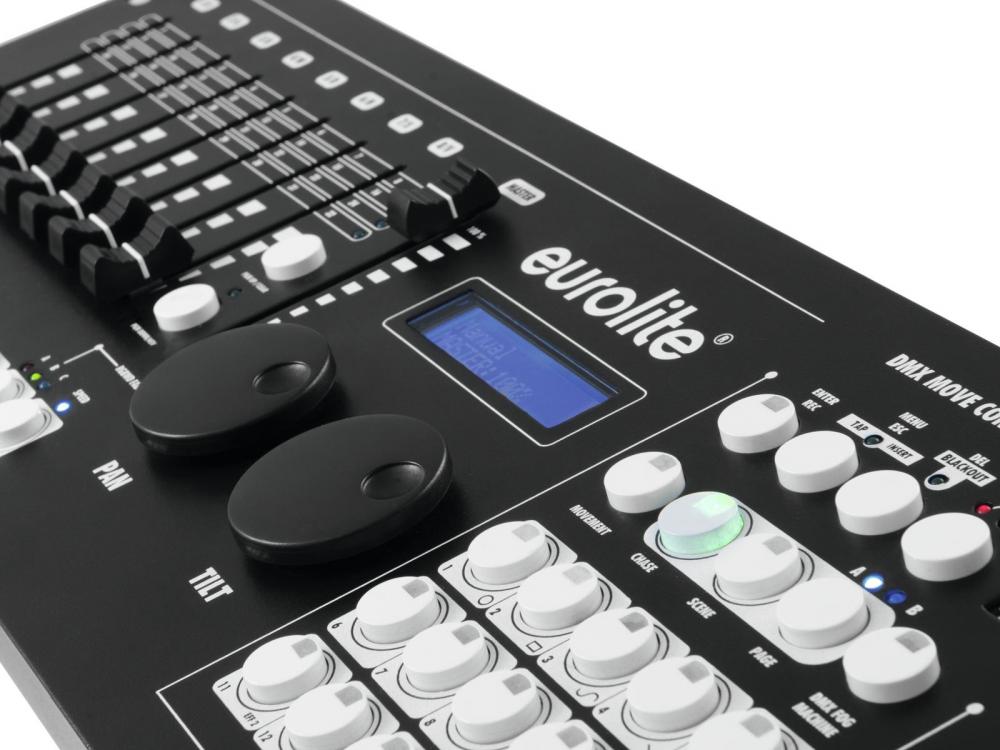

DMX controller with FX generator for motions -DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture -512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch) -For 24 fixtures with max. 34 control channels each -USB port for storing program data -Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable) -Several movement patterns and color effects can be used simultaneously -30 programmable chases with 100 scenes each can be stored -Manual, time-controlled or sound-controlled chase running mode -30 programmable scenes -3 DMX fixture levels can be controlled -8 motorized DMX channel faders for user-friendly control -The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes -2 jog wheels for pan/tilt -Master fader for color and dimmer channels -Blackout function -Color-illuminated buttons provide easy orientation -Sound control via built-in microphone -Backlit LCD (2 x 16 characters) -RDM support (DMX address setup and identify) -3-pin XLR connector -Firmware update via USB -Desktop console -Rack installation with 4 units -Case color: Black -Housing design: (19") 48,3 cm rack installation -Height unit: 4 U -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Controller useable for: general mix of colors; Controls KLS in general; Controls Moving Lights; Controls DMX effects; Luminaires for white -Control: DMX |
Control | |
control channels, min |
512 ch
|
control channels, max |
512 ch
|
RDM |
yes
|
Electrical | |
power consumption watt, max |
20.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
IEC-60320 C13/C14
|
IP rating |
20
|
Mechanical | |
weight |
3.82 kg
|
width |
170.00 mm
|
height |
107.00 mm
|
length |
170.00 mm
|
color |
black
|
height in rack-units |
4 U
|
