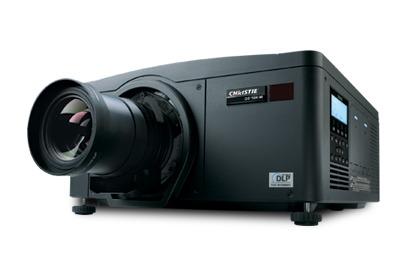

Christie HD6K-M 1080 HD DLP Projector

Christie Digital Systems

1
We’ve designed the Christie HD6K-M, a flexible, efficient 1080 HD 3DLP digital projector, with your needs in mind. We’ve thought of it all, put it into a sleek, compact chassis and provided you with a full set of options.

Technical specifications, datasheets, descriptions and tender texts for Christie HD6K-M 1080 HD DLP Projector

Info
short summary
We’ve designed the Christie HD6K-M, a flexible, efficient 1080 HD 3DLP digital projector, with your needs in mind. We’ve thought of it all, put it into a sleek, compact chassis and provided you with a full set of options.
product description
The most compact in its class, the Christie M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. Embedded warping, blending and colour matching, along with built-in portrait capabilities give you even more installation flexibility with this HD model. Technology 3DLP ® Resolution 1920 x 1080 HD Brightness 6,600 centre lumens Contrast Up to 10,000:1 Illumination Dual Osram ® 200W P-VIP Lamp life 2,000 hours, up to 3,000 in eco mode Height 10.2" (259mm) Width 19.7" (500mm) Depth 22.1" (561mm) Weight 55lb (25kg)

The Christie HD6K-M DLP projector , at 6,300 centre lumens (dual lamps, 200W), offers high efficiency and low cost of ownership by drawing a maximum power of 870W giving you full brightness while using less power.

Features
- True HD native resolution (1920 x 1080)
- 6,600 Centre lumens (6,000 ANSI lumens)
- Variable contrast ratio of 2,500-10,000:1 (FOFO) / 650:1 ANSI for crisp, detailed images.
-At maximum brightness the projector draws a maximum power of 870W
- Smallest chassis in its class
- Dual mercury lamps (200W)
- Two high definition input channels that allow 4:4:4 HD signals
-Comprehensive Colour Adjustment (CCA™)
-Embedded Christie Twist™ image warping and edge-blending
- Dust sealed engine, filter-free design
- Motorised yellow notch filter
-Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
-Multi-windowing and screen processing (up to a 3x3 array)
- Dynamic iris
-3D capable model available in Mirage Series
- 3D upgradable
- AutoDesk ® Revit ® model
-Built-in portrait display capabilities

Whether the application is education, entertainment, gaming, home cinema or live events – Christie's 3DLP projectors are 2D and 3D capable. The Christie HD6K-M is available as a 3D display solution or it can be upgraded from its existing 2D display technology to include 3D capabilities. Christie is the first to offer an upgrade path for its 3-chip DLP projectors to equip them with the Mirage advanced 3D functionality.

All this, combined with a 3-year warranty and our industry-leading service and support, enables the M Series to provide high performance and peace of mind for all users.|LiteLOC™
Comprehensive Colour Adjustment (CCA™)
Embedded Christie Twist™ image warping and edge-blending
Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
Multi-windowing and screen processing (up to a 2x3 array)
Dynamic iris
Menus in five languages
99 channel memories
Auto setup
Digital keystone correction
Dust sealed engine, filter-free design
Motorised yellow notch filter (HD & WUXGA models only)
Built-in portrait display capabilities*
3D upgradable
*Christie M Series stacking frame is required in portrait orientation.
order code
118-012104-XX
product link
Standard Warranty
3 years
Electrical
power consumption amps, max
8.70 A
power consumption watt, max
870.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
lamp socket
Dual Osram® 200W P-VIP|Dual 200W PVIP
High power: 2000 hrs @ 200W
Low power: 3000 hrs @ 150W
BTU/h
2971.00 BTU/h
Mechanical
weight
25.00 kg
width
500.00 mm
height
259.00 mm
length
561.00 mm
Video
Brightness
650.00 ANSI-lm
Horizontal resolution
1920 px
Vertical resolution
1080 px
Native Horizontal resolution
1920 Pixel
Native Vertical resolution
1080 Pixel
Remote interface > d - sub seriell 232
yes
Remote interface > RJ 45 / LAN
yes
