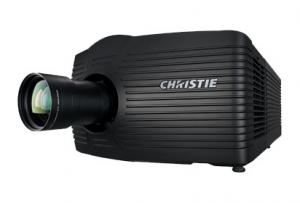

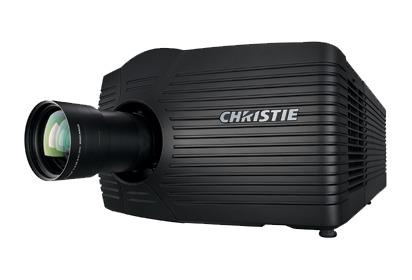

Christie D4K2560 high frame rate 3DLP 4K projector

Christie Digital Systems

1
The Christie D4K2560 is a 4K projector built on superior 3DLP technology. It offers ultra-realistic images and smoother video at 60Hz made possible by Christie’s new TruLife™ electronics – a breakthrough in high frame rate and high-resolution video projection.

Technical specifications, datasheets, descriptions and tender texts for Christie D4K2560 high frame rate 3DLP 4K projector

Info
short summary
The Christie D4K2560 is a 4K projector built on superior 3DLP technology. It offers ultra-realistic images and smoother video at 60Hz made possible by Christie’s new TruLife™ electronics – a breakthrough in high frame rate and high-resolution video projection.
product description
The Christie ® D4K2560 projector has native 4K (4096 x 2160) resolution and boasts 25,000 centre lumens. It offers ultra-realistic images and smoother video at 60Hz, thanks to our new and unique Christie TruLife™ electronics – a quantum leap in video-image processing that is a breakthrough in high frame rate and high-resolution video projection.

With superior 3-chip DLP performance and durability, this projector is ideal for large applications such as amusement parks, auditoriums, classrooms , museums , planetariums, theatres and virtual design centres.

Technology 3DLP Resolution 4096 x 2160 4K Brightness 25,000 centre lumens - 3.0kW lamp CDXL-30SD
18,000 centre lumens - 3.0kW lamp CDXL-30
10,000 centre lumens - 2.0kW lamp CDXL-20 Contrast Up to 2000:1 Lamp life 3.0kW CDXL-30SD - 1,500 hours
3.0kW CDXL-30 - 2,500 hours
2.0kW CDXL-20 - 3,500 hours Length 51.1" (1298mm) Width 25.5" (648mm) Height 19.0" (483mm) Weight 273lbs (124kg) (without lens)

With the Christie D4K2560 you get:
-Four times the resolution of 2K
-3DLP technology for longer life and richer colour
-High frame rate 60Hz
-High brightness
-Flexible input options
-Cleanable optical engine

You can choose different Christie D4K2560 lamp powers to suit your application needs. The motorised lens mount, user-replaceable lamps and field-alignable DMDs ensure that set up is fast, and maintenance time and costs are reduced.

This projector is designed to help you put on a breathtaking show. Precise detail and vibrant life-like images will help capture attention and immerse audiences in your content.

The Christie D4K2560 is backed by Christie's industry-leading warranties, service and support .
order code
129-009100-XX
product link
Standard Warranty
3 years
Electrical
power consumption amps, max
23.00 A
AC Volts, min
200 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
lamp socket
Xenon bubble
3.0kW CDXL-30SD - 1,500 hours
3.0kW CDXL-30 - 2,500 hours
2.0kW CDXL-20 - 3,500 hours
Mechanical
weight
124.00 kg
width
648.00 mm
height
648.00 mm
length
483.00 mm
Video
Brightness
22500.00 ANSI-lm
Horizontal resolution
4096 px
Vertical resolution
2160 px
Native Horizontal resolution
4096 Pixel
Native Vertical resolution
2160 Pixel
