75BDL3000U

Philips Professional Display Solutions

1
2
3

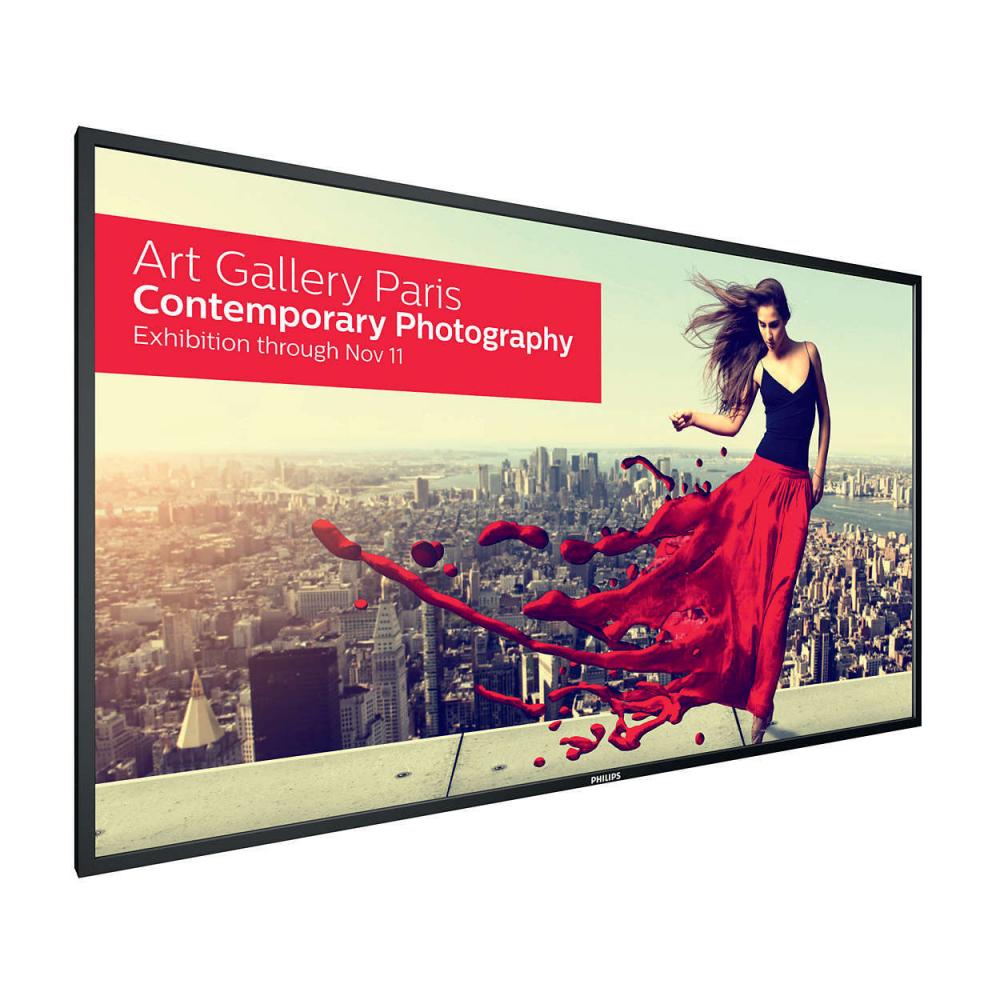

75" Edge LED Backlight, Ultra HD 4K Display

Technical specifications, datasheets, descriptions and tender texts for 75BDL3000U

Info
short summary
75" Edge LED Backlight, Ultra HD 4K Display
product type
U-Line Display
product description
Captivate your audience
With an ultra-large screen experience
Experience your content like never before thanks to four times the resolution of a
conventional display. This ultra-large 75" display offers 3840 x 2160 pixels so refined, so
lifelike, that it's a window to a new world
Optimised for public viewing
• 4K Ultra HD: resolution like you've never seen before
Innovative solutions for any signage application
• Play content from 4 separate inputs with QuadViewer
• CMND: Take control of your displays
• Optional OPS Insert to create an all-in-one solution
• Schedule what you want, when you want with SmartPlayer
Care about you, your business and your audience
• SmartPower for energy saving
• Keep your content up and running with FailOver
• Simplify meetings with FailOver for conferencing

Highlights
U-Line Display
75" Edge LED Backlight, Ultra HD
4K Ultra-HD Resolution
See your Signage Solutions like never before
thanks to four times the resolution of a
conventional Full HD display. 3840 x 2160
pixels provide and image so refined, so lifelike,
it's a window to a new world.
QuadViewer
Be more flexible with your screen real estate.
With the ability to play content from up to four
separate inputs, all on one screen,
QuadViewer is ideal for control rooms,
corporate environments and meeting rooms.
CMND
A robust display management platform,
CMND puts the power back into your hands.
Update and manage content with CMND &
Create or control your settings with CMND &
Control. It's all possible with CMND.
OPS Insert
Turn your display into an all-in-one digital
signage solution and create a display network
that is connected, intelligent and secure. Open
Pluggable Specification (OPS) is an industrystandard
slot into which you can add an OPSstandardised
media player. This cable-free
solution gives you the ability to install, use or
maintain your hardware whenever you need
to.
FailOver
Keeping your content up and running is critical
for demanding commercial applications. While
it is unlikely you will face a content disaster,
FailOver provides content protection with a
revolutionary technology that plays back-up
content on screen in the event of a media
player failure. FailOver automatically kicks in
when the primary input fails. Simply select a
primary input connection and a FailOver
connection and you're ready for instant
protection.

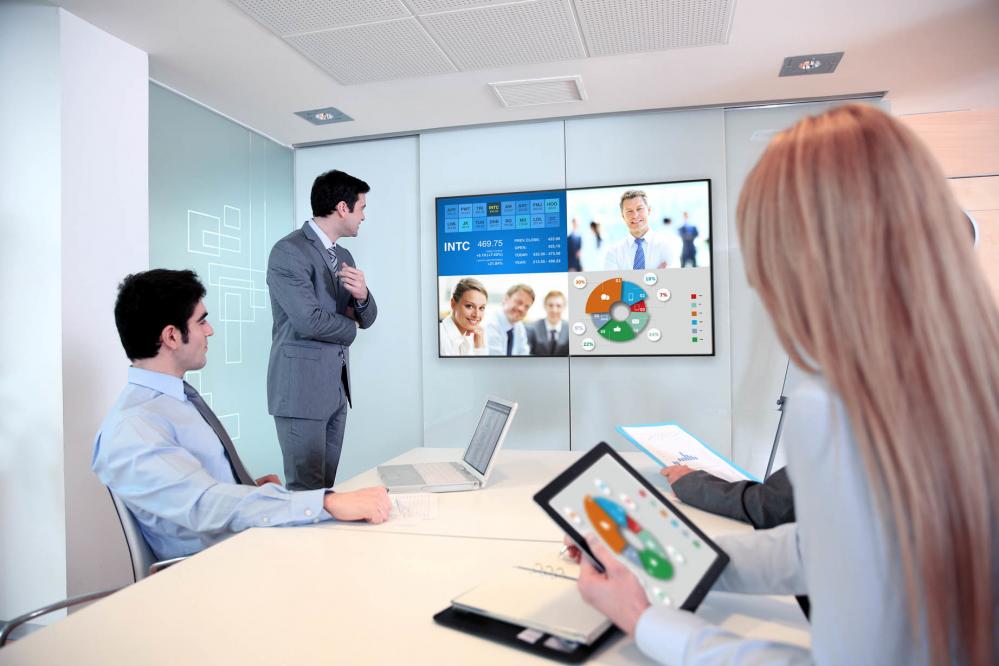

FailOver for Meeting Rooms
Using FailOver, simplify your presentations and
video conferencing. When a meeting or
conference room is not in use, background
content can run from whatever input source
you choose. When the meeting starts and you
need to share a presentation or your screen,
simply connect your computer and the display
automatically switches inputs and shows what's
on your screen, with no need to manually
switch inputs.
SmartPower
The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
SmartPlayer
Turn your USB into a true cost-effective digital
signage device. Simply save your content
(video, audio, pictures) on your USB and plug
into your display. Create your playlist and
schedule your content via the on-screen menu,
and enjoy your own playlists anytime,
anywhere.
product code
8712581739522
order code
75BDL3000U
product link
EAN
8712581739522
MOQ (minimum order quantity)
1 pcs
EOL
Q1 2018
Audio
Audio input > cinch
yes
Audio ouput > cinch
yes
Connectors
Network Connector
yes
Number of DVI inputs
Number of HDMI inputs
USB 2.0
yes
RS232
Control
CPU cores
1 pcs
CPU/SOC type
Himalaya 1.1
Electrical
power consumption watt, max
197.00 W
standby power consumption
0.50 W
Mechanical
length
62.80 mm
Bezel width (mm)
12.35 mm
Screen Size, max
75.00 "
Screen Size, min
75.00 "
width of shipping box
28.00 mm
height of shipping box
107.00 mm
length of shipping box
165.00 mm
shipping weight
35.00 kg
Video
Brightness
410  cd/m²
Contrast
1200 :1
Native Horizontal resolution
3840 Pixel
Native Vertical resolution
2160 Pixel
Average Screen Reflection
3.00 %
Internal Player
yes
VESA Standard
yes
Viewing angle --value; horizontal
178.00  °
Viewing angle --value; vertical
178.00  °
Dynamic contrast ratio
500000 :1
Response time
8.00 ms
pixel pitch
0.43 mm
