| Info | |
|---|---|
| order code |
51834021
|
| product link | |
| EAN |
4026397656688
|
| Product Name |

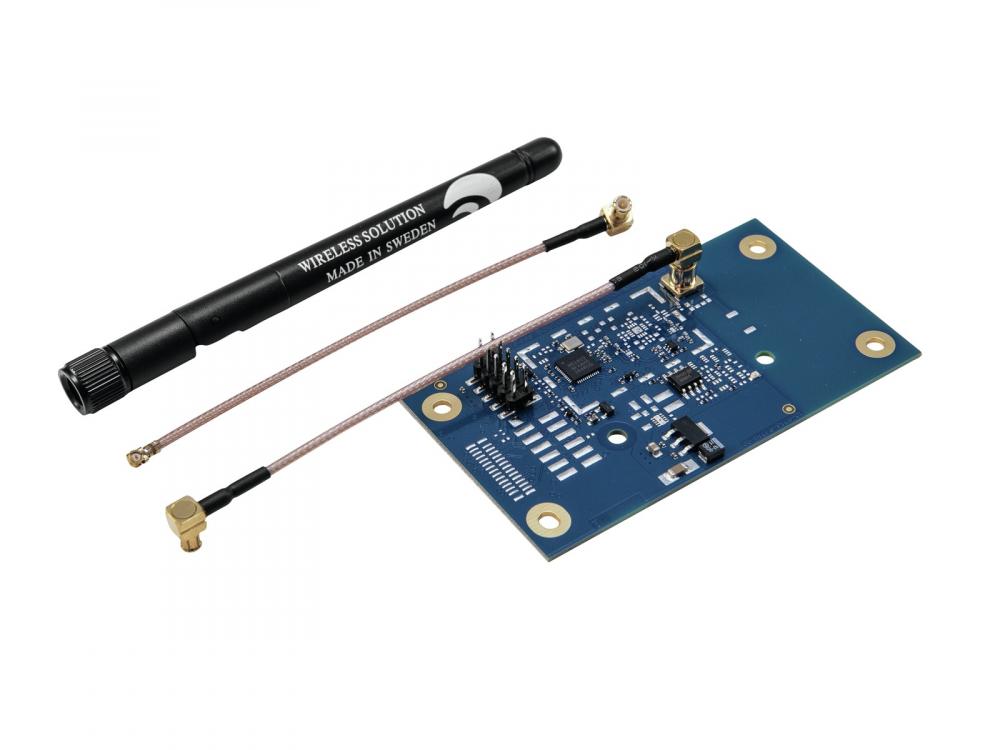

FUTURELIGHT WDR-G4 wireless DMX receiver PCB
|
| technical overview |
IP classification: IP20 Weight: 0,01 kg DMX channels: 512 |
| main features |
Wireless DMX receiver, 2.4 GHz -Compact wireless DMX receiver for the wireless transmission of up to 512 DMX channels -Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations -Only for Futurelight products with appropriate installation feature -Due to AFHSS (Automatic Frequency Hopping Spread Spectrum) and TDMA (Time Division Multiple Access) technology, interference-free operation also alongside other WDR-G4 receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth) -Operating range up to 200 m (with line-of-sight) -Simultaneous operation of up to 16 transmitters, thus control of 8192 DMX channels (16 DMX universes) possible -1 to 512 receivers WDR-G4 can be controlled by each transmitter -Transmission of RDM data -2.4 GHz - license-free worldwide -Made in Europe -Control: W-DMX; DMX; RDM |
| Control | |
| control channels, min |
512 ch
|
| control channels, max |
512 ch
|
| Electrical | |
| IP rating |
20
|
| Mechanical | |
| weight |
0.01 kg
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00087871.pdf |
