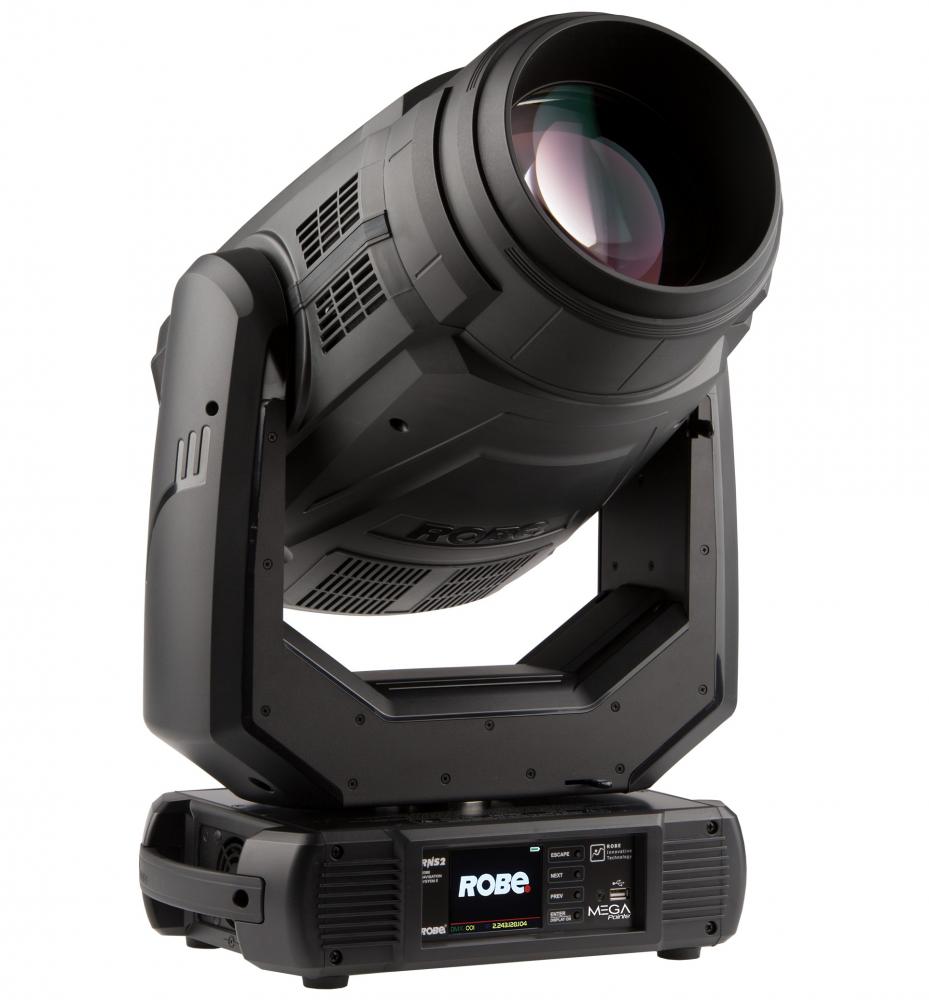

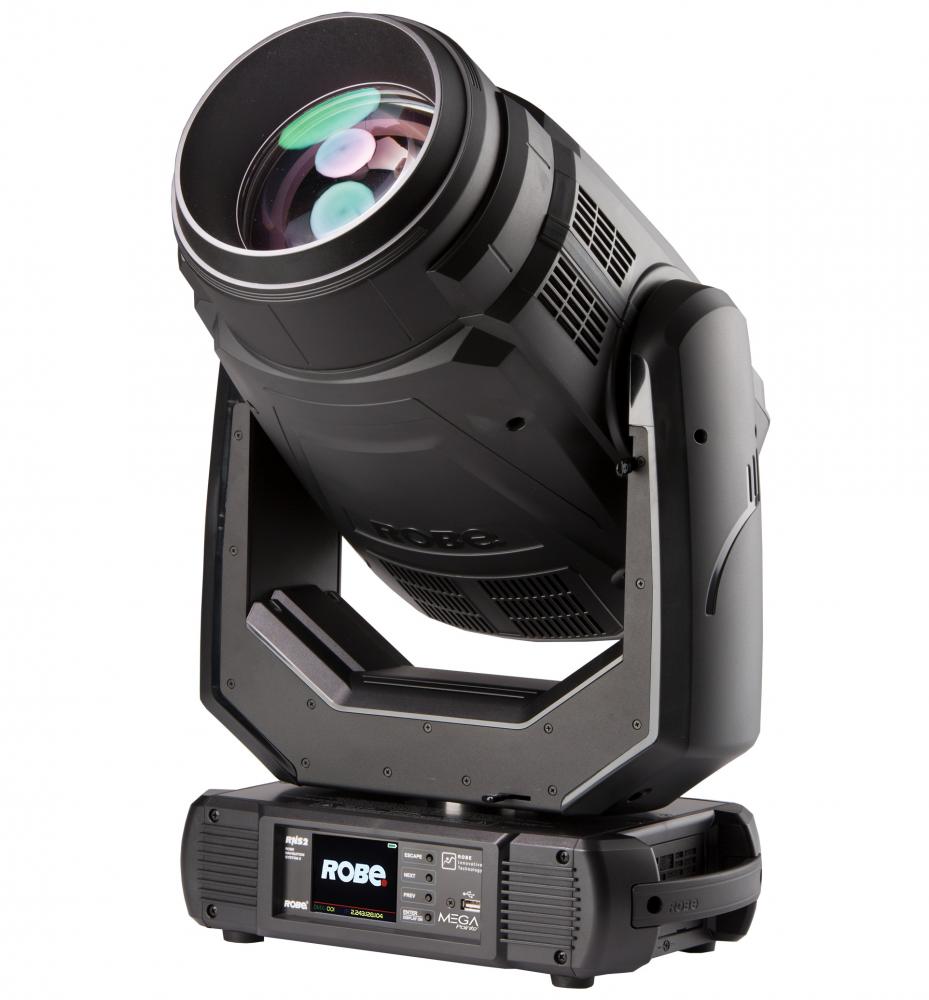

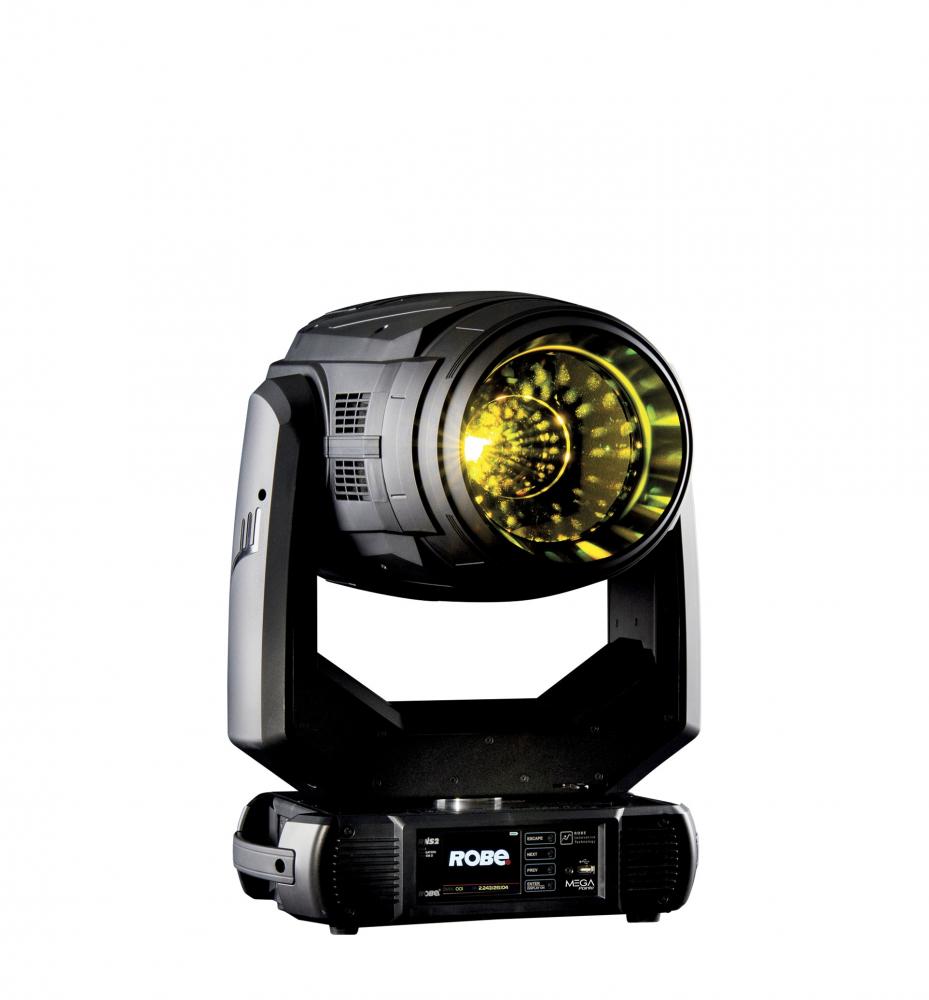

ROBIN Mega Pointe Standard Version EU
Robe
Technical specifications, datasheets, descriptions and tender texts for ROBIN Mega Pointe Standard Version EU
| Info | |
|---|---|
| short summary |
MEGA bright with MEGA features and still compact. The MegaPointe from Robe. OUR NEW REFERENCE POINT! Our all-new MegaPointe elevates the original all-in-one fi xture to a whole new level. Unleash your creativity using the bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects. The Robe R&D team worked with Osram to provide a 470W lamp that aligns perfectly with the cutting edge optical system. This design provides a brilliant, crystal clear, razor-edged beam, adjustable from a punchy 1.8 out to a wide 42 degree zoom. Both static and rotating (glass) gobos produce precision in-air effects or projected images with a sharp, high-contrast, fl at fi eld. The newly designed effects engine can produce 12 varying beam and ‘fl ower’ effects. The beam can also be shaped using innovative shutter emulation, further creating a whole new blend of content & creativity.
|
| product type |
Moving Light
|
| product description |
MEGA bright with MEGA features and still compact. The MegaPointe from Robe. OUR NEW REFERENCE POINT! Our all-new MegaPointe elevates the original all-in-one fi xture to a whole new level. Unleash your creativity using the bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects. The Robe R&D team worked with Osram to provide a 470W lamp that aligns perfectly with the cutting edge optical system. This design provides a brilliant, crystal clear, razor-edged beam, adjustable from a punchy 1.8 out to a wide 42 degree zoom. Both static and rotating (glass) gobos produce precision in-air effects or projected images with a sharp, high-contrast, fl at fi eld. The newly designed effects engine can produce 12 varying beam and ‘fl ower’ effects. The beam can also be shaped using innovative shutter emulation, further creating a whole new blend of content & creativity.
|
| product code |
10018671
|
| order code |
10018673
|
| product link | |
| Connectors | |
| total number of DMX inputs |
1 pcs
|
| total number of DMX outputs |
1 pcs
|
| DMX connector types |
both 3/5pin
|
| total network ports FastEthernet |
1 pcs
|
| built-in Switch |
no
|
| Control | |
| max Dimmer resolution |
16 bit
|
| control channels, min |
41 ch
|
| control channels, max |
48 ch
|
| RDM |
yes
|
| wireless dmx |
no
|
| protocol-DMX |
both
|
| protocol-Artnet |
input
|
| Electrical | |
| power consumption amps, max |
8.34 A
|
| power consumption watt, max |
2000.00 W
|
| AC Volts, min |
200 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| operating temp, min |
-5.00 °C
|
| operating temp, max |
170.00 °C
|
| lamp socket |
PGJX28
|
| built-in dimmer |
none
|
| power input connector |
Powercon
|
| cooling |
active
|
| external PSU |
no
|
| Mechanical | |
| weight |
38.40 kg
|
| width |
483.00 mm
|
| height |
826.00 mm
|
| length |
335.00 mm
|
| pan range |
540 °
|
| tilt range |
270 °
|
| color |
black
|
| truss mountable |
yes
|
| shipping weight |
35.00 kg
|
| amount per case |
2 pcs
|
| recessed installation |
no
|
| Optical | |
| output lumen, max |
38000 lm
|
| beam angle/zoom, min |
5.00 °
|
| beam angle/zoom, max |
55.00 °
|
| light source |
Discharge
|
| Number of light sources |
1 pcs
|
| wattage per light source |
1700.00 W
|
| light source color temperature |
6000 K
|
| optics/projection type |
Washlight
|
| COLD WHITE LED source |
no
|
| shutter/strobe frequency, max |
10 Hz
|
| variable/linear frost |
yes
|
| color temperature, min |
2700 K
|
| color temperature, max |
6000 K
|
| min CRI |
90 CRI
|
| secondary light source |
none
|
| CMY colormixing |
dual flag
|
| drop-in frosts |
3 pcs
|
| max CRI |
90 CRI
|
| lens diameter |
180 mm
|
| out lumen in silent mode. Max |
33620 lm
|
| beam shape |
other
|
| fixed/virtual colorwheels |
2 pcs
|
| gobowheels total |
1 pcs
|
| rotating gobowheels |
1 pcs
|
| number of rotating gobos |
6 pcs
|
| beam shapers/framing/barndoors |
yes
|
| prism |
no
|
| other beam effects |
yes
|
| separate CTO wheel |
yes
|
| prism morphing |
no
|
| animation wheels |
2 pcs
|
| animation wheel functionality |
continous rotation
|
| Luminous efficacy |
19.00 lm/W
|
