Info | |
---|---|
short summary | Compact low-frequency loudspeaker designed primarily to provide bass augmentation for Bose® Panaray and DS systems in small to medium-size indoor permanent installations. It can also be used as portable sound reinforcement. For indoor applications only. |
product description |
- Unique 4 x 5.25" (133 mm) high-excursion woofer configuration provides deep bass to 35 Hz with fast transient response - Modular design allows stacking of multiple enclosures for increased maximum sound levels - Integrated suspension inserts allow easy permanent installations with optional rigging accessories Applications - Houses of worship - Multi-purpose spaces - Recreation - Restaurants and bars - Gymnasiums - Atriums and malls |
order code |
040192
|
Product Name |

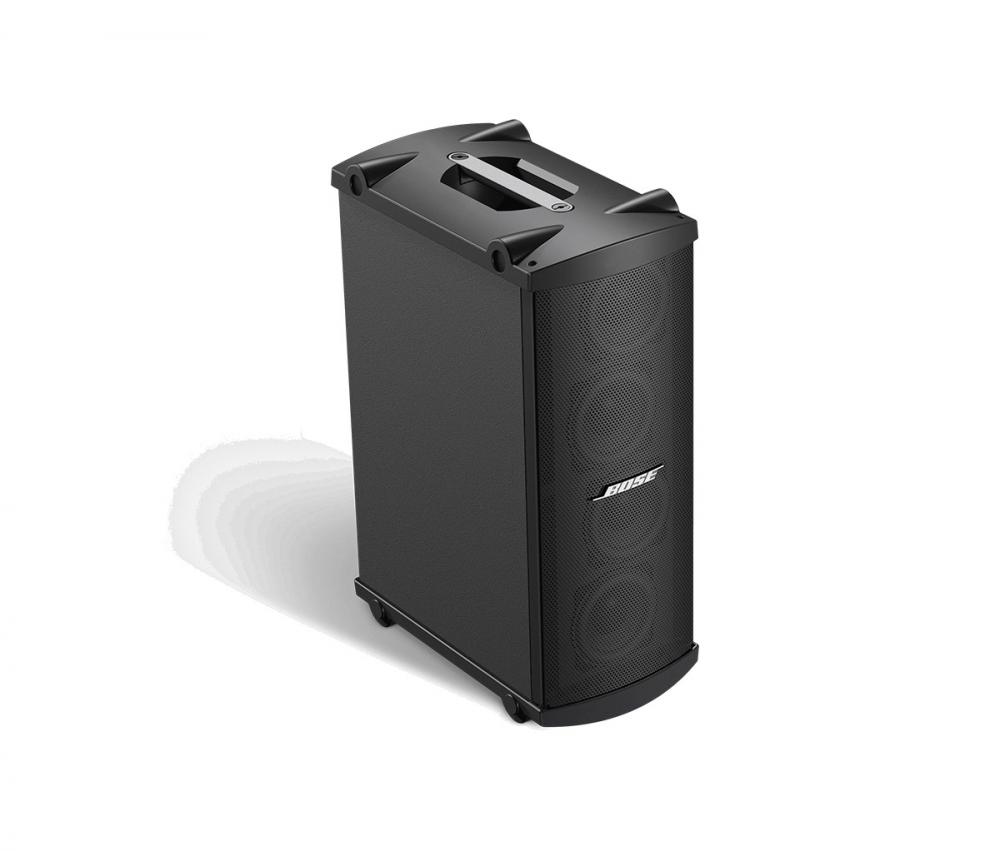

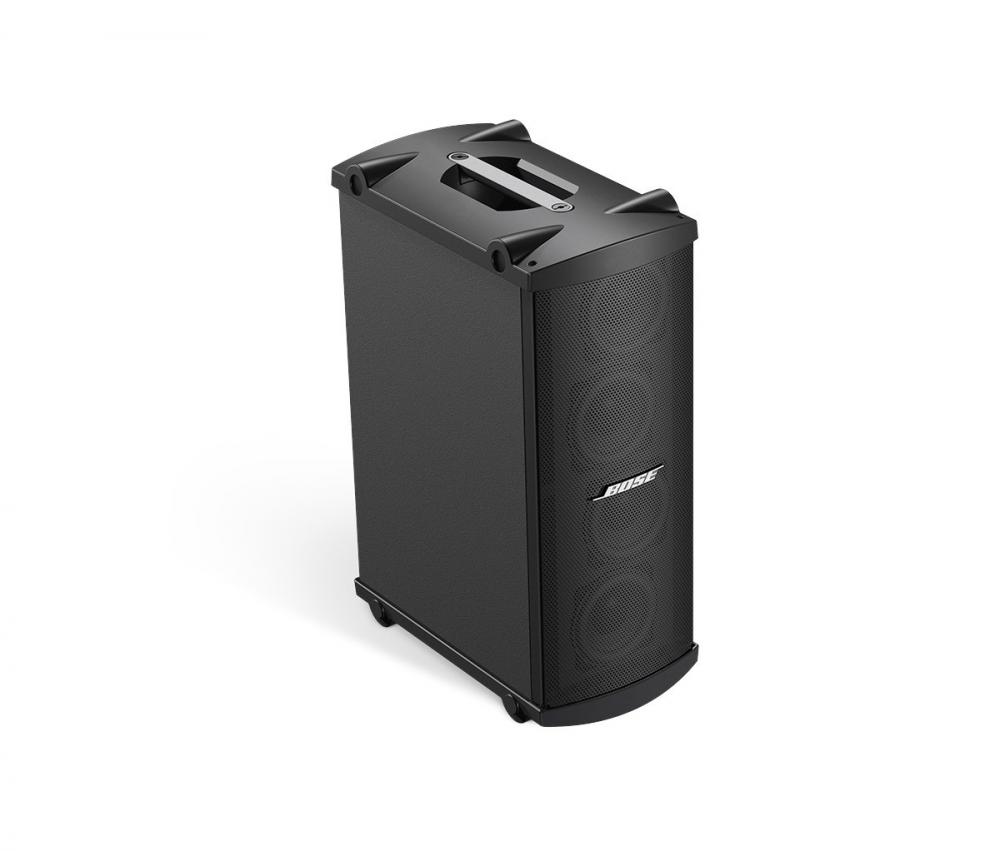

Panaray MB4 Modular Bass Loudspeaker - Black
|
Audio | |
Frequency response, from |
45 Hz
|
Frequency response, to |
310 Hz
|
SPL, max |
87.00 dB
|
Nominal power - RMS |
200 W
|
impedance |
8 ohm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Loudspeaker Files |
---|
ease_bose_products_july2010.zip |
Manuals |
ig_panaray_mb4.pdf |
Mechanical Files |
cadz_panaray_mb4.zip |
Product Images |
images_panaray_mb4.zip |
Sales Tools |
ss_sw_lofbergs_arena.pdf |
Technical Information |
tds_panaray_mb4_modular_bass_loudspeaker.pdf |
