PSSO CSA-218B top, black
PSSO
Technical specifications, datasheets, descriptions and tender texts for PSSO CSA-218B top, black
| Info | |
|---|---|
| order code |
11040804
|
| product link | |
| EAN |
4026397362862
|
| Product Name |
PSSO CSA-218B top, black
|
| technical overview |

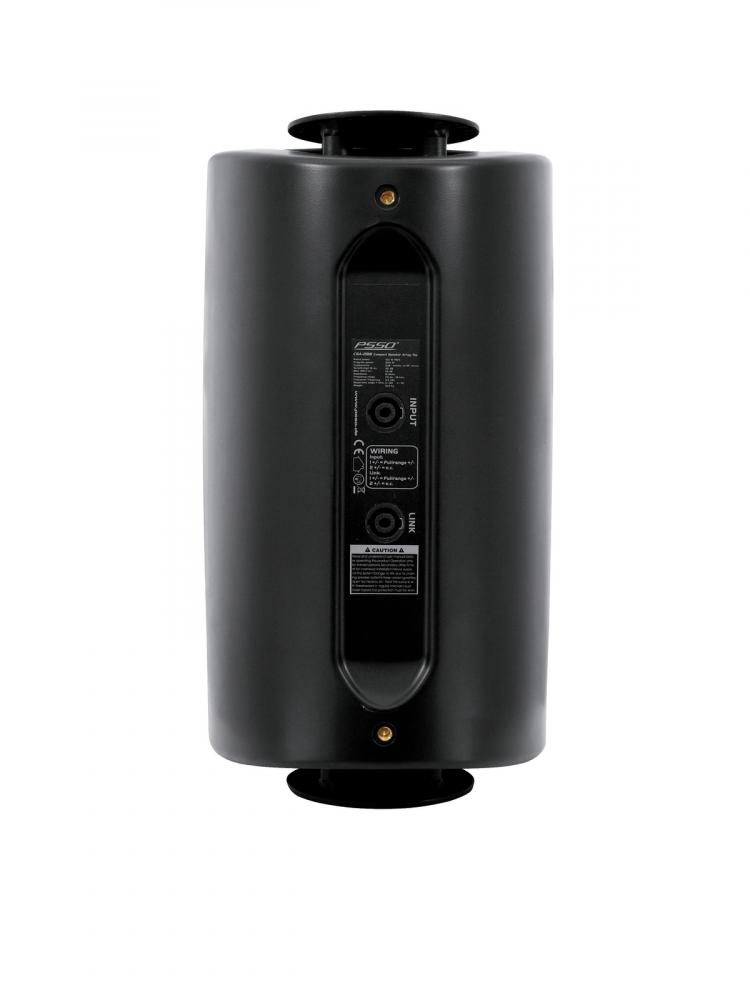

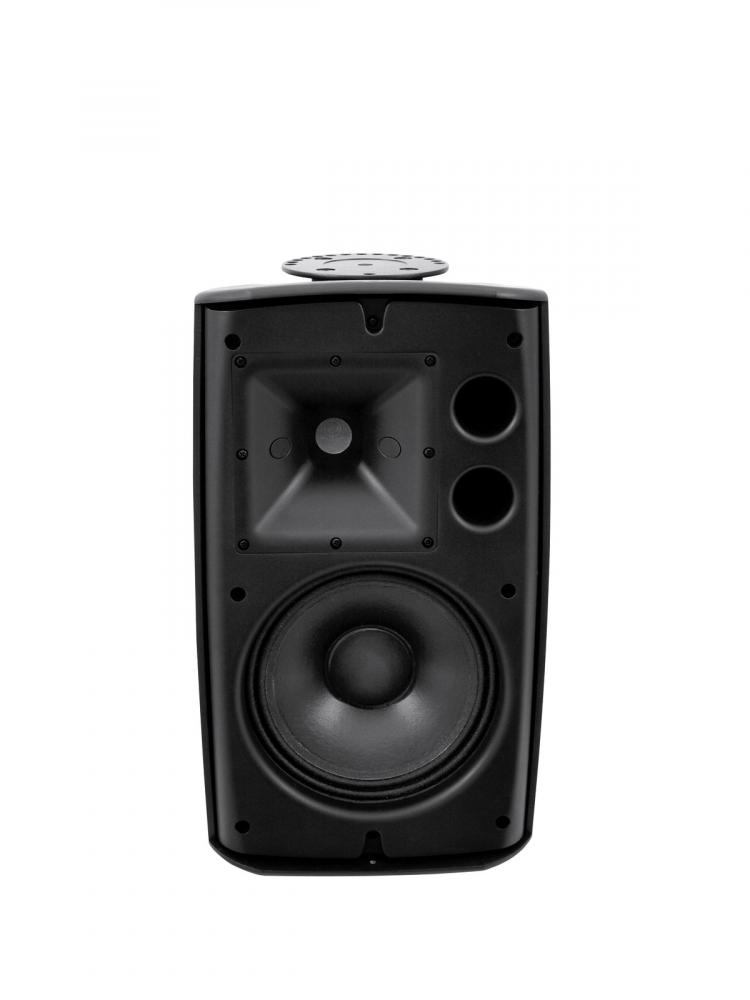

Rated power: 150 W RMS Program power: 300 W Components: 20 cm mids speaker (8"), 3.4 cm driver (1.33") Connection: 2 Speaker sockets (4-pin) Sensitivity: 92 dB Maximum SPL: 113 dB Impedance: 8 ohms Crossover frequency: 2.5 kHz Dispersion angle: H=90°, V=90° Dimensions (H x W x D): 250 x 465 x 340 mm Weight: 15 kg Frequency range: 70 - 18000 Hz Height: 34 cm Depth: 46,5 cm Width: 25 cm Impedance: 8 Ohm |
| main features |

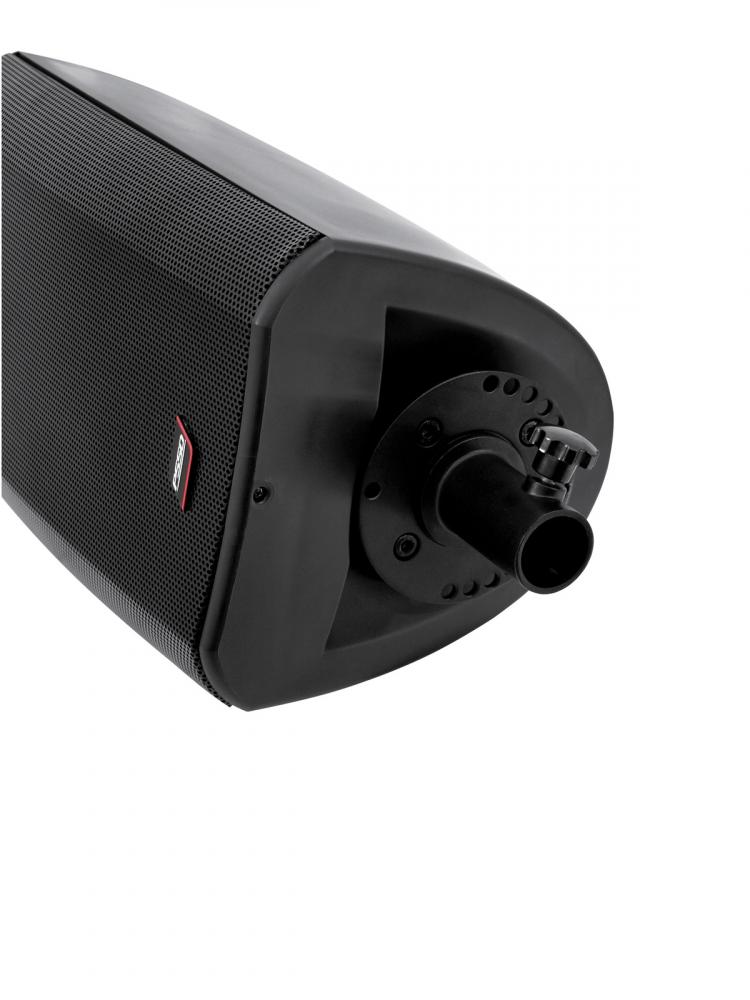

Compact speaker array -Compact speaker array for touring purposes and permanent installations -Speaker flange for mobile use included in the delivery -Mounting bracket for permanent installation can be ordered separately -Lightweight housing due to high-quality special plastic -Wide dispersion angle: 90° horizontally and vertically |
| Audio | |
| Frequency response, from |
70 Hz
|
| Frequency response, to |
18000 Hz
|
| impedance |
8 ohm
|
| Electrical | |
| power consumption watt, max |
150.00 W
|
| Mechanical | |
| weight |
15.00 kg
|
| width |
250.00 mm
|
| height |
340.00 mm
|
| length |
465.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00042854.pdf |
