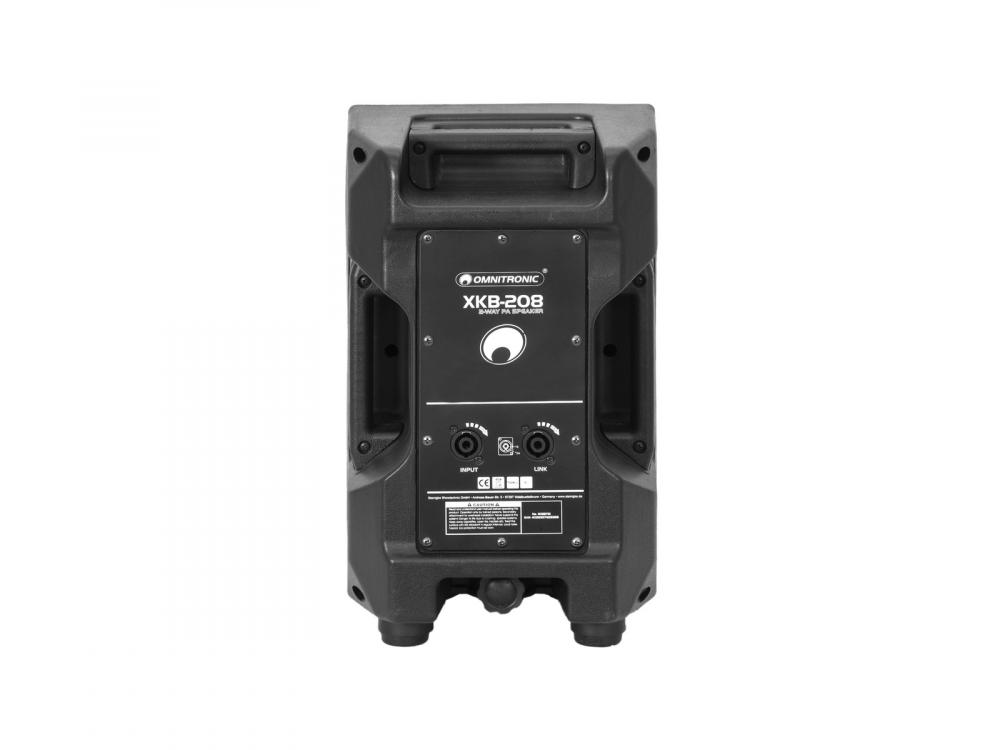

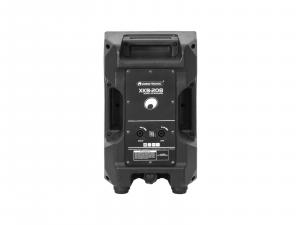

OMNITRONIC XKB-208 2-Way Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC XKB-208 2-Way Speaker
| Info | |
|---|---|
| order code |
11038761
|
| product link | |
| EAN |
4026397628388
|
| Product Name |
OMNITRONIC XKB-208 2-Way Speaker
|
| technical overview |
LF speaker: 20 cm bass/mids (8") with 38 mm voice coil HF speaker: 25 mm compression driver (1") Connection: 2 x Speaker Sensititvity: 94 dB Weight: 6,65 kg Program power: 200 W Rated power: 100 W RMS Size of woofer: (8") ca. 20 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 65 - 20000 Hz Height: 43 cm Depth: 27 cm Width: 26 cm Impedance: 8 Ohm |
| main features |
Passive speaker with 8" woofer, 1" driver and 100 W RMS -2-way bass-reflex system with 20 cm woofer and 2.5 cm driver -Speaker connections -Stable plastic housing with protective grille and handles -Flange for stand installation -Can be used as floor monitor, standing, on a speaker stand or wall holder -For mobile live and DJ applications |
| Audio | |
| Frequency response, from |
65 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
8 ohm
|
| Electrical | |
| power consumption watt, max |
100.00 W
|
| Mechanical | |
| weight |
6.65 kg
|
| width |
260.00 mm
|
| height |
430.00 mm
|
| length |
270.00 mm
|
