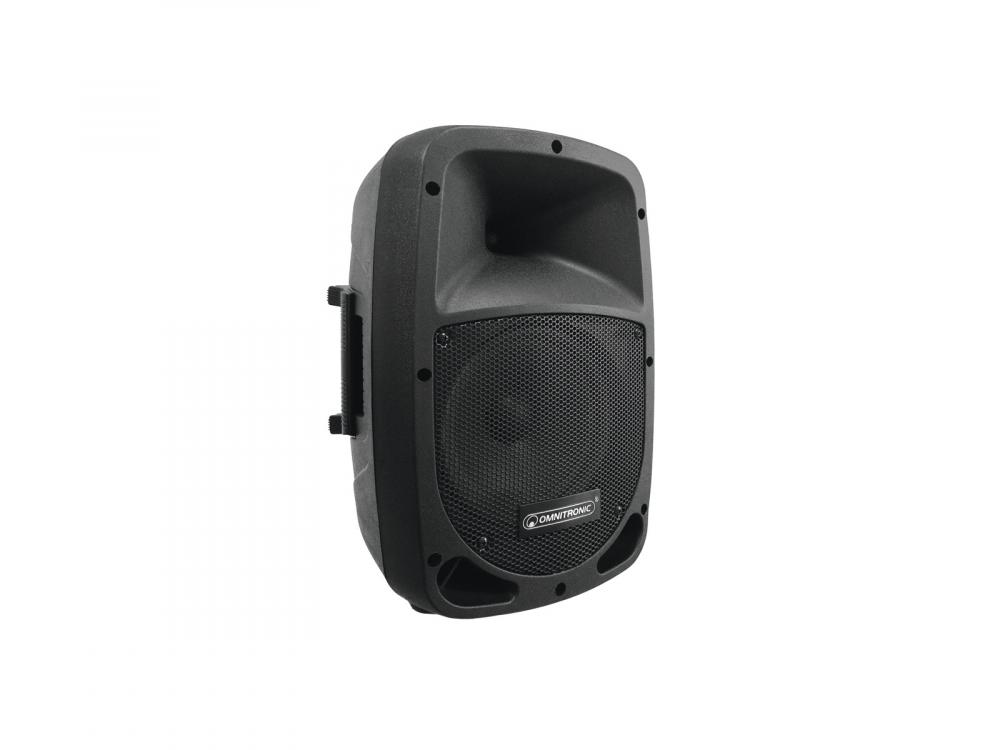

OMNITRONIC VFM-208 2-Way Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC VFM-208 2-Way Speaker
| Info | |
|---|---|
| order code |
11038765
|
| product link | |
| EAN |
4026397542721
|
| Product Name |
OMNITRONIC VFM-208 2-Way Speaker
|
| technical overview |
LF speaker: 20 cm bass/mids (8") with 40 mm voice coil HF speaker: 25 mm compression driver (1") Connection: 2 x Speaker Maximum SPL: 111 dB Weight: 5,5 kg Size of woofer: (8") ca. 20 cm Number of bass-woofer: 1 Pc/Pcs Rated power: 80 W RMS Program power: 160 W Frequency range: 75 - 20000 Hz Height: 43,8 cm Depth: 24,5 cm Width: 29,5 cm Impedance: 8 Ohm |
| main features |

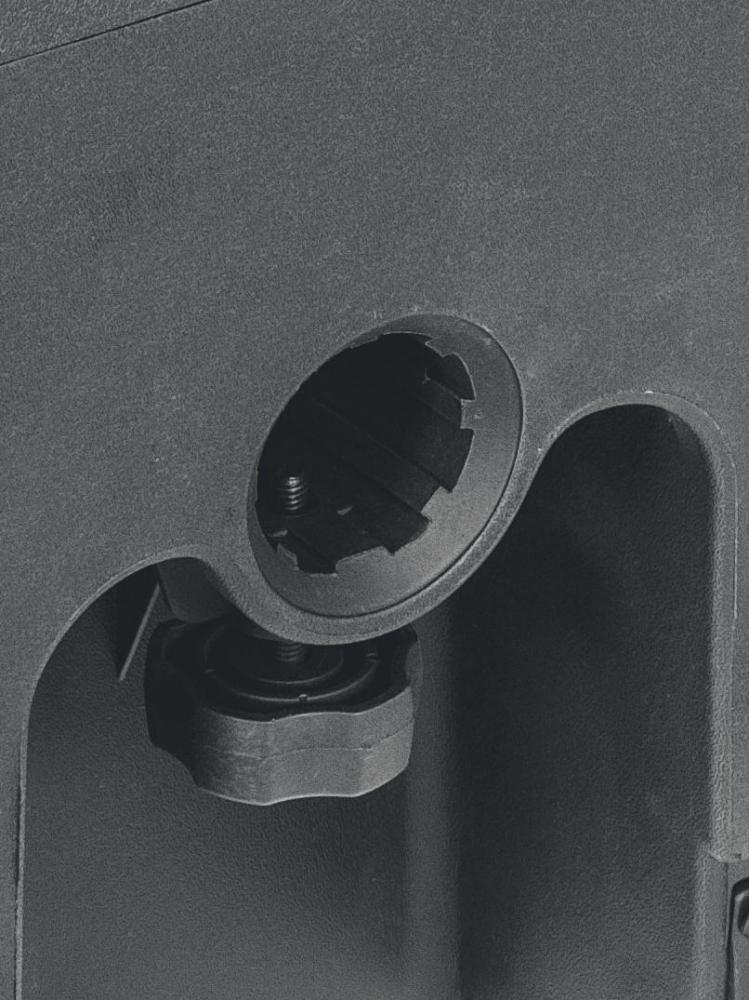

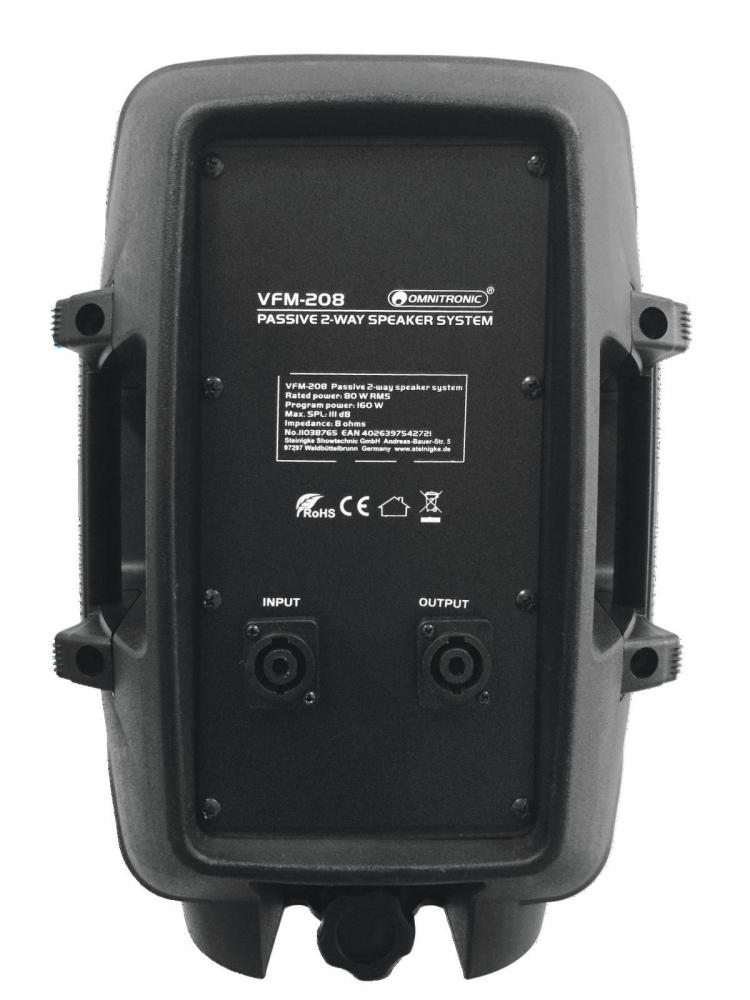

Passive speaker, 8" woofer, 1" driver, 80 W RMS, 8 ohms -2-way bass-reflex system with 20 cm woofer and 2.5 cm tweeter -Speaker connections -Stable plastic housing with protective grille and handles -Flange for stand installation -Can be used as floor monitor, standing, on a speaker stand or wall holder -For mobile live and DJ applications |
| Audio | |
| Frequency response, from |
75 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
8 ohm
|
| Electrical | |
| power consumption watt, max |
80.00 W
|
| Mechanical | |
| weight |
5.50 kg
|
| width |
295.00 mm
|
| height |
438.00 mm
|
| length |
245.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00089122.pdf |
