Info | |
---|---|
product type |
Truss 25 - 30 cm
|
product description |
More Span and load capacity!

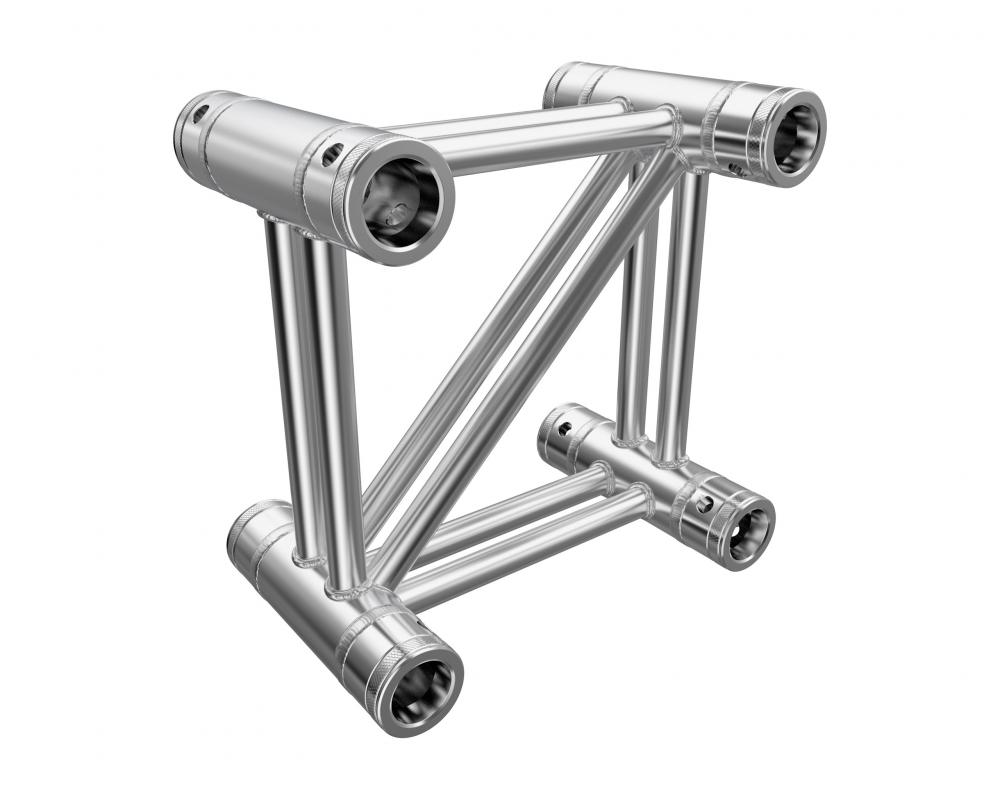

This F34PL global truss system offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.This Truss with 3mm wall thickness is mainly used for Dry Hire. It will be undeformed, even if hands will treat the truss very rough. Through its higher weight, there is no benefit in the statics at larger spans. With corresponding delivery time, the truss is also available powder-coated. By using appropriate Halfcoupler and Connectors, it is warranted for compatible use. To obtain more Information use the Compatibility List. This global truss system is adapted for event technology, trade fair construction and shopfitting. Don´t Rig Shit! |
order code |
F34018PL
|
Mechanical | |
weight |
2.20 kg
|
width |
290.00 mm
|
height |
290.00 mm
|
length |
180.00 mm
|
Statical | |
max UDL 5m span |
1705.00 kg
|
max UDL 10m span |
1220.00 kg
|
max UDL 12m span |
996.00 kg
|
max UDL 15m span |
780.00 kg
|
max CPL 5m span |
11114.00 kg
|
max CPL 10m span |
575.00 kg
|
max CPL 12m span |
475.00 kg
|
max CPL 15m span |
370.00 kg
|
deflection at max UDL 5m span |
16.20 mm
|
deflection at max UDL 10m span |
96.00 mm
|
deflection at max UDL 12m span |
138.80 mm
|
deflection at max UDL 15m span |
218.10 mm
|
deflection at max CPL 5m span |
16.90 mm
|
deflection at max CPL 10m span |
73.30 mm
|
deflection at max CPL 12m span |
107.60 mm
|
deflection at max CPL 15m span |
172.30 mm
|
max span |
18.00 m
|
