manufacturer: F34PL

Manufacturer

Global Truss GmbH

http://globaltruss.de

STAGE CAMPUS
Im Stöckmädle 27
76307 Karlsbad
Deutschland
info@globaltruss.de

+49 7248 94790 60
+49 7248 94790 61

filter products

mechanical
statical

weight
1 - 25.9 kg

width
290 - 1000 mm

height
50 - 710 mm

length
170 - 5000 mm

max UDL 5m span
1705 - 1705 kg

max UDL 10m span
1220 - 1220 kg

max UDL 12m span
996 - 996 kg

max UDL 15m span
780 - 780 kg

max CPL 5m span
11114 - 11114 kg

max CPL 10m span
575 - 575 kg

max CPL 12m span
475 - 475 kg

max CPL 15m span
370 - 370 kg

deflection at max UDL 5m span
16.2 - 16.2 mm

deflection at max UDL 10m span
96 - 96 mm

deflection at max UDL 12m span
138.8 - 138.8 mm

deflection at max UDL 15m span
218.1 - 218.1 mm

deflection at max CPL 5m span
16.9 - 16.9 mm

deflection at max CPL 10m span
73.3 - 73.3 mm

deflection at max CPL 12m span
107.6 - 107.6 mm

deflection at max CPL 15m span
172.3 - 172.3 mm

max span
18 - 18 m

products

Start 1 Ende

Global Truss GmbH

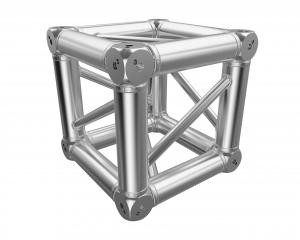

F34 Multi Box corner

Global Truss GmbH

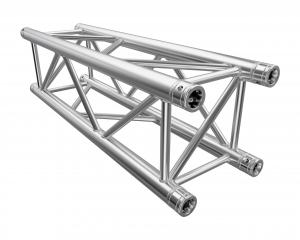

F34 PL 100cm

Global Truss GmbH

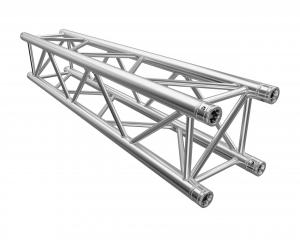

F34 PL 150cm

Global Truss GmbH

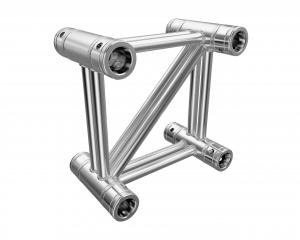

F34 PL 17cm

Global Truss GmbH

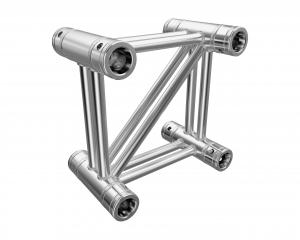

F34 PL 18cm

Global Truss GmbH

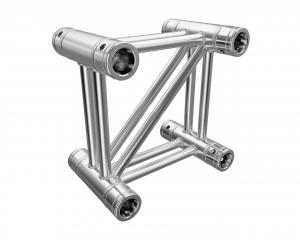

F34 PL 19cm

Global Truss GmbH

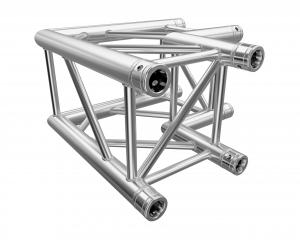

F34 PL 2-way corner C21 90°

Global Truss GmbH

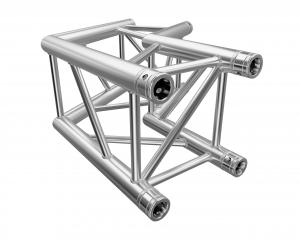

F34 PL 2-way corner C22 120°

Global Truss GmbH

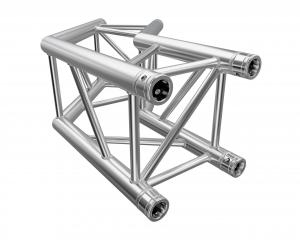

F34 PL 2-way corner C23 135°

Global Truss GmbH

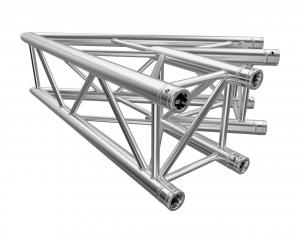

F34 PL 2-way corner C19 45°

Global Truss GmbH

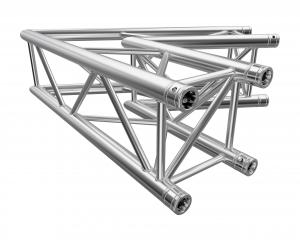

F34 PL 2-way corner C20 60°

Global Truss GmbH

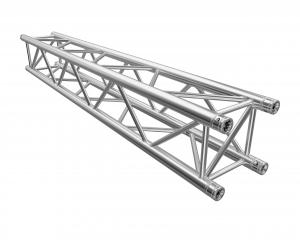

F34 PL 200cm

Global Truss GmbH
F34 PL 20cm

Global Truss GmbH

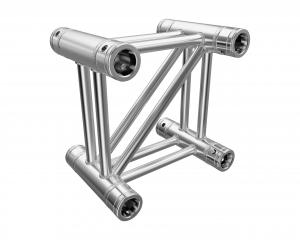

F34 PL 21cm

Global Truss GmbH

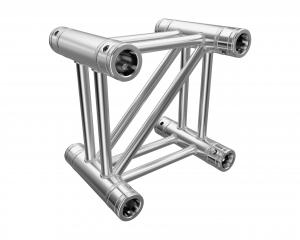

F34 PL 22cm

Global Truss GmbH
F34 PL 23cm

Global Truss GmbH
F34 PL 24cm

Global Truss GmbH

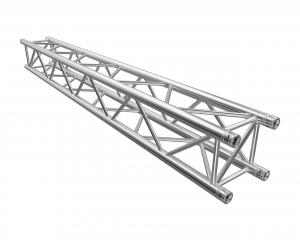

F34 PL 250cm

Global Truss GmbH

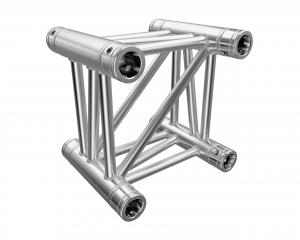

F34 PL 25cm

Global Truss GmbH

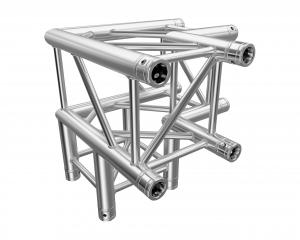

F34 PL 3-way corner C30 90°

Global Truss GmbH

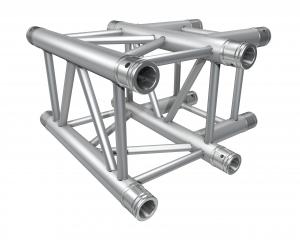

F34 PL 3-way corner T35

Global Truss GmbH

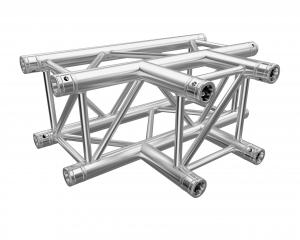

F34 PL 3-way corner T35 710mm

Global Truss GmbH

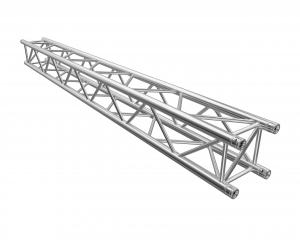

F34 PL 300cm

Global Truss GmbH

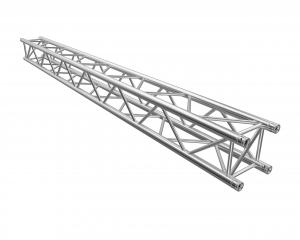

F34 PL 350cm

Global Truss GmbH

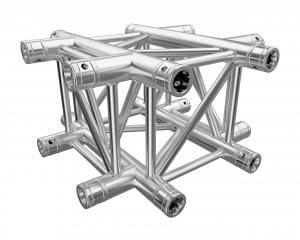

F34 PL 4-way corner C41

Global Truss GmbH

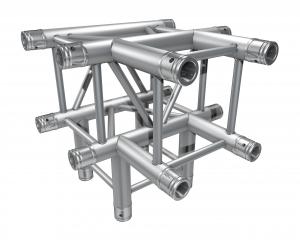

F34 PL 4-way corner T40

Global Truss GmbH

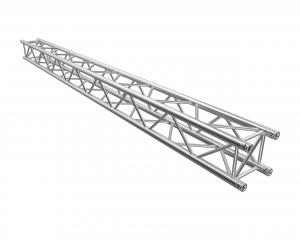

F34 PL 400cm

Global Truss GmbH

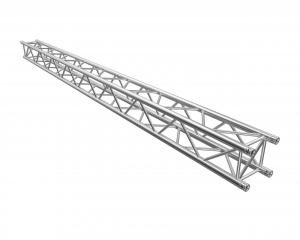

F34 PL 450cm

Global Truss GmbH

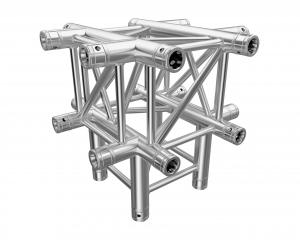

F34 PL 5-way corner C55

Global Truss GmbH

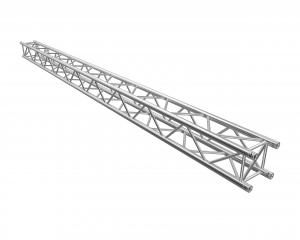

F34 PL 500cm

Global Truss GmbH

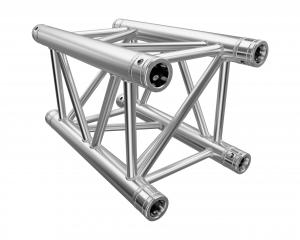

F34 PL 50cm

Global Truss GmbH

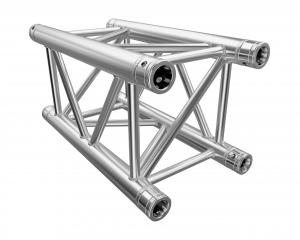

F34 PL 55cm

Global Truss GmbH

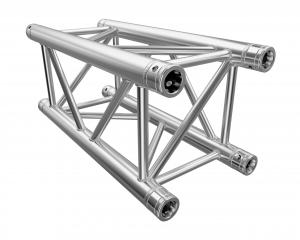

F34 PL 65cm

Global Truss GmbH

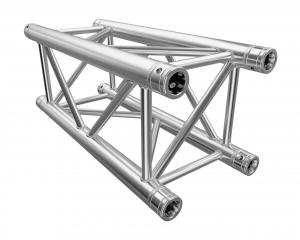

F34 PL 70cm

Global Truss GmbH

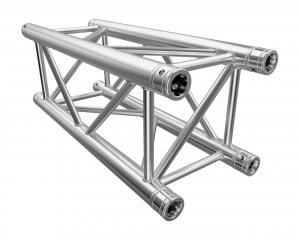

F34 PL 75cm

Global Truss GmbH

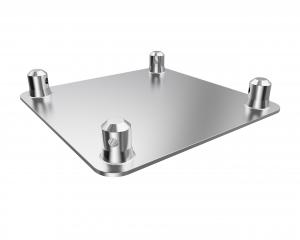

F34 PL base plate

Global Truss GmbH
F34 PL circle piece for Ø 10,0m 30°

Global Truss GmbH
F34 PL circle piece for Ø 12,0m 30°

Global Truss GmbH

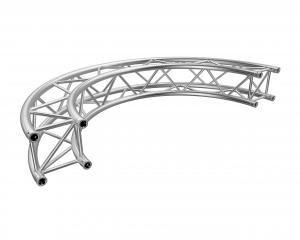

F34 PL circle piece for Ø 2,0m 180°

Global Truss GmbH

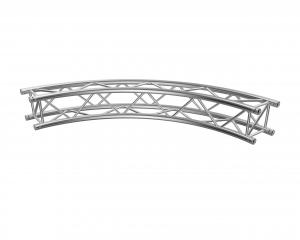

F34 PL circle piece for Ø 3,0m 90°

Global Truss GmbH

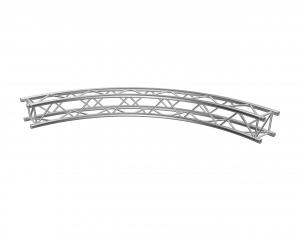

F34 PL circle piece for Ø 4,0m 90°

Global Truss GmbH

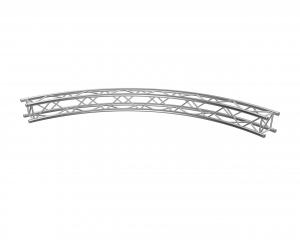

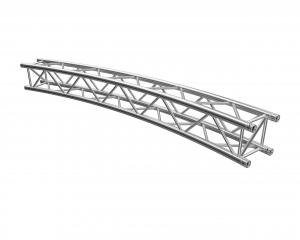

F34 PL circle piece for Ø 5,0m 90°

Global Truss GmbH

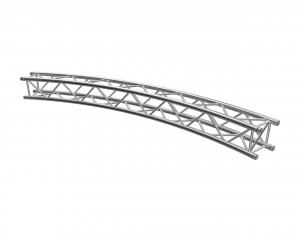

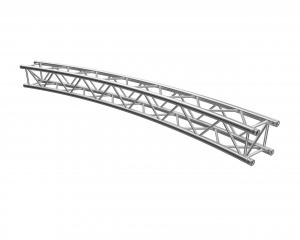

F34 PL circle piece for Ø 6,0m 60°

Global Truss GmbH

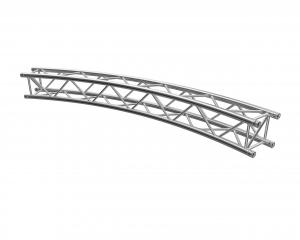

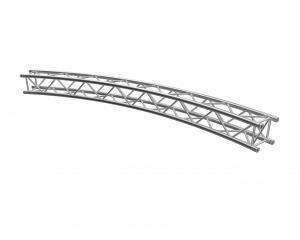

F34 PL circle piece for Ø 7,0m 45°

Global Truss GmbH
F34 PL circle piece for Ø 8,0m 45°

Global Truss GmbH
F34 PL circle piece for Ø 9,0m 45°

Global Truss GmbH
F34 PL TOP RING 100

Start 1 Ende
