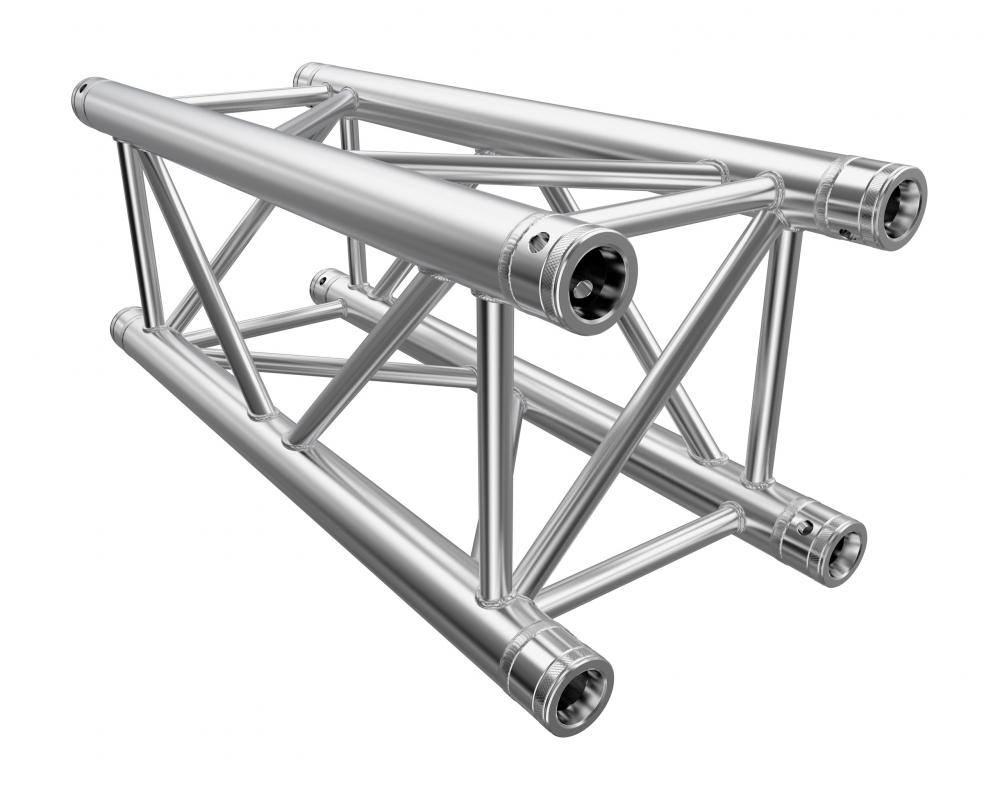

F34 PL 75cm

Global Truss GmbH

1

Technical specifications, datasheets, descriptions and tender texts for F34 PL 75cm

Info
product type
Truss 25 - 30 cm
product description
More Span and load capacity!

This F34PL global truss system offers an optimum lifting capacity and indicates a low transport volume with its lightweight construction.This Truss with 3mm wall thickness is mainly used for Dry Hire. It will be undeformed, even if hands will treat the truss very rough. Through its higher weight, there is no benefit in the statics at larger spans. With corresponding delivery time, the truss is also available powder-coated. By using appropriate Halfcoupler and Connectors, it is warranted for compatible use. To obtain more Information use the Compatibility List. This global truss system is adapted for event technology, trade fair construction and shopfitting.

Don´t Rig Shit!
order code
F34075PL
Mechanical
weight
7.00 kg
width
290.00 mm
height
290.00 mm
length
750.00 mm
Statical
max UDL 5m span
1705.00 kg
max UDL 10m span
1220.00 kg
max UDL 12m span
996.00 kg
max UDL 15m span
780.00 kg
max CPL 5m span
11114.00 kg
max CPL 10m span
575.00 kg
max CPL 12m span
475.00 kg
max CPL 15m span
370.00 kg
deflection at max UDL 5m span
16.20 mm
deflection at max UDL 10m span
96.00 mm
deflection at max UDL 12m span
138.80 mm
deflection at max UDL 15m span
218.10 mm
deflection at max CPL 5m span
16.90 mm
deflection at max CPL 10m span
73.30 mm
deflection at max CPL 12m span
107.60 mm
deflection at max CPL 15m span
172.30 mm
max span
18.00 m
