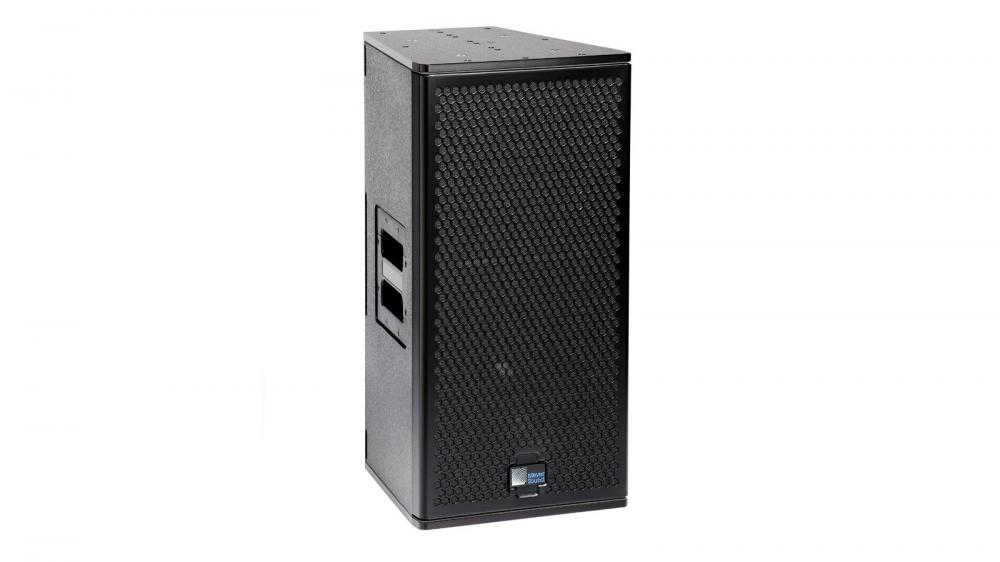

UPJ-1P
Meyer Sound Laboratories
Technical specifications, datasheets, descriptions and tender texts for UPJ-1P
| Info | |
|---|---|
| product type |
self-powered, full-range system
|
| product description |
Compact VariO™ Loudspeaker
|
| safety certificate IEC 60065:1998 EN |
yes
|
| safety certificate 60065:1998 UL |
yes
|
| safety certificate 6500/09.99 CAN/CSA |
yes
|
| safety certificate E60065-00 |
yes
|
| Electromagnetic Compatibility Certificate EN 55103-1: 1997 |
yes
|
| Electromagnetic Compatibility Certificate EN 55103-2: 1997 |
yes
|
| Audio | |
| Frequency response, from |
55 Hz
|
| Frequency response, to |
20000 Hz
|
| SPL, max |
128.00 dB
|
| Nominal power - RMS |
300 W
|
| Nominal power - Peak |
400.00 W
|
| Nominal dispersion angle, horizontal |
80.00 °
|
| Nominal dispersion angle, vertical |
40.00 °
|
| rotatable horn |
yes
|
| CMRR |
50.00 dB
|
| THD |
0.20 %
|
| Phase Response from |
750 Hz
|
| Phase Response to |
18000 Hz
|
| Crossover frequency |
2000 Hz
|
| Crossover frequency, switchable |
no
|
| Input impedance |
10000.00 ohm
|
| Connectors | |
| Input XLR |
1 pcs
|
| slave XLR |
1 pcs
|
| Electrical | |
| AC Volts, min |
100 V
|
| AC Volts, max |
240 V
|
| Battery powered |
no
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| operating temp, max |
45.00 °C
|
| Transformer tap 100V |
no
|
| power input connector |
Powercon
|
| cooling |
passive
|
| Mechanical | |
| weight |
20.87 kg
|
| width |
283.00 mm
|
| height |
570.00 mm
|
| length |
311.00 mm
|
| low frequency transducer |
1 pcs
|
| high frequency transducer |
1 pcs
|
| Voice Coil Diameter, low frequency |
10.00 "
|
| Voice Coil Diameter, high frequency |
3.00 "
|
| Diaphragm Diameter, high frequency |
3.00 "
|
| color |
black
|
| truss mountable |
with optional accessories
|
| flying frame |
yes
|
| special paint |
yes
|
