Info | |
---|---|
order code |
51841975
|
product link | |
EAN |
4026397604214
|
Product Name |

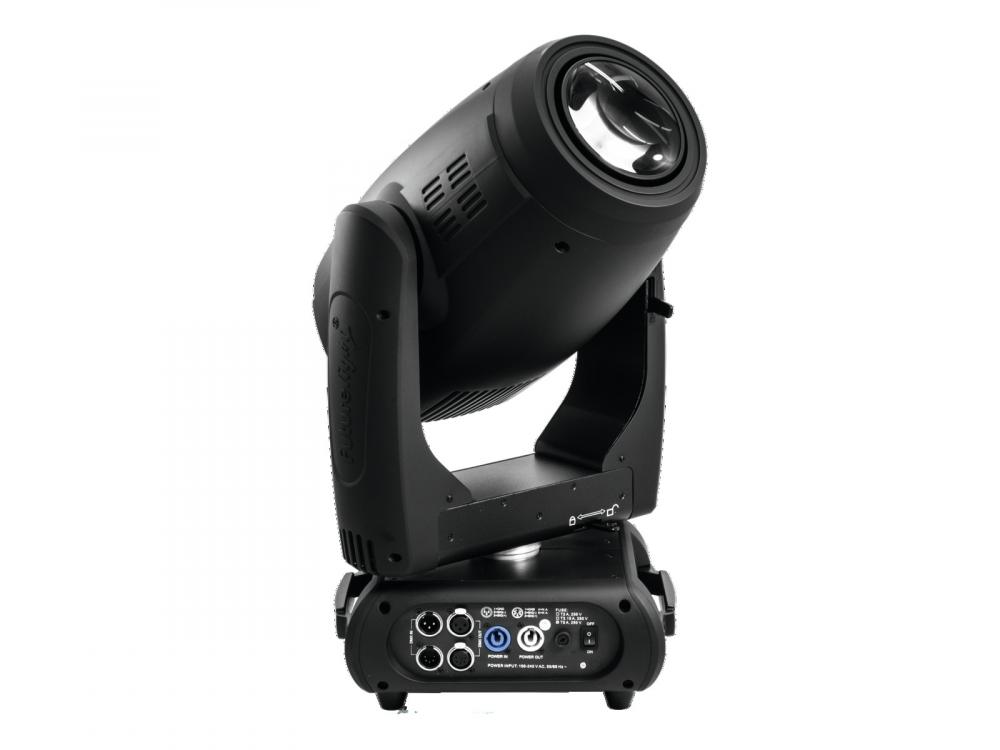

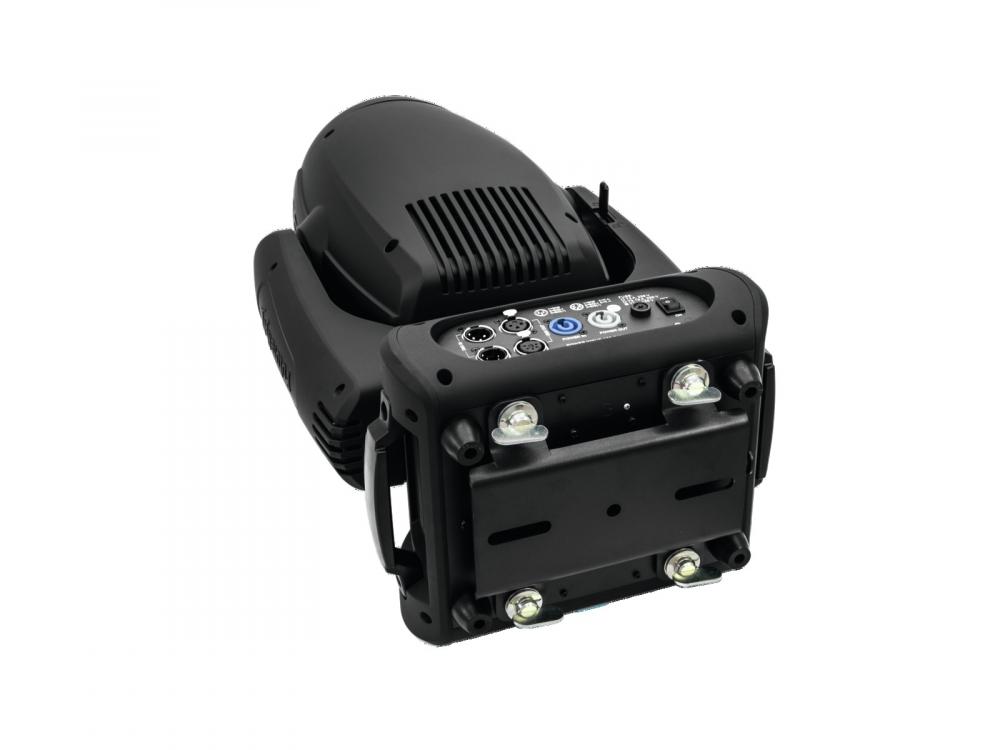

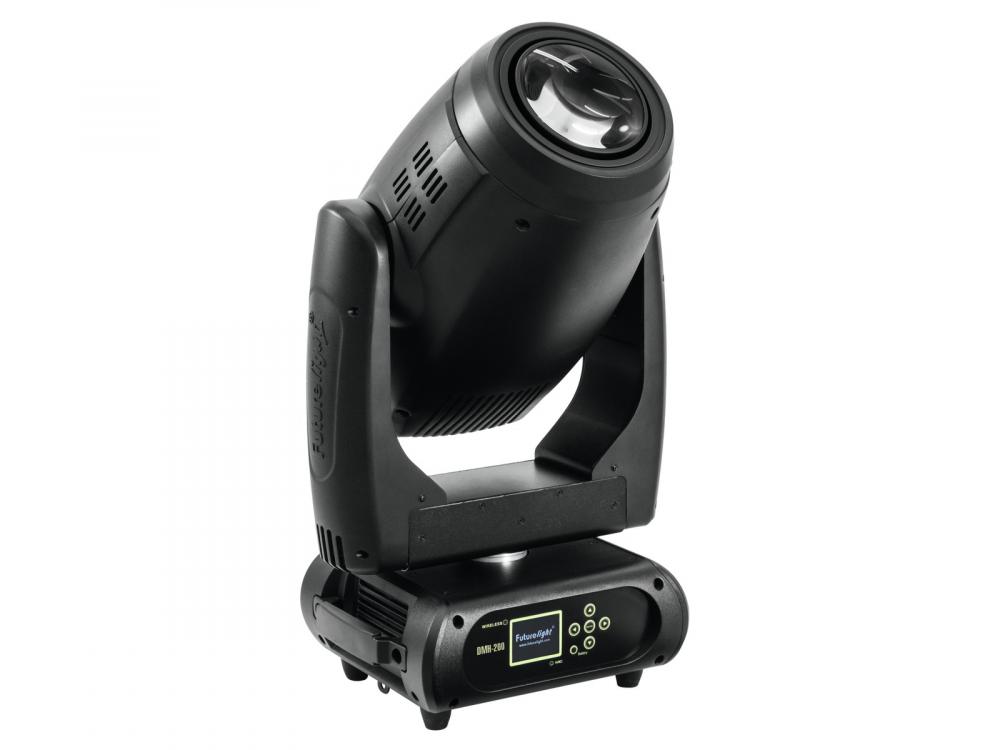

FUTURELIGHT DMH-200 LED Moving Head
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 15/17/24/25 DMX connection: 5-pin and 3-pin XLR Sound-control: via built-in microphone LED type: 200 W COB, white LED number: 1 Beam angle: 7.5-40° Color-wheel: 8 dichroic filters plus open Static gobo-wheel: 7 gobos and open Rotating gobo-wheel: 7 gobos and open Outside diameter of the gobos: 27 mm Image diameter of the gobos: 22 mm Maximum PAN-movement 630°: in 4 s Maximum TILT-movement 265°: in 2.8 s Dimensions (L x W x H): 402 x 369 x 534 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 20,5 kg Lamp type: LED lamp Cooling fan: Yes, temperature-controlled IP classification: IP20 Power consumption: 270 W Beam angle: 7,5 - 40° Height: 53,4 cm Depth: 25 cm Width: 40,2 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 265° Pan tilt feedback Equipment: Gobos rotating; Gobos static; Prisma 3-fold; Iris; Focus motor-driven; Zoom motor-driven; Frost filter Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) DMX channels: 15; 17; 24; 25 LED: 1 x COB (chip-on-board) 200 W Color wheel Power supply: 110-240 V AC, 50/60 Hz |
main features |
PRO beam/wash Moving Head with 200 W COB LED and large zoom -Equipped with a powerful white 200 W COB LED -Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden) -Supports RDM (Remote Device Management) -15, 17, 24 or 25 DMX channels selectable -Effect wheel with rotating 3-facet prism -Color wheel with 8 different dichroic color filters plus white -Rainbow effect with adjustable speed in both directions -Gobo wheel with 7 rotating gobos plus open -All rotating gobos can be interchanged -Slot-in gobo system for exchanging gobos without tools -With gobo shake function -Gobo wheel 2 with 7 static gobos plus open -Exact positioning via 16 bit PAN/TILT movement resolution -Motorized focus -Autofocus -Motorized zoom with 7.5 - 40° beam angle -Steplessly adjustable iris -Stepless frost-filter -Dimmer -Strobe effect with adjustable speed -Random strobe effect -Automatic position correction -PAN angle switchable between 540° and 630° -Sound-controlled via built-in microphone -Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset -DMX-controlled operation or stand-alone operation with Master/Slave function -The scenes can be modified via the Control Board or via an external controller and loaded into the memory -Number of scenes can be changed individually -Software upload by optional accessories via DMX link -Power connection via Neutrik PowerCon jack and included power cable -Feed-through output allows to power up to 8 devices -ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included) -Switch-mode power supply for operation between 100 and 240 volts -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect; Single Beam -Projection: flicker-free -Power out: 1 x Powercon (Power out) gray, mounting version -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Control: WDMX upgradeable (optional); Stand-alone; DMX; RDM -LED: 1 x COB (chip-on-board) 200 W Color wheel |
Connectors | |
DMX connector types |
both 3/5pin
|
Control | |
control channels, min |
15 ch
|
control channels, max |
25 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
200.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
Powercon
|
cooling |
active
|
Mechanical | |
weight |
20.50 kg
|
width |
369.00 mm
|
height |
534.00 mm
|
length |
402.00 mm
|
pan range |
540 °
|
tilt range |
265 °
|
Optical | |
beam angle/zoom, min |
40.00 °
|
beam angle/zoom, max |
7.50 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
200.00 W
|
optics/projection type |
Spotlight
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
7 pcs
|
number of rotating gobos |
7 pcs
|
prism |
yes
|
