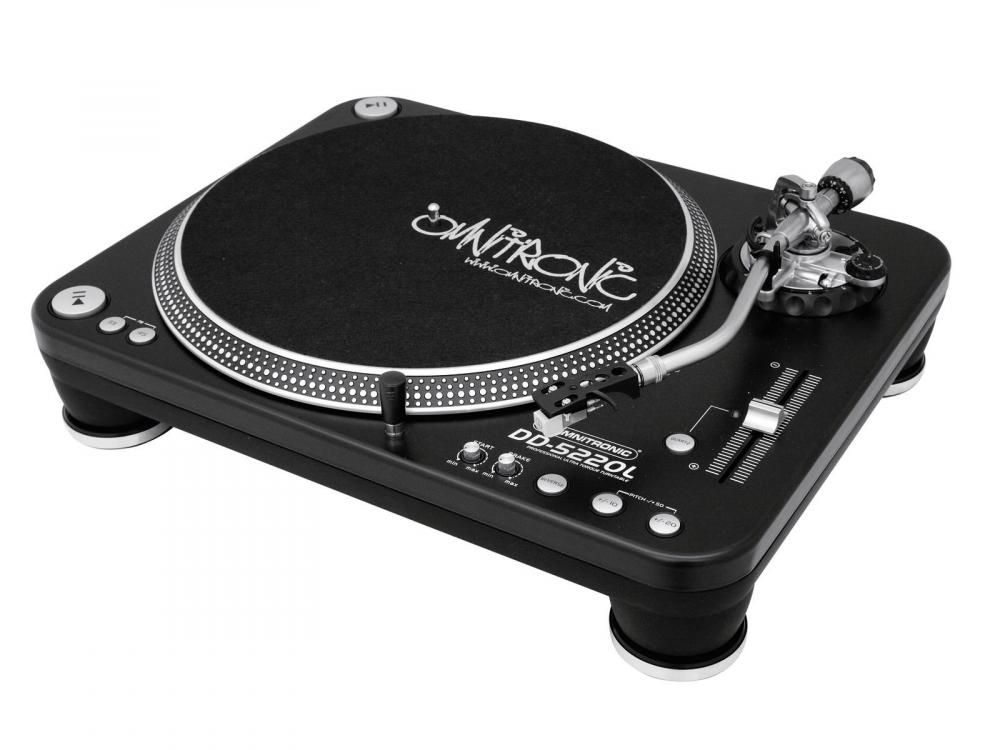

OMNITRONIC DD-5220L Turntable bk

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC DD-5220L Turntable bk

Info
order code
10603003
product link
EAN
4026397433920
Product Name
OMNITRONIC DD-5220L Turntable bk
technical overview
Power supply: 230 V AC, 50 Hz
Type: 3-speed full manual turntable
Drive method: Quartz-controlled direct drive
Motor: Brushless DC motor
Turntable platter: d=332 mm, 1400 g
Speed: 33 1/3 RPM, 45 RPM and 78 RPM
Speed change time:
Rotation-direction: Forwards/backwards
Pitch adjustment: ±10 %, ±20 %, ±50 %
Initial torque: >2.1 kg/cm
Wow and flutter:
Start time:
Brake: Electronic brake
Stop time:
Rumble: 50 dB DIN B
Tonearm: S-shape with Cardan's suspension
Tonearm length: 234 mm
Adjustable tonearm height: 8-10.5 mm
Overhang: 20 mm
Adjustable stylus pressure 0-4 g
Anti-skating range: 0-7 g

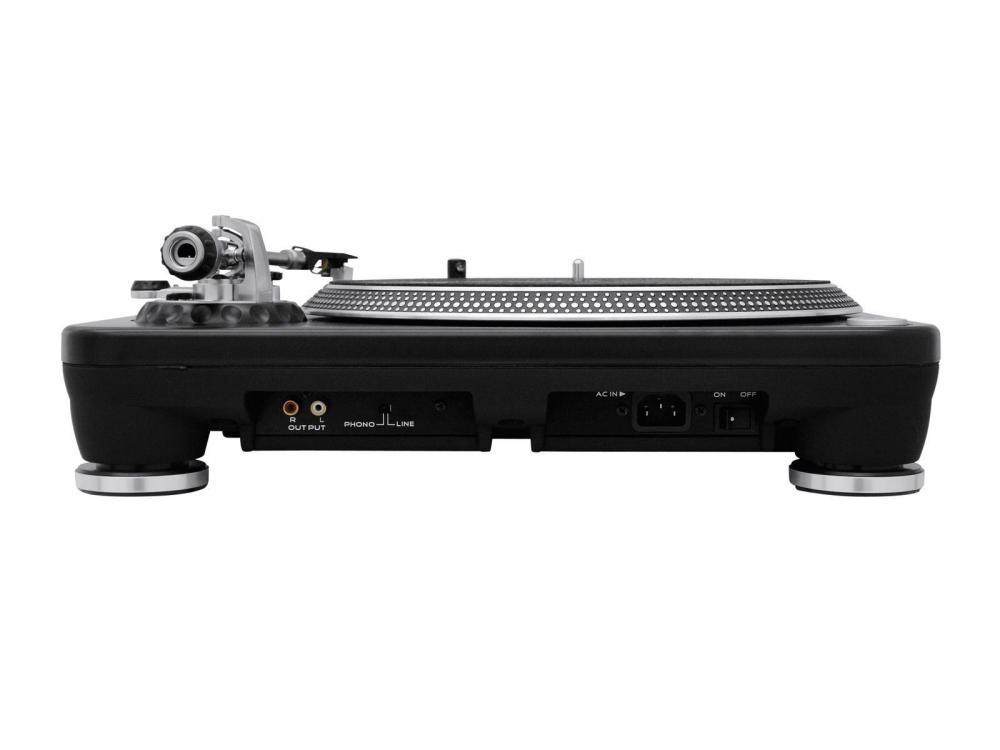

Connectors: 1 x stereo RCA
Line/phono, switchable
Dimensions: 450 x 352 x 148 mm
Weight: 11 kg
Power consumption: 15,00 W
Drive type: Quarz-controlled direct drive
Frequency range: 20 - 20000 Hz
Height: 15,6 cm
Depth: 35,3 cm
Width: 45 cm
Power connection: Fix Power supply cord with Euro plug (M)
Power supply: 230 V AC, 50 Hz
main features
Direct drive DJ turntable "Ultra Torque" with switchable phono/line output
-Direct drive high-torque motor
-Quartz-controlled for highest speed precision
-3 speeds (33 1/3, 45 and 78 RPM), pitch control ±10 %, ±20 %, ±50 %
-Selectable quartz-controlled pitch lock
-Quick start
-Adjustable start/stop time
-2 large start/pause buttons
-Reverse run
-Plug-in LED target lamp
-Adjustable anti-skating
-Tone arm height adjustable
-Shock-absorbing and adjustable feet
-Switchable phono/line output
-Extremely resonance-free due to optimally combined components
-Platter and motor are directly connected for highest stability
-Recessed connections for easy case mounting
-Delivery includes headshell, slipmat and RCA cable
-Dust cover and pick-up system optionally available
-Power connection: Fix Power supply cord with Euro plug (M)
Audio
Frequency response, from
20 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
15.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
power input connector
Europlug
Mechanical
weight
11.00 kg
width
352.00 mm
height
148.00 mm
length
353.00 mm
