Info | |
---|---|
order code |
42109630
|
product link | |
EAN |
4026397599046
|
Product Name |

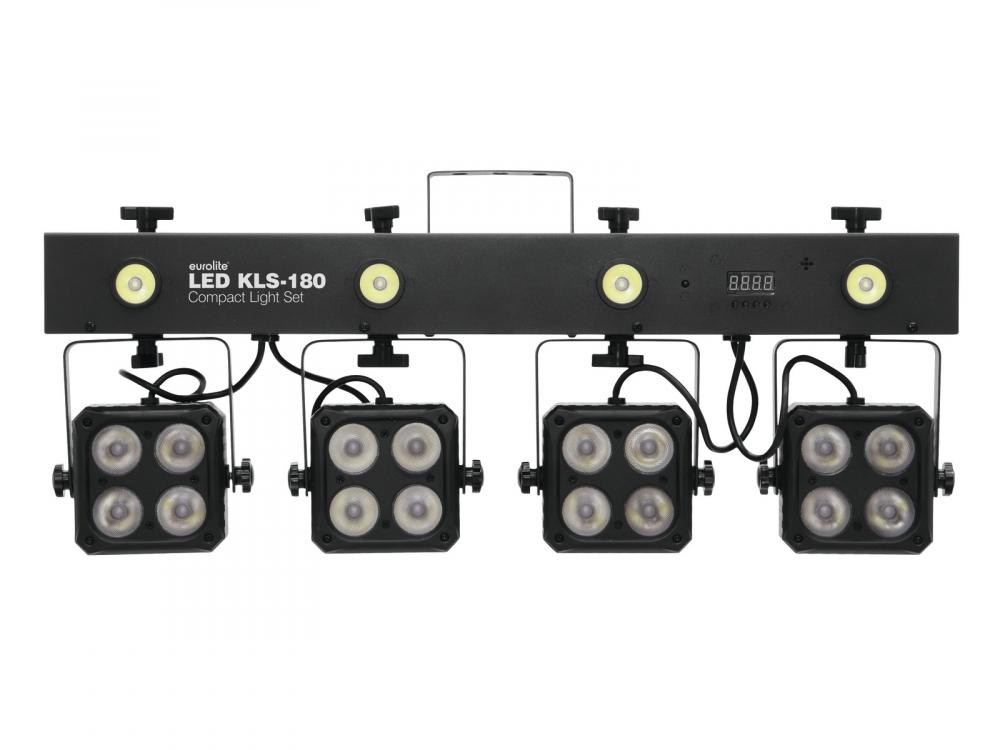

EUROLITE LED KLS-180 Compact Light Set
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 3/4/8/21 DMX connection: 3-pin XLR QuickDMX connection: 5-pin XLR Sound-control: via built-in microphone LEDs spot: 16 x 8 W RGBW (4in1) LEDs strobe: 4 x 1 W white Beam angle: 9° Dimensions (W x D x H): 600 x 140 x 230 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP20 Lamp type: LED lamp Weight: 4,85 kg Cooling fan: No, cooling by convection Power consumption: 80 W Laser class: Without laser Beam angle: 9° Height: 23 cm Depth: 14 cm Width: 64 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 3; 4; 8; 21 LED: 4 x high-power 1 W CW (homogenous color mix); 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |

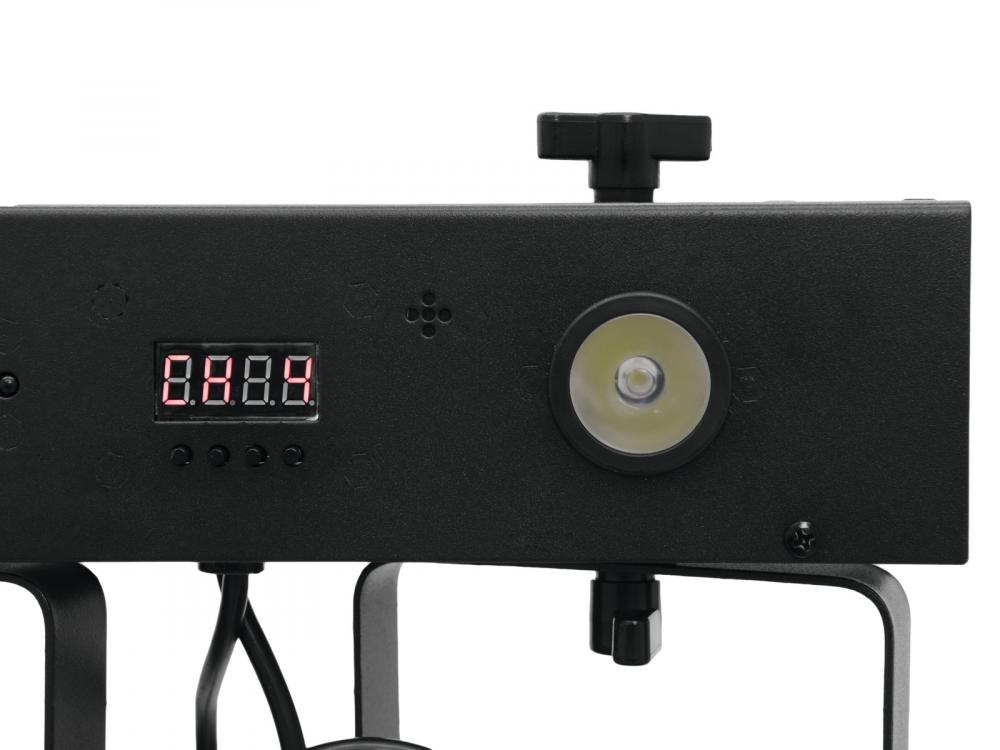

Bar with 4 RGBW spots and 4 white strobe LEDs, with 5-pin QuickDMX connector -Crossbar with integrated DMX control unit and stand sleeve -Ultra-light ideally suited for mobile use -Ideal for bands, stages or solo entertainers -Suited for installation on a speaker stand (not included) or truss -Comes pre-assembled with practical transport bag -4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix -Strobe effect with 4 white 1 W LEDs -Movable and tiltable spotlights -Via DMX, each spot can be individually controlled -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-control via built-in microphone, microphone sensitivity adjustable -Supports QuickDMX - the wireless DMX-system from Eurolite -Built-in phantom fed socket for QuickDMX receiver (see accessories) -DMX512 control via any commercial DMX controller (occupies 21 channels) -3, 4, 8 or 21 DMX channels selectable -Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation -Addressing and setting via control panel with 4-digit LED display -Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery -Black lacquered metal version with movable mounting bracket -Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation -Switch-mode power supply for operation between 100 and 240 volts -Feed-through output allows to power up to 8 devices -Ready for connection via IEC power cord with safety plug -Case color: Black -Strobe color: White -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Power out: 1 x IEC connector (F) mounting version -Control: IR remote control (provided); QuickDMX 5-pin; Stand-alone; DMX -LED: 4 x separate controlling 4 x high-power 1 W CW (homogenous color mix); 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
3 ch
|
control channels, max |
21 ch
|
Electrical | |
power consumption watt, max |
80.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
passive
|
Mechanical | |
weight |
4.85 kg
|
width |
600.00 mm
|
height |
230.00 mm
|
length |
140.00 mm
|
Optical | |
beam angle/zoom, min |
9.00 °
|
beam angle/zoom, max |
9.00 °
|
light source |
LED
|
