Info | |
---|---|
order code |
51914109
|
product link | |
EAN |
4026397589764
|
Product Name |

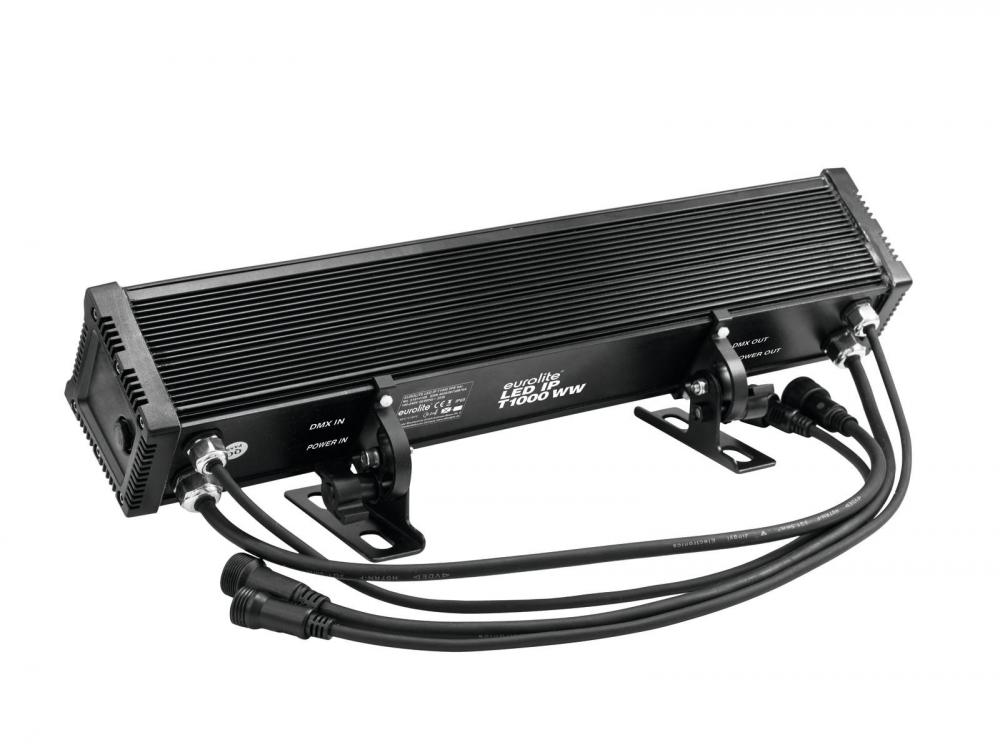

EUROLITE LED IP T1000 WW Bar
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Protection grade: IP65 DMX channels: 1/3 DMX connection: 3-pin screw connector Flash-rate: 18 Hz LED type: 5 W WW LED number: 8 Color temperature: 3000 K Beam angle: 10°x40° Dimensions (L x W x H): 524 x 184 x 95 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting IP classification: IP65 Beam angle: 10°; 40° Cooling fan: No, cooling by convection Weight: 4,2 kg Lamp type: LED lamp Power consumption: 25 W Depth: 16 cm Length: 52,5 cm Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) Height: 9,5 cm DMX channels: 1; 3 LED: 8 x high-power 5 W WW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Weather-proof bar (IP65) with 8 x 5 W warm white LED, length 52 cm -Equipped with 8 warm white 5 W CREE LEDs -1 or 3 DMX channels selectable -For architectural lighting -Special lenses offer a larger beam angle horizontally than vertically: 10x40° -Suitable for external use (IP65) -Fully convection cooled, no fan -Dimmer -Different dimmer curves and dimmer speed (step response) adjustable -Strobe effect with adjustable speed -Random strobe effect -DMX-controlled operation or stand-alone operation with Master/Slave function -Addressing and setting via Control Board with LED display and four operating buttons -Locking possibility at the brackets -Switch-mode power supply for operation between 100 and 240 volts -DMX control via every standard DMX controller -Feed-through output allows to power up to 8 devices -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Mains Input Socket (M) 3-pin screw plug connector (M) IP Power supply cord with safety plug (M) (provided) -Power out: 1 x 3-pin screw plug connector (F) IP -Control: Stand-alone; DMX -LED: 8 x high-power 5 W WW (homogenous color mix) |
Connectors | |
DMX connector types |
other
|
Control | |
control channels, min |
1 ch
|
control channels, max |
3 ch
|
Electrical | |
power consumption watt, max |
25.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
65
|
cooling |
passive
|
Mechanical | |
weight |
4.20 kg
|
width |
184.00 mm
|
height |
95.00 mm
|
length |
160.00 mm
|
Optical | |
light source |
LED
|
light source color temperature |
3000 K
|
Number of light sources |
8 pcs
|
wattage per light source |
5.00 W
|
WARM WHITE LED source |
yes
|
shutter/strobe frequency, max |
18 Hz
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00101996.pdf |
