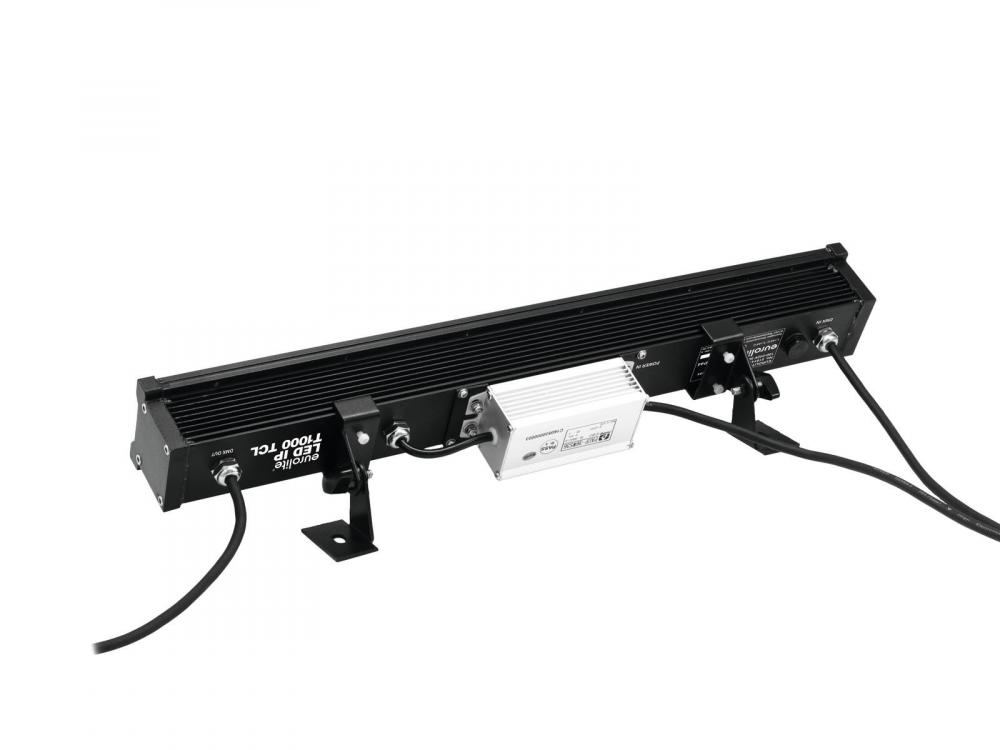

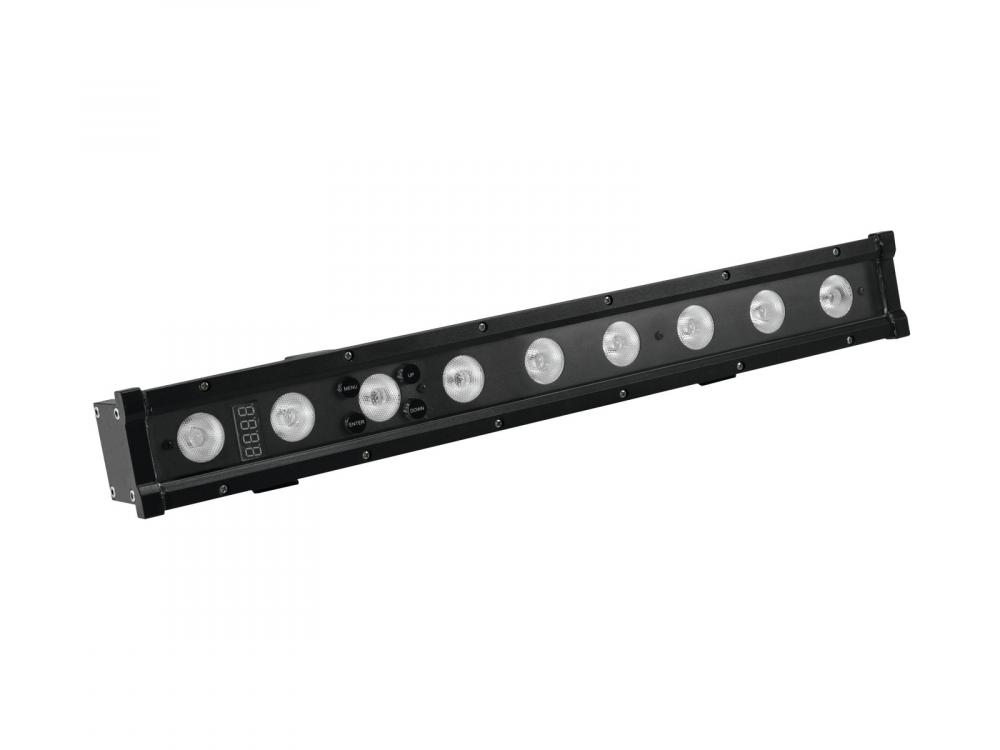

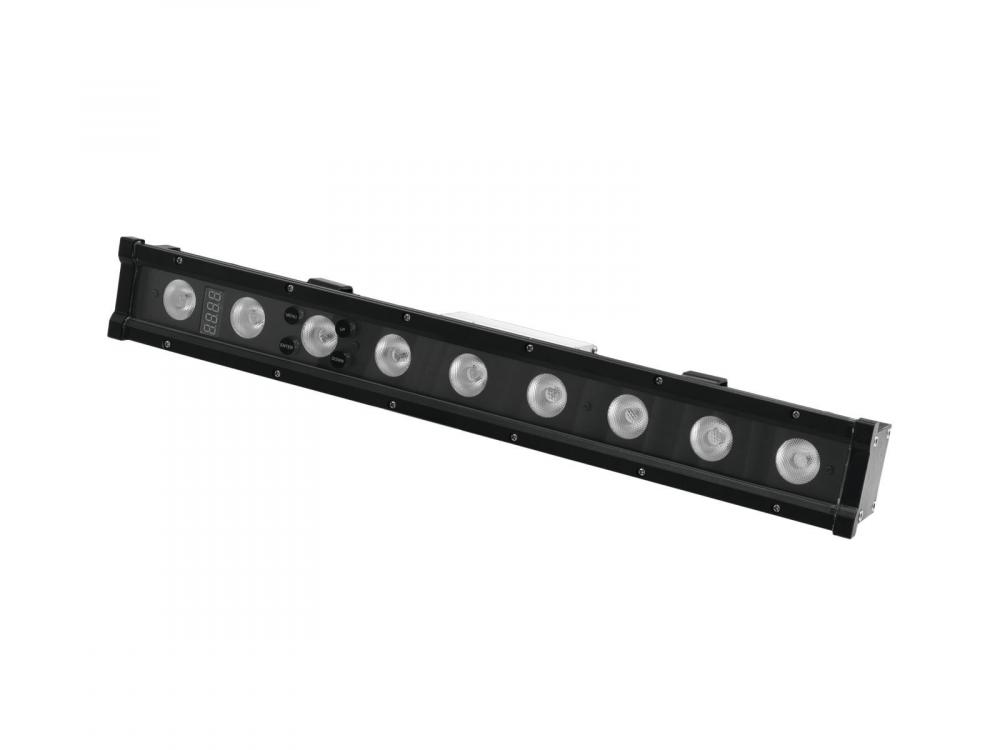

EUROLITE LED IP T1000 TCL Bar

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED IP T1000 TCL Bar

Info
order code
51914123
product link
EAN
4026397591644
Product Name
EUROLITE LED IP T1000 TCL Bar
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Protection grade: IP44
Beam angle: 15°
LED type: 3 W RGB (3in1)
LED number: 9
DMX channels: 2x3/4/5/6/9
DMX connection: 3-pin screw connector
Flash-rate: 18 Hz
Dimensions (L x W x H): 516 x 124 x 69 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP44
Cooling fan: No, cooling by convection
Weight: 2,5 kg
Lamp type: LED lamp
Power consumption: 30 W
Beam angle: 15°
Depth: 11 cm
Length: 51,5 cm
Power connection: Fix Power supply cord with safety plug (M)
Height: 7,2 cm
DMX channels: 4; 5; 6; 9; 3
LED: 9 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Weather-proof bar (IP44) with 9 x 3 W 3in1 LED (RGB), 52 cm
-Equipped with 9 high-power 3 W 3in1 LEDs in the colors red, green and blue
-2 x 3, 4, 5, 6 or 9 DMX channels selectable
-For architectural lighting
-Suitable for external use (IP44)
-Fully convection cooled, no fans

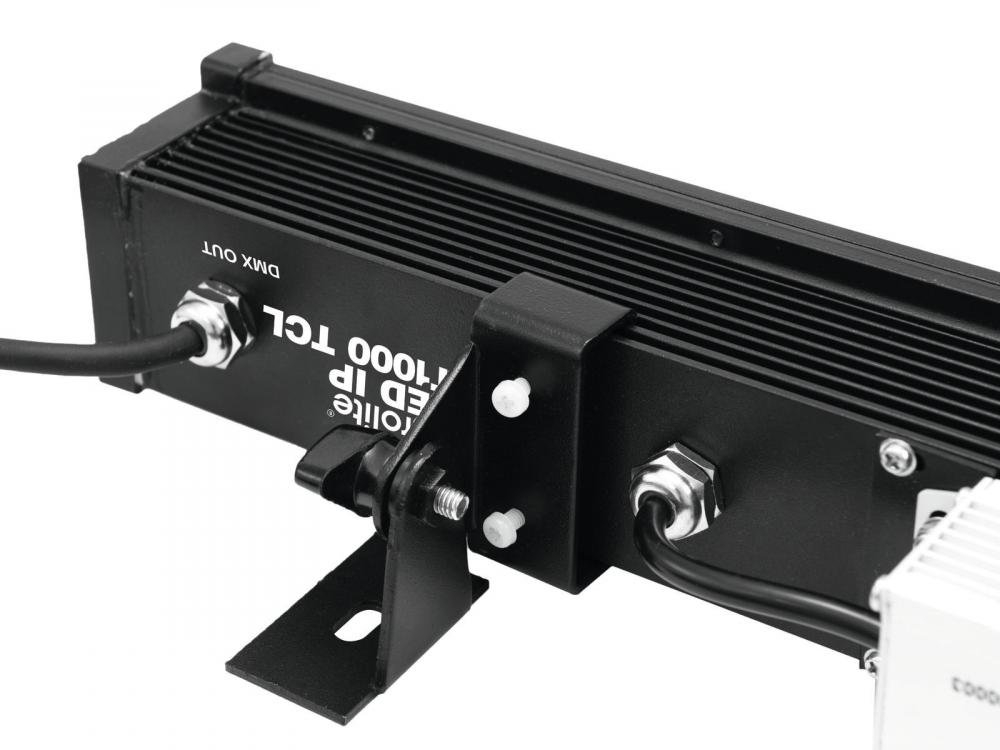

-For permanent installation, mounting brackets included
-Stepless RGB color mixture
-Dimmer
-Different dimmer curves and dimmer speed (step response) adjustable
-Strobe effect with adjustable speed
-Random strobe effect
-Preset colors and color temperatures
-Internal programs
-Programmable color change speed
-Programmed and programmable chaser
-DMX-controlled operation or stand-alone operation with Master/Slave function

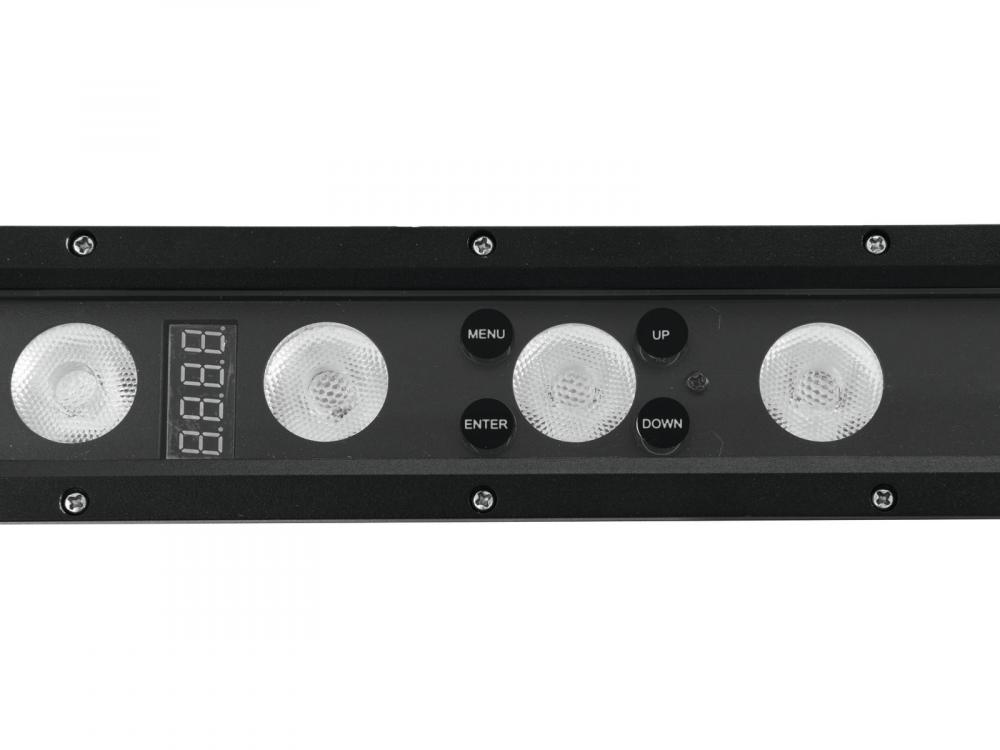

-Addressing and setting via Control Board with LED display and four operating buttons
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection with power cord and safety-plug
-DMX control via every standard DMX controller
-Case color: Black
-Effect: Strobe effect
-Projection: flicker-free
-Power connection: Fix Power supply cord with safety plug (M)
-Control: Stand-alone; DMX
-LED: 9 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Connectors
DMX connector types
other
Control
control channels, min
4 ch
control channels, max
3 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
44
power input connector
fixed
cooling
passive
Mechanical
weight
2.50 kg
width
124.00 mm
height
72.00 mm
length
50.00 mm
Optical
beam angle/zoom, min
15.00 °
beam angle/zoom, max
15.00 °
light source
LED
Number of light sources
9 pcs
wattage per light source
3.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
18 Hz

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00101922.pdf
