product details: EUROLITE LED Pixel Tube 360° clear 1.5m -

Manufacturer

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn
Germany

Max Albert
max.albert@steinigke.de

+49 0931 4061 678

Info
order code	51928793
product link	product on manufacturer website
EAN	4026397502954

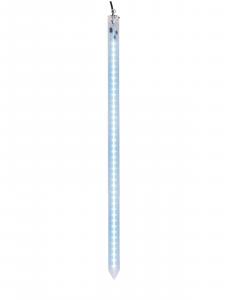

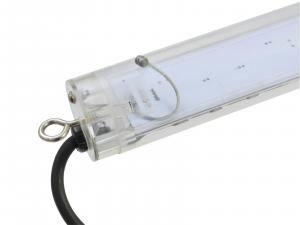

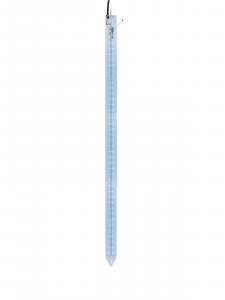

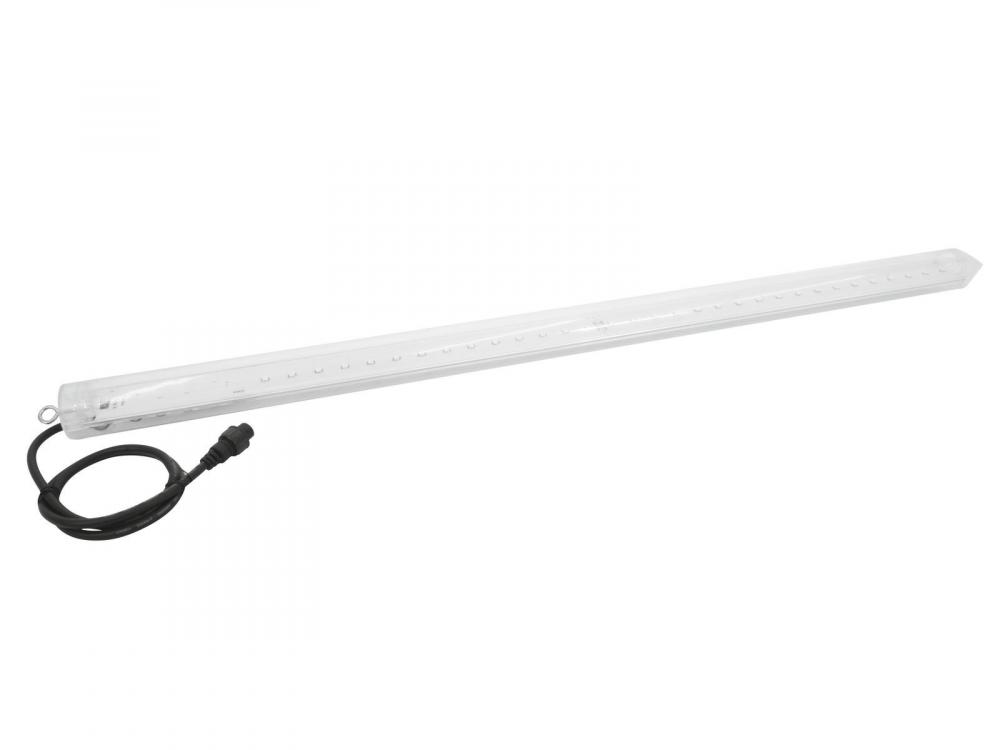

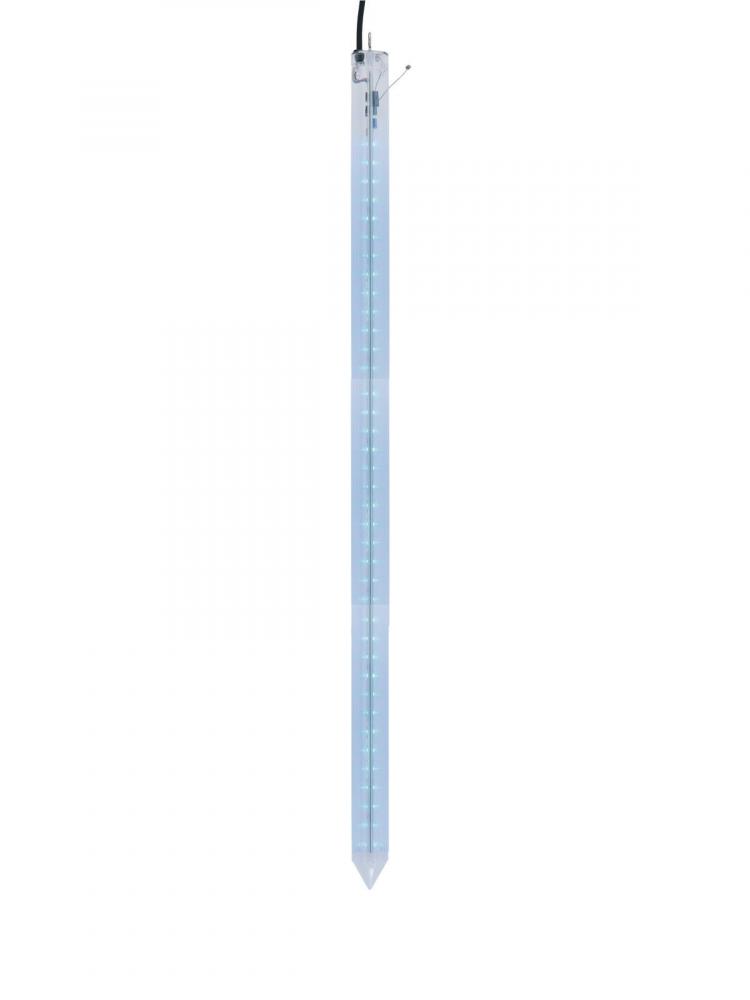

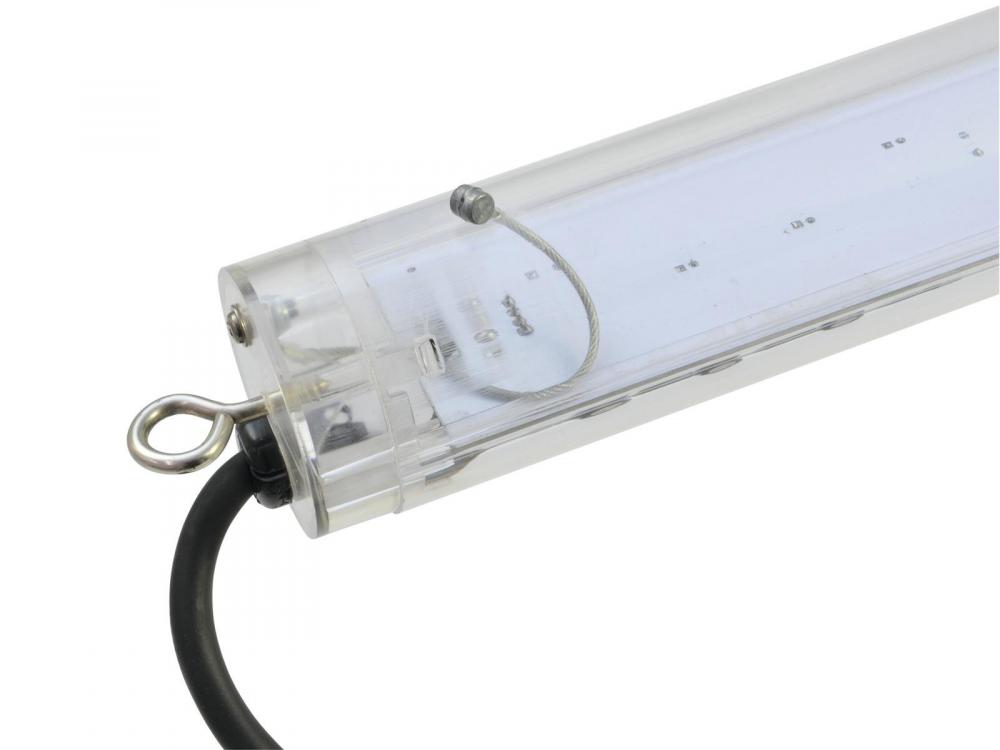

Product Name	EUROLITE LED Pixel Tube 360° clear 1.5m
technical overview	Power supply: 24 V DC LED type: SMD TCL 5050 LED number: 104 Beam angle: 360° Dimensions (L x W x H): 1525 x 50 x 50 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Beam angle: 360° Power consumption: 18,00 W Weight: 0,7 kg Length: 153 cm Diameter: 5 cm LED: 104 x SMD 5050 3in1 TCL RGB (homogenous color mix) Power supply: 24 V DC

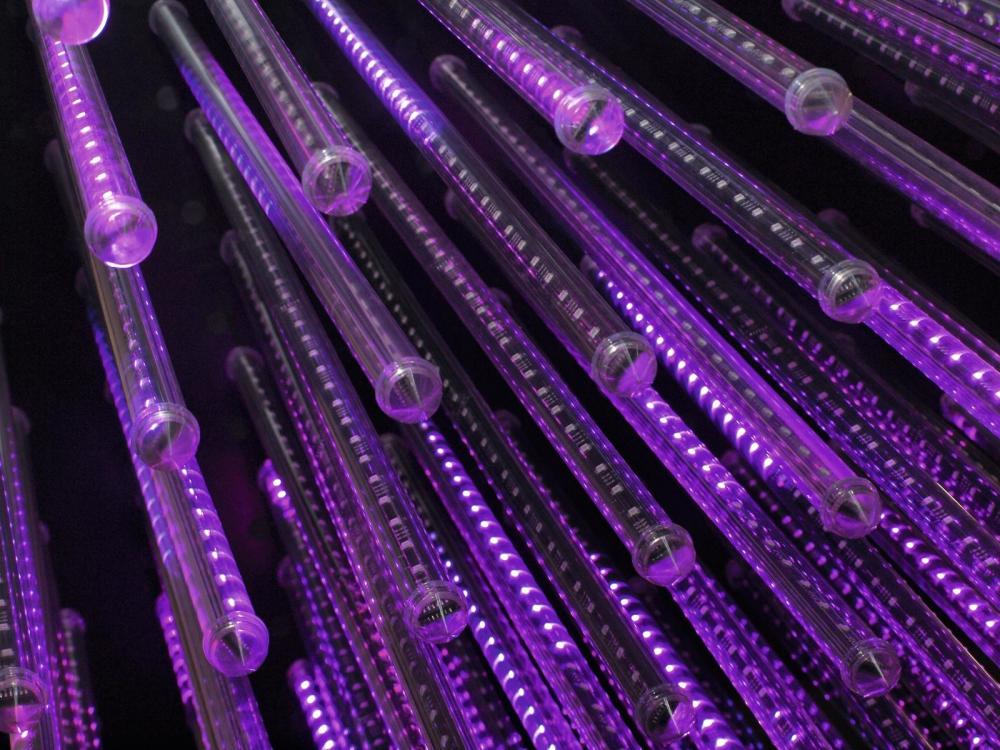

main features	DMX LED tube for truss installation or ceilings -Lightweight plastic tube -360° beam angle -Equipped with 104 TCL LEDs, every tube is divided in 26 pixels with 4 LEDs each -Functions: static colors, RGB color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave -Controllable via EUROLITE LED PSU-24V/4 DC controller; needed for operating the unit and not included in the delivery -4 LED Pixel Tubes 360° can be used with one controller -Ideal for discotheques and clubs -Control: ArtNet; Stand-alone; DMX -LED: 104 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Electrical
power consumption watt, max	18.00 W
DC Volts, min	24 V
DC Volts, max	24 V
Mechanical
weight	0.70 kg
width	50.00 mm
height	50.00 mm
length	1530.00 mm
outer diameter	50 mm
Optical
beam angle/zoom, min	360.00 °
beam angle/zoom, max	360.00 °
Number of light sources	104 pcs
multichip LED	yes
RED light source	yes
GREEN light source	yes
BLUE light source	yes

Collect interesting products in a list and download tender specifications at once

Downloads

Bedienungsanleitung
00080926.pdf
