Info | |
---|---|
order code |
51702037
|
product link | |
EAN |
4026397556025
|
Product Name |
EUROLITE Dynamic Fog 700 Fog Machine
|
technical overview |
Power supply: 230 V AC, 50 Hz Output distance: 2.5 m Warm-up time: 3 min. Output volume: 230 m³/min. Tank capacity: 0.8 l DMX connection: 3-pin XLR Dimensions (L x W x H): 320 x 250 x 215 mm Power consumption: 700 W Weight: 3,85 kg IP classification: IP20 Color: Black Height: 21,5 cm Depth: 32 cm Width: 25 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 1 Power supply: 230 V AC, 50 Hz |
main features |

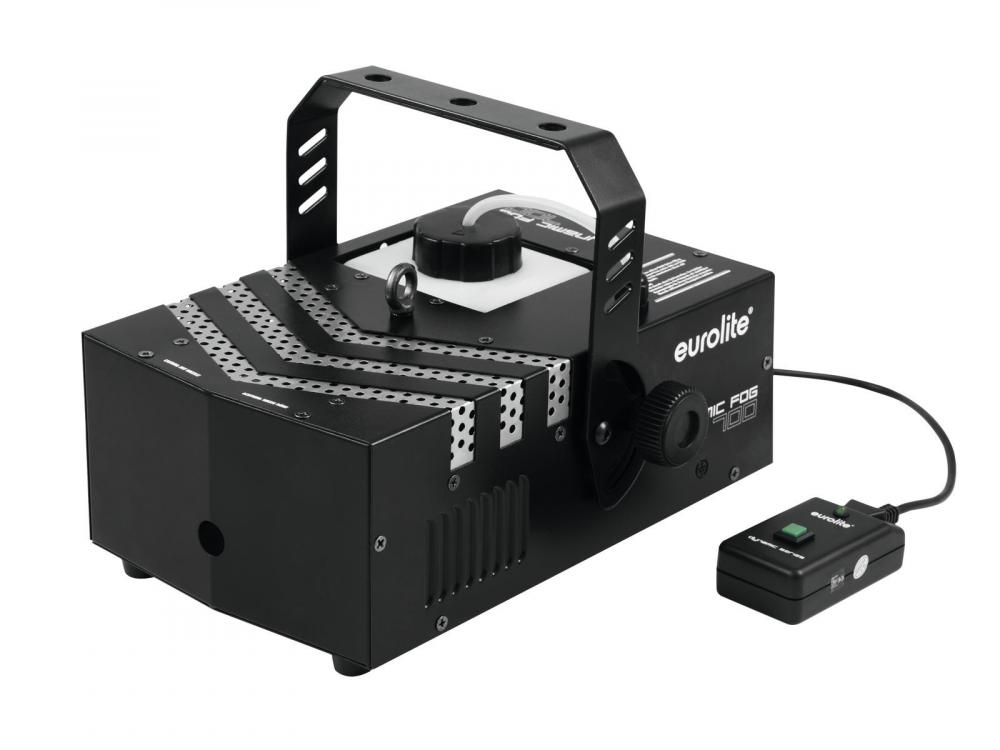

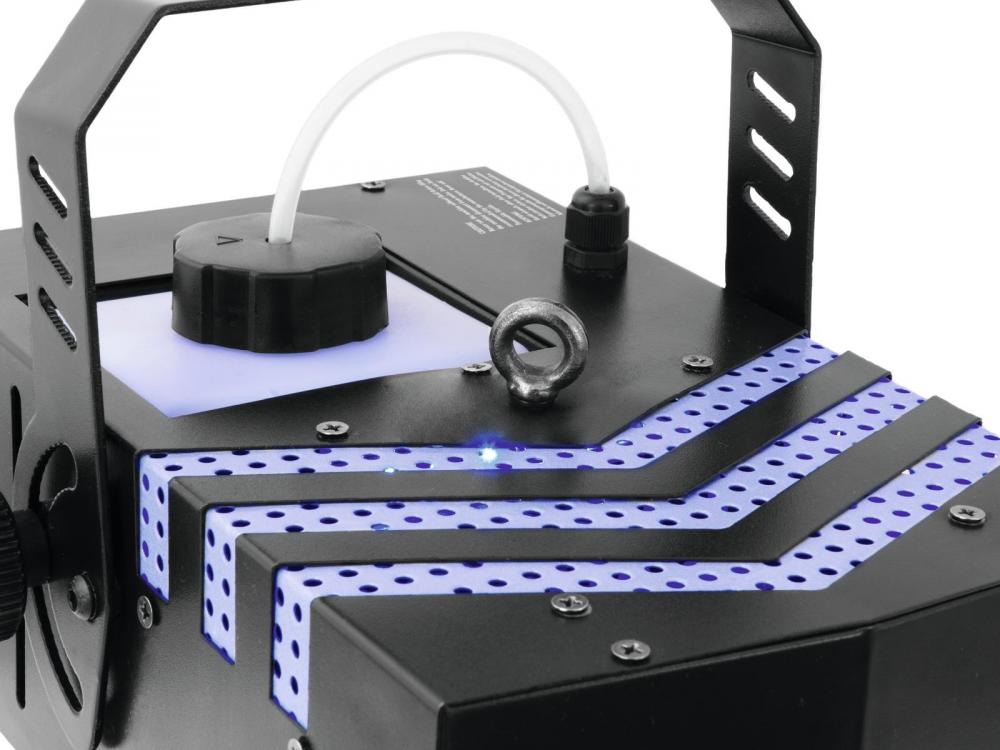

Compact DMX fog machine with 700 W power -Compact fog machine with high output volume: 230 m³/min. -Ideal for accentuating light and laser beams -Concentrated and steady fog output -Control via integrated DMX interface -Manual activation via supplied cable remote control -Temperature control via thermo switch -Fan grille with blue LED illumination, switchable -Operates on standard waterbased fluid -Removable tank with level indication -Metal housing with movable mounting bracket and safety eyelet -Smoke-output: ca. 2,5 m -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Wired remote control; DMX |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
1 ch
|
control channels, max |
1 ch
|
*# category-effect | |
output volume |
230 m3/min
|
tank size |
8.00 l
|
Electrical | |
power consumption watt, max |
700.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
3.85 kg
|
width |
250.00 mm
|
height |
215.00 mm
|
length |
320.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00094157.pdf |
