| Info | |
|---|---|
| order code |
51918701
|
| product link | |
| EAN |
4026397445077
|
| Product Name |

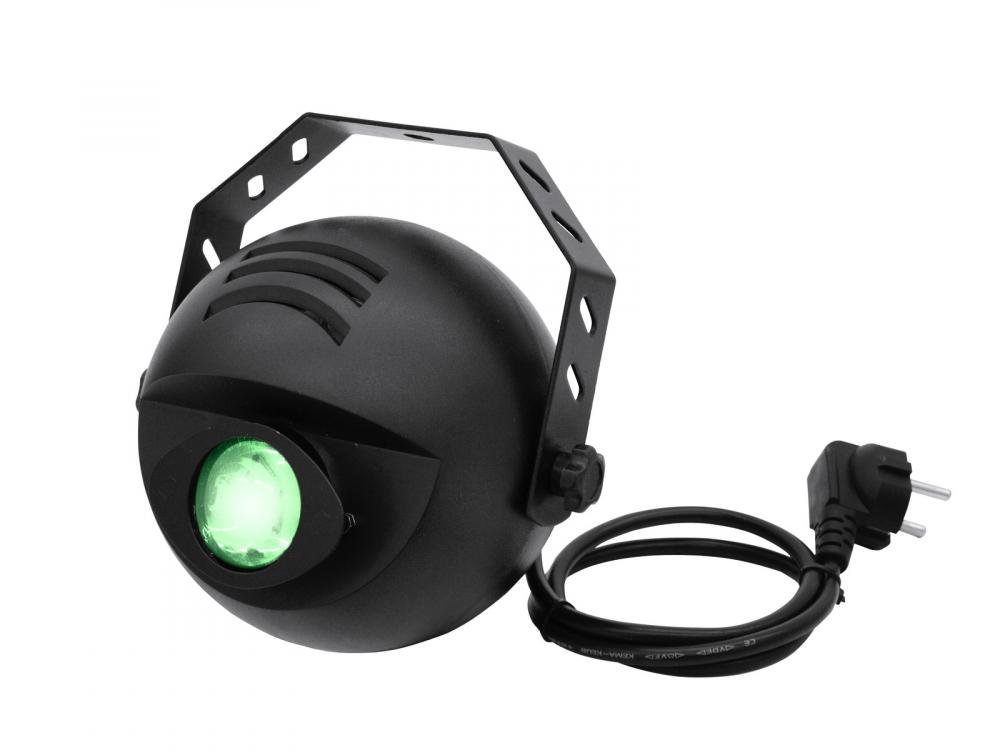

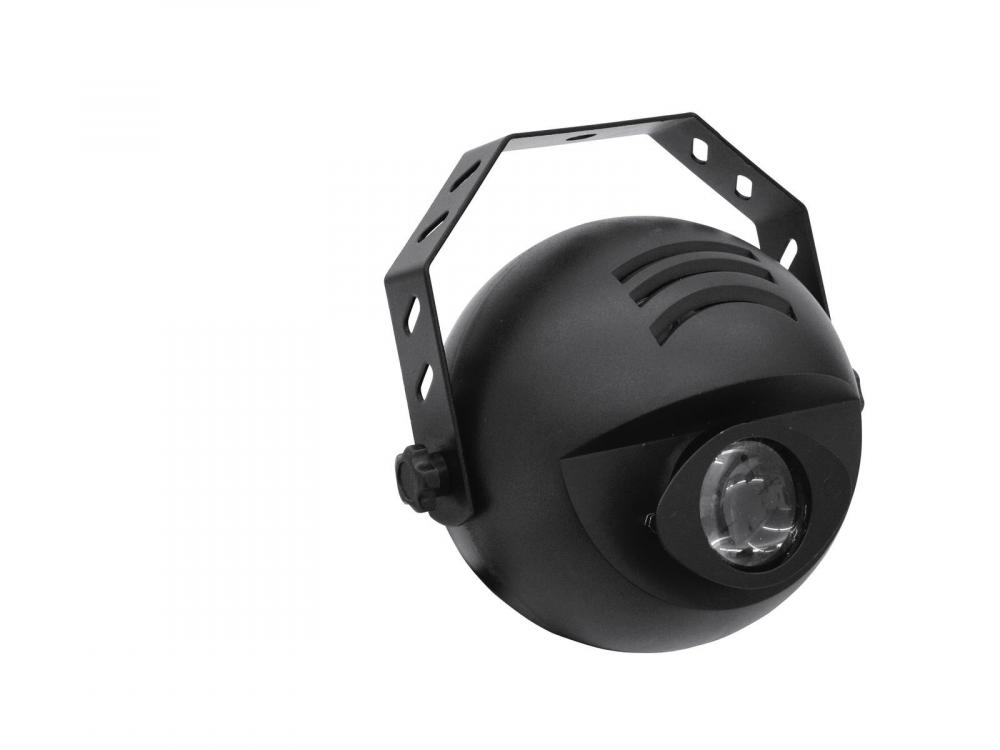

EUROLITE LED H2O Water Effect IR
|
| technical overview |
Power supply: 230 V AC, 50 Hz LED type: 9 W RGB (3in1) LED number: 1 Beam angle: 35° Dimensions: 135 x 165 x 170 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 0,5 kg Beam angle: 35° Power consumption: 9 W Cooling fan: No, cooling by convection IP classification: IP20 Lamp type: LED lamp Height: 17 cm Depth: 13,5 cm Width: 16,5 cm Laser class: Without laser Power connection: Fix Power supply cord with safety plug (M) LED: 1 x high-power 9 W 3in1 TCL RGB Power supply: 230 V AC, 50 Hz |
| main features |
Compact water effect with RGB color mixing and infrared remote-control -Built-in effect wheel offers a lovely water effect with RGB color mix -For illuminating mirror balls, as decoration for display windows and as party room decoration -Control via IR remote -Infrared-remote control in credit card format included in delivery -1.3 m jack-jack cable with 3.5 mm stereo jack plugs for connecting one spot with another included in the delivery -Color change, color fade, strobe effect, and static colors selectable -Case color: Black -Effect: Single Beam -Power connection: Fix Power supply cord with safety plug (M) -Control: IR remote control (provided) -LED: 1 x high-power 9 W 3in1 TCL RGB |
| Electrical | |
| power consumption watt, max |
9.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| IP rating |
20
|
| power input connector |
fixed
|
| cooling |
passive
|
| Mechanical | |
| weight |
0.50 kg
|
| width |
165.00 mm
|
| height |
170.00 mm
|
| length |
135.00 mm
|
| Optical | |
| beam angle/zoom, min |
35.00 °
|
| beam angle/zoom, max |
35.00 °
|
| Number of light sources |
1 pcs
|
| wattage per light source |
9.00 W
|
| multichip LED |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
